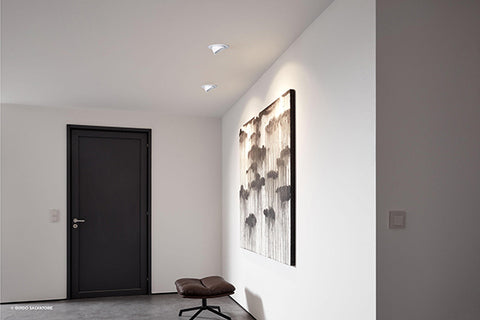

Trunk

Name: Trunk
Brand: LYS
Availability: InStock

01.200A01

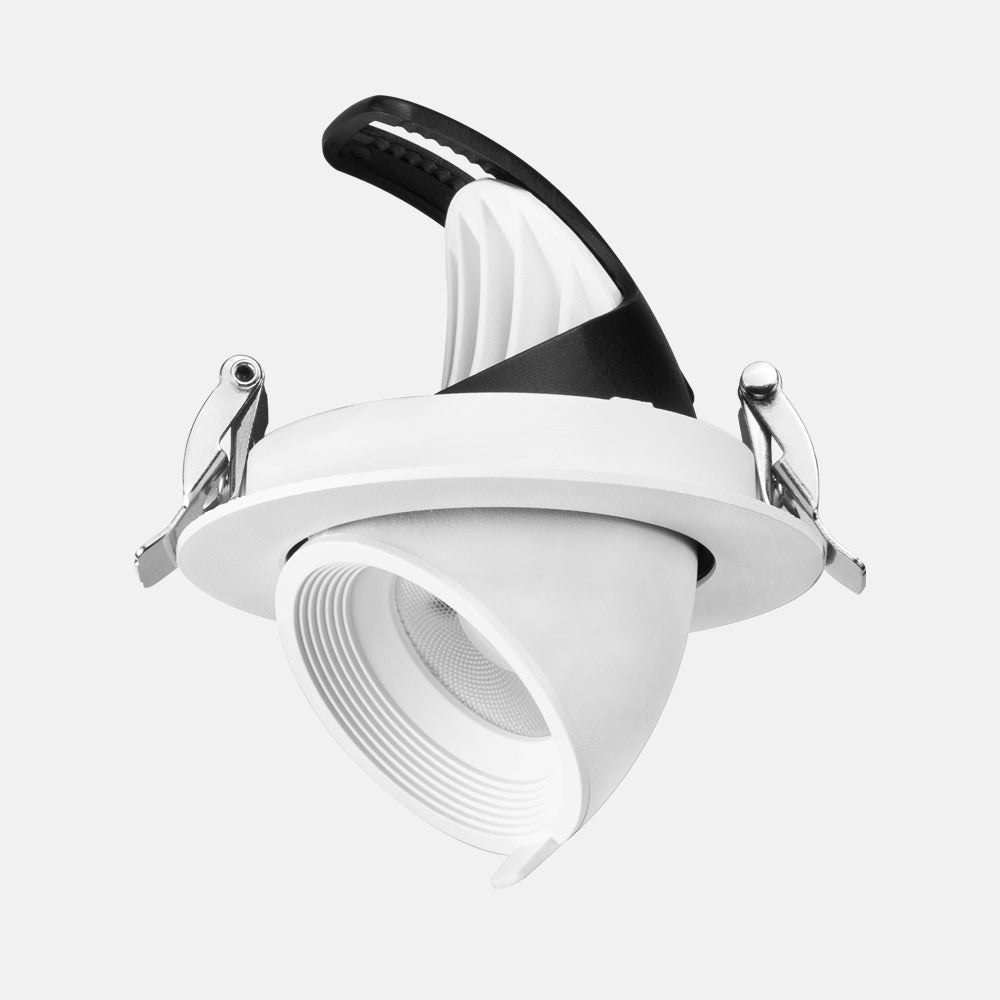

Special design especially the heat sink. The structure of the heat sink not only have beautiful outlooking but also help to increase heat release efficiency.

1 1

TR0008/TR0010 (01.200A01000)

Power：8W/10W

Installation method：Recessed

Cut out：φ75mm

Options：Non-dim, Phase dim, 0/1-10V, DALI, Bluetooth, ZigBee

Frequency：50/60Hz

LED chip：COB

Light efficiency：78 lm/W

CCT：2700K/3000K/3500K/4000K

CRI：≥90

SDCM：＜3

Adjustibility：355° Rotation | 45° Tilting

Light distribution：Direct

UGR：＜19

Beam angle：27°/35°/43°

Ingress protection：IP20

Material：Aluminum

Operating temperature：-25°C~50°C

Rated life hours：35,000h~50,000h LM80

Se komplette oplysninger

Download

BEAM ANGLE

27°

35°

43°

Applicable Instructions for 27° Illumination

This is an angle suitable for basic lighting， It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
