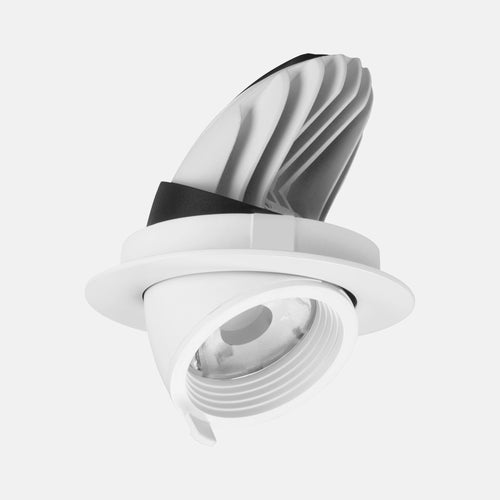

Trunk

01.200A0200

Special design especially the heat sink. The structure of the heat sink not only have beautiful outlooking but also help to increase heat release efficiency.
1 1

Specification

  • 01.200A02000
  • Power：12W/15W
  • Installation method：Recessed
  • Cut out：φ95mm
  • Dimming：Depending on driver
  • Frequency：50/60HZ
  • LED：COB
  • Lumen：68lm/w
  • CCT：2700K/3000K/3500K/4000K
  • CRI：≥90
  • SDCM：＜3
  • Adjustibility：355° Rotation | 45° Tilting
  • Light distribution：Direct
  • UGR：＜19
  • Beam angle：17°/23°/35°/43°
  • Protection class：IP20
  • Material：Aluminum
  • Environment temperature：-20°C~40°C
  • LED life Time：  35,000h~ 50,000h – L80
Se komplette oplysninger
Product icon

Download

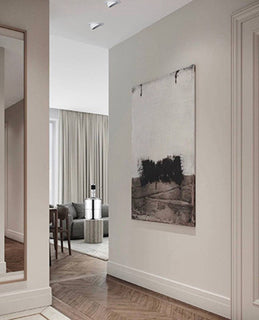

A02 Trunk
A02 Trunk
A02 Trunk
A02 Trunk
A02 Trunk
A02 Trunk
A02 Trunk

BEAM ANGLE

A02 Trunk
A02 Trunk
A02 Trunk
27°
35°
43°

Applicable Instructions for 27° Illumination

This is an angle suitable for basic lighting， It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
