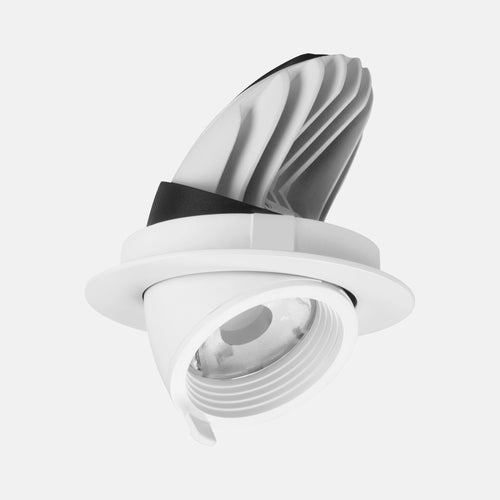

A04 Trunk COB Recessed LED Light

01.200A01

Special design especially the heat sink. The structure of the heat sink not only have beautiful outlooking but also help to increase heat release efficiency.
1 1

Specification

  • 01.200A0400
  • Power：8W/10W
  • Installation method：Recessed
  • Cut out：φ75mm
  • Dimming：Depending on driver
  • Frequency：50/60HZ
  • LED：COB
  • Lumen：78lm/w
  • CCT：2700K/3000K/3500K/4000K
  • CRI：≥90
  • SDCM：＜3
  • Adjustibility：355° Rotation | 45° Tilting
  • Light distribution：Direct
  • UGR：＜19
  • Beam angle：27°/35°/43°
  • Protection class：IP20
  • Material：Aluminum
  • Environment temperature：-20°C~40°C
  • LED life Time：  35,000h~ 50,000h – L80
Se komplette oplysninger
Product icon

Download

A04 Trunk
A04 Trunk
A04 Trunk
A04 Trunk
A04 Trunk
A04 Trunk
A04 Trunk

BEAM ANGLE

A04 Trunk
A04 Trunk
A04 Trunk
27°
35°
43°

Applicable Instructions for 27° Illumination

This is an angle suitable for basic lighting， It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
