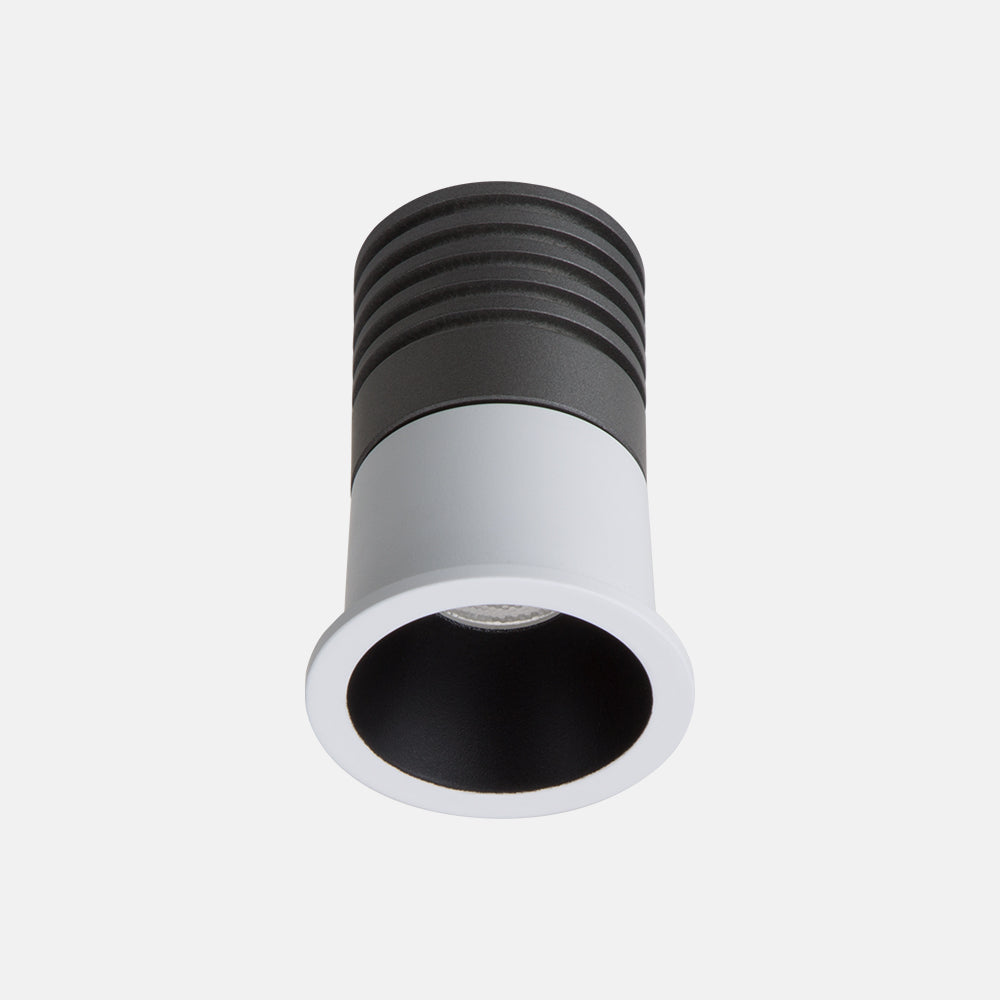

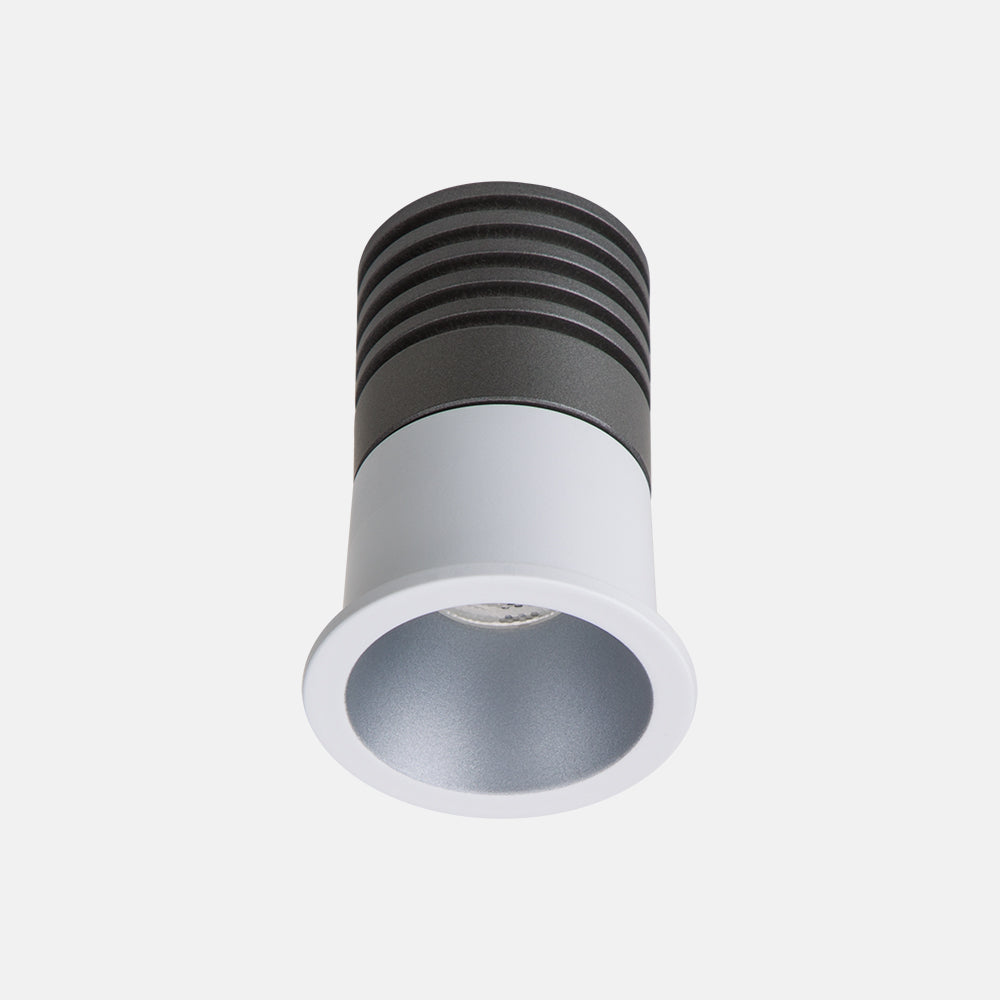

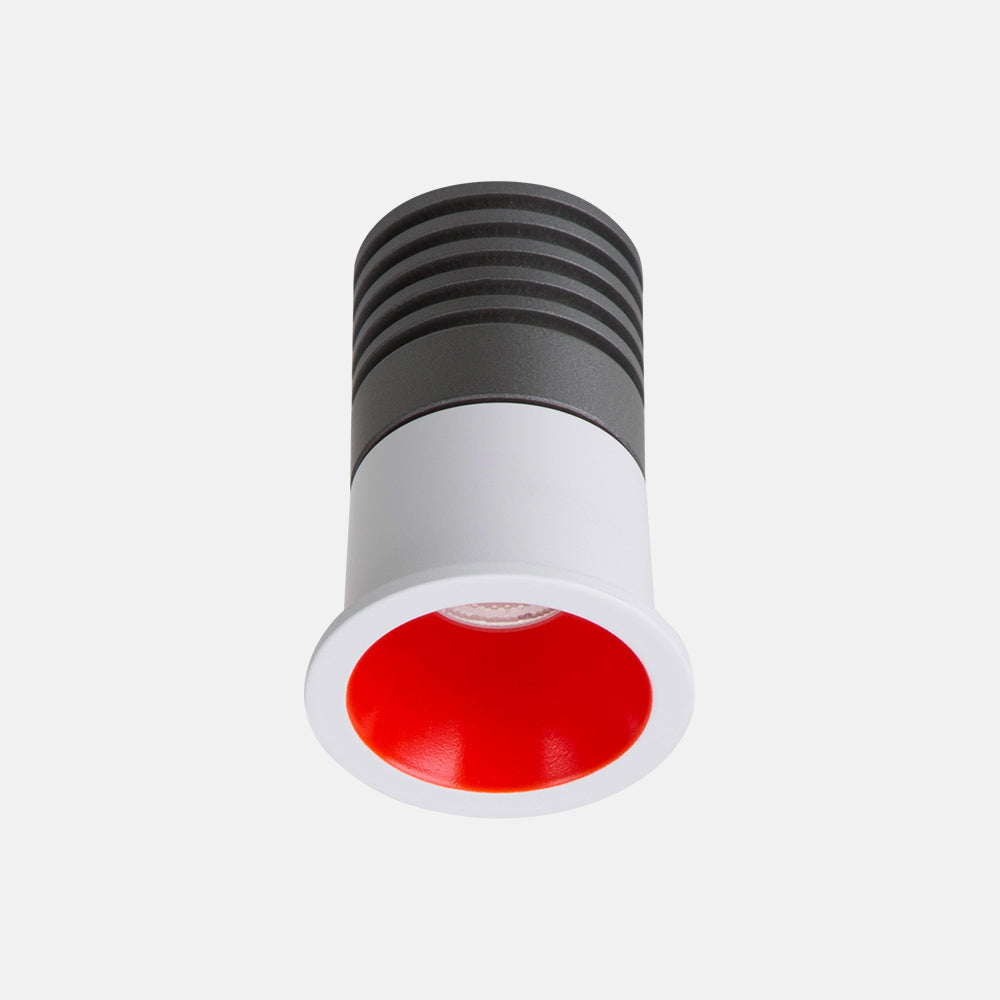

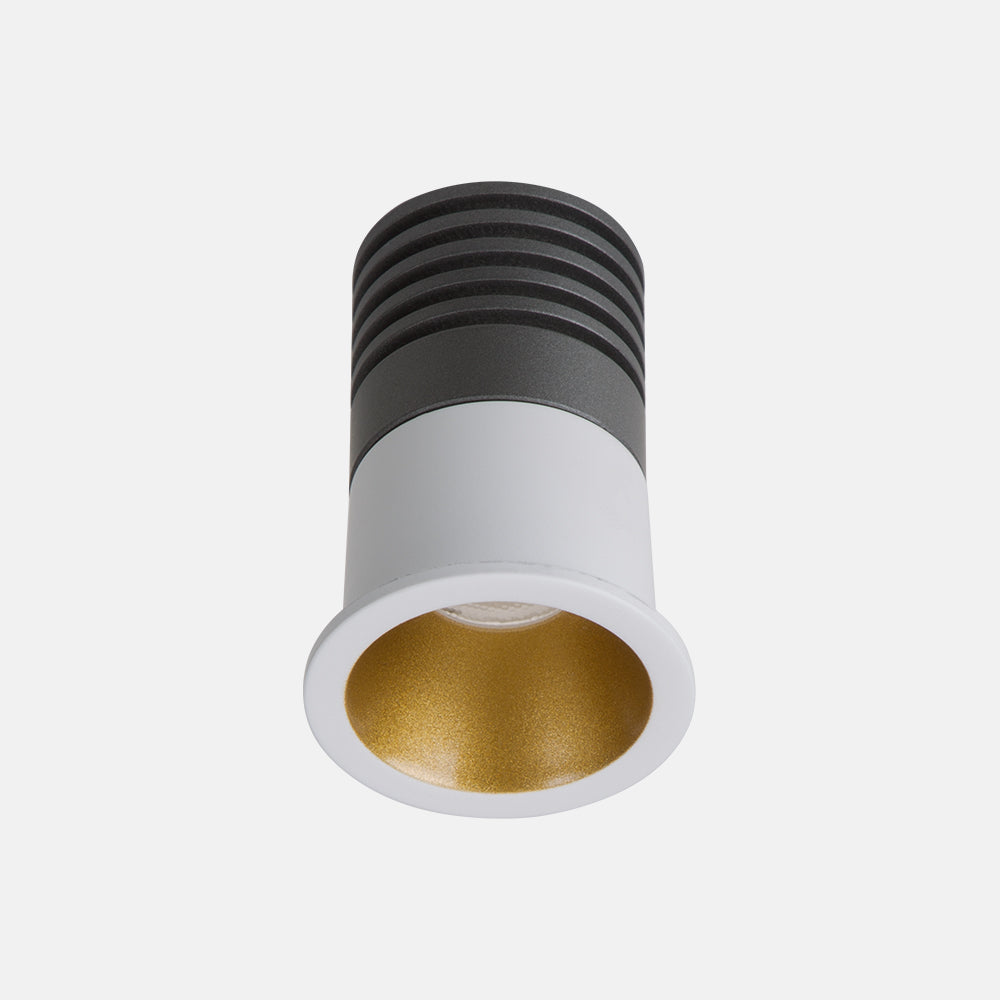

Conch

01.191A01000

le unique narrow side face ring design breaks through the traditional way ofexpression . rich color matching , to meet the various theme space applications.

1 4

CC0003 (01.191A01000)

Power：3W

Installation method：Recessed

Cut out：φ35mm

Options：Non-dim, Phase dim, 0/1-10V, DALI, Bluetooth, ZigBee

Frequency：50/60Hz

LED chip：SMD

Light efficiency：61 lm/W

CCT：2700K/3000K/3500K/4000K

CRI：≥90

SDCM：＜3

Adjustibility：No

Light distribution：Direct

UGR：＜19

Beam angle：17°/26°

Ingress protection：IP20

Material：Aluminum

Operating temperature：-25°C~50°C

Rated life hours：35,000h~50,000h LM80

Se komplette oplysninger

Download

BEAM ANGLE

Conch

Conch

Conch

Conch

Conch

17°

19°

33°

56°

60°

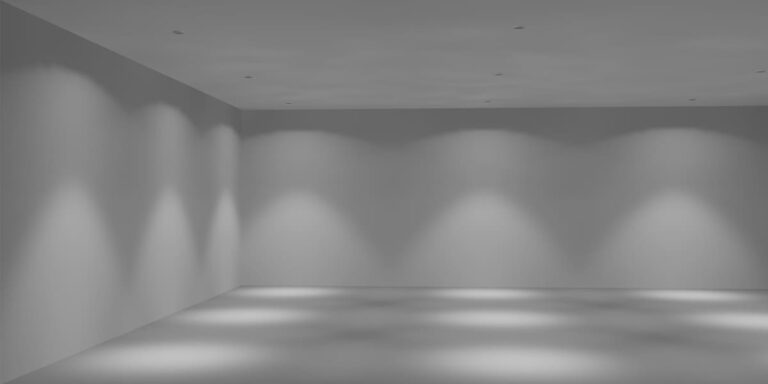

Applicable Instructions for 17° Illumination

This is an angle suitable for basic lighting，It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
