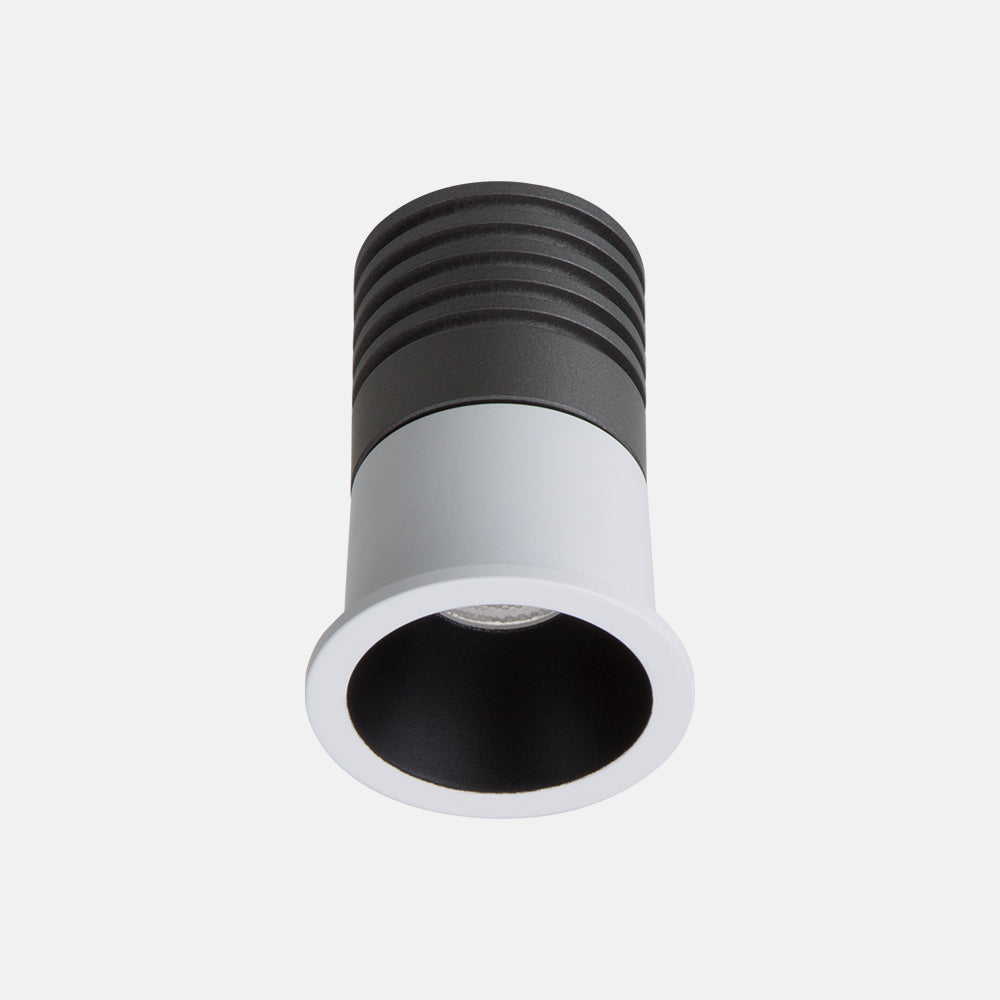

Conch

01.191A01000

le unique narrow side face ring design breaks through the traditional way ofexpression . rich color matching , to meet the various theme space applications.
1 1

Specification

  • 01.191A01000
  • Power：3W
  • Installation method：Recessed
  • Cut out：φ35mm
  • Dimming：Non-DIM 、TRIAC、0/1-10V、DALI、 BLE 、ZIGBEE
  • Frequency：50/60HZ
  • LED：SMD
  • Lumen：61lm/w
  • CCT：2700K/3000K/3500K/4000K
  • CRI：≥90
  • SDCM：＜3
  • Adjustibility：NO
  • Light distribution：Direct
  • UGR：＜19
  • Beam angle：17°/26°
  • Protection class：IP20
  • Material：Aluminum
  • Environment temperature：-25°C~50°C
  • LED life Time：  35,000h~ 50,000h – L80
Se komplette oplysninger
Product icon

Download

A01 Conch
A01 Conch
A01 Conch
A01 Conch
A01 Conch

BEAM ANGLE

A01 Conch
A01 Conch
A01 Conch
A01 Conch
17°
19°
33°
56°
60°

Applicable Instructions for 17° Illumination

This is an angle suitable for basic lighting， It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
