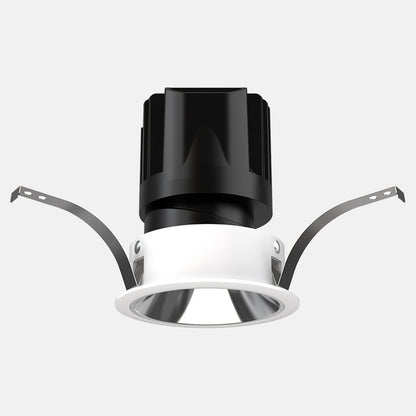

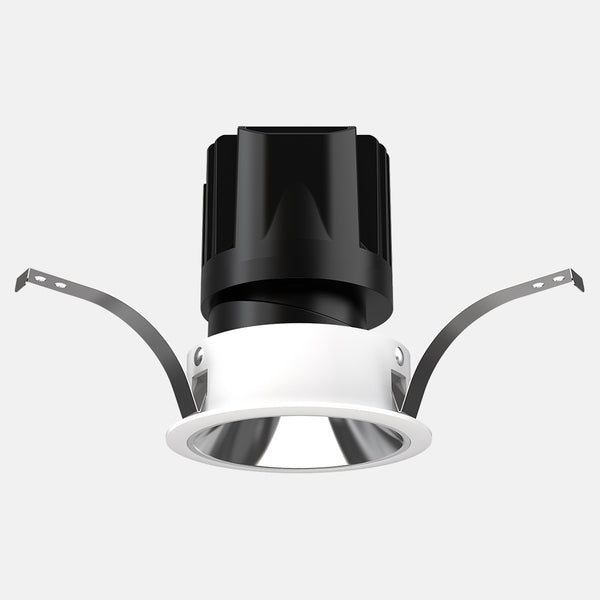

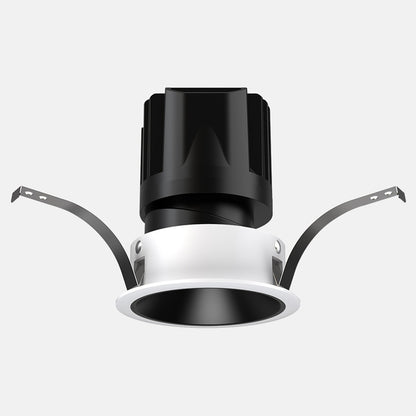

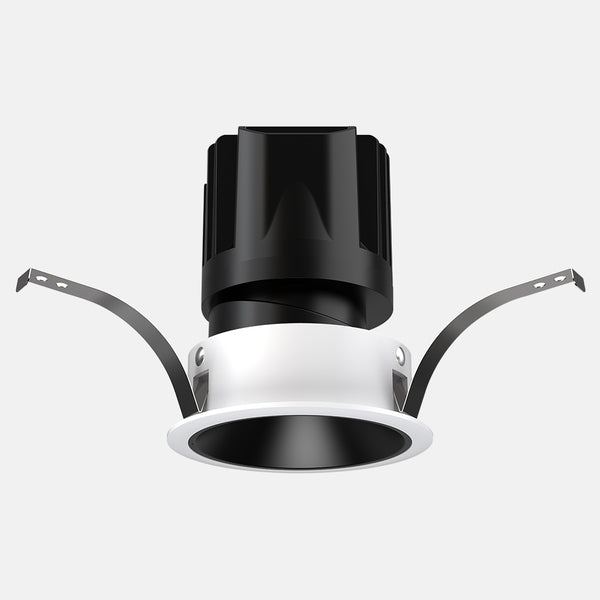

Apollo Pro

01.209A02R00

It adopts asymmetric gear adjustment technology and irregular section design.Breaking the conventional function classification , realizing the integration of fixed downwards lighting and adjustable lighting , While ensuring that there is no light leakage during the angle adjustment process , eliminating the trouble of function classification . Innovative super comfortable light distribution technology combined with directional calculus optical design , With a shading angle up to 41° structure layout , to achieve UGR < 10.
1 3

  Specification

  • Power：8W/10W/12W/15W
  • Installation method：Recessed
  • Cut out：φ75mm
  • Dimming：Non-DIM 、TRIAC、0/1-10V、DALI、 BLE 、ZIGBEE
  • Frequency：50/60HZ
  • LED：COB
  • Lumen：70lm/w
  • CCT：2700K/3000K/3500K/4000K/2700K-6000K
  • CRI：≥90
  • SDCM：＜3
  • Adjustibility： 355° Rotation | 25° Tilting
  • Light distribution：Direct
  • UGR：＜10
  • Beam angle：8°/18°/28°/38°/50°
  • Protection class：IP20 / IP65
  • Material：Aluminum
  • Environment temperature：-25°C~50°C
  • LED life Time：  35,000h~ 50,000h – L80
Se komplette oplysninger
Product icon

Download

Apollo Pro
Apollo Pro
Apollo Pro
Apollo Pro
Apollo Pro
Apollo Pro
Apollo Pro
Apollo Pro
Apollo Pro
Apollo Pro
Apollo Pro
Apollo Pro
Apollo Pro
Apollo Pro
Apollo Pro

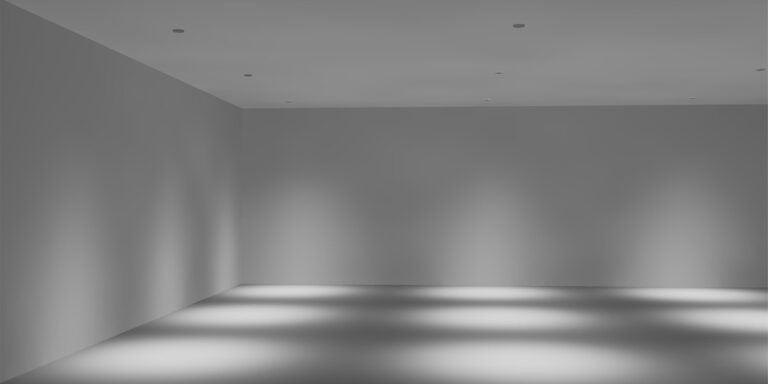

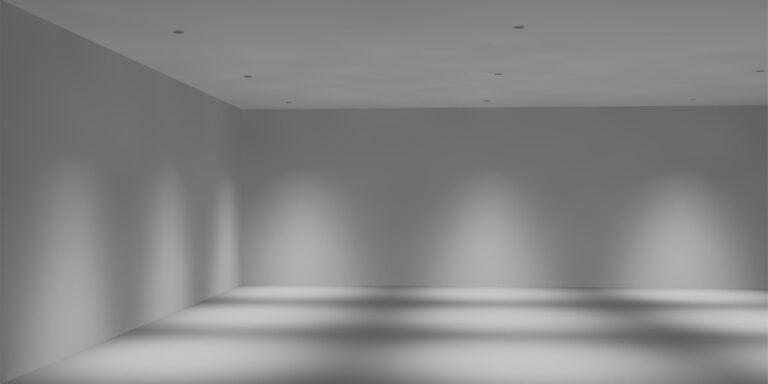

BEAM ANGLE

Apollo Pro
Apollo Pro
Apollo Pro
Apollo Pro
Apollo Pro
8°
18°
28°
38°
50°

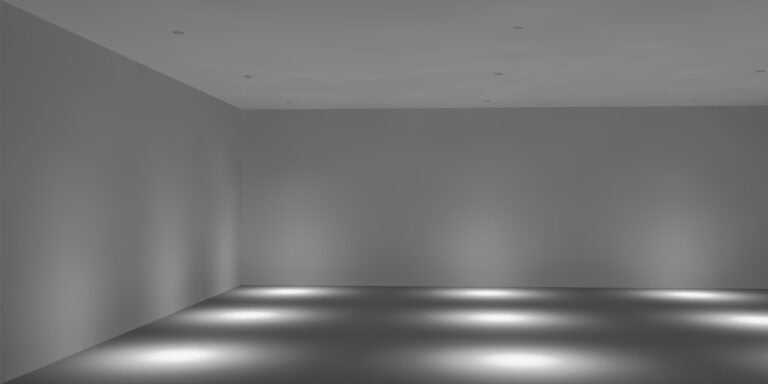

Applicable Instructions for 8° Illumination

This is an angle suitable for basic lighting，It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
