Apollo

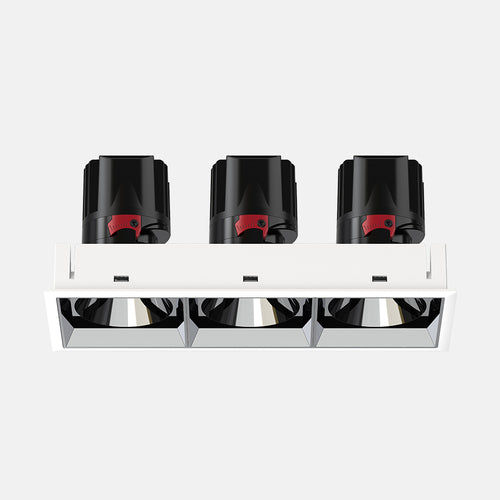

Name: S30
Brand: LYS
Availability: InStock

01.208A02S30

Innovative super comfortable light distribution technology combined with directional calculus optical design , with a shading angle up to 41° structure layout , to achieve UGR < 10 It has 8 " ultra-narrow beam angle to meet accurate lighting ; Providing convenient replacement of the honeycomb and a variety of light control accessories to achieve diversified light demand.

1 1

Specification

Power：3*8W/3*10W/3*12W/3*15W
Installation method：Recessed
Cut out：218*75mm
Dimming：Non-DIM 、TRIAC、0/1-10V、DALI、 BLE 、ZIGBEE
Frequency：50/60HZ
LED：COB
Lumen：70lm/w
CCT：2700K/3000K/3500K/4000K/2700K-6000K
CRI：≥90
SDCM：＜3
Adjustibility： 355° Rotation | 30° Tilting
Light distribution：Direct
UGR：＜10
Beam angle：8°/18°/28°/38°/50°
Protection class：IP20 / IP65
Material：Aluminum
Environment temperature：-25°C~50°C
LED life Time： 35,000h~ 50,000h – L80

Se komplette oplysninger

Download

BEAM ANGLE

8°

18°

28°

38°

50°

Applicable Instructions for 8° Illumination

This is an angle suitable for basic lighting. It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
