Apollo Pro

01.209A04R00

It adopts asymmetric gear adjustment technology and irregular section design.Breaking the conventional function classification , realizing the integration of fixed downwards lighting and adjustable lighting , While ensuring that there is no light leakage during the angle adjustment process , eliminating the trouble of function classification . Innovative super comfortable light distribution technology combined with directional calculus optical design , With a shading angle up to 41° structure layout , to achieve UGR < 10.

1 1

Specification

Power：30W/35W
Installation method：Recessed
Cut out：φ120mm
Dimming：Non-DIM 、TRIAC、0/1-10V、DALI、 BLE 、ZIGBEE
Frequency：50/60HZ
LED：COB
Lumen：88lm/w
CCT：2700K/3000K/3500K/4000K/2700K-6000K
CRI：≥90
SDCM：＜3
Adjustibility： 355° Rotation | 25° Tilting
Light distribution：Direct
UGR：＜10
Beam angle：24°/31°/42°/54°
Protection class：IP20 / IP65
Material：Aluminum
Environment temperature：-25°C~50°C
LED life Time： 35,000h~ 50,000h – L80

Se komplette oplysninger

Download

BEAM ANGLE

A04

A04

A04

A04

24°

31°

42°

54°

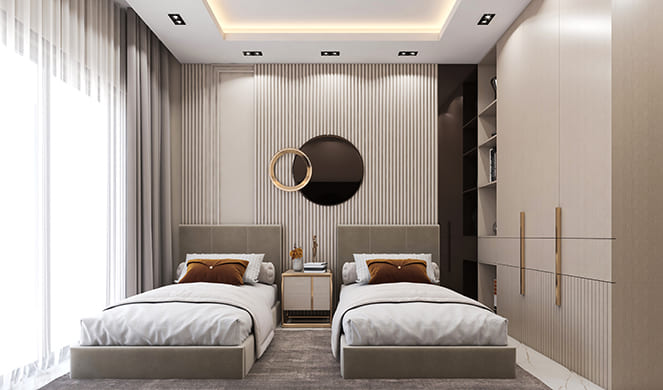

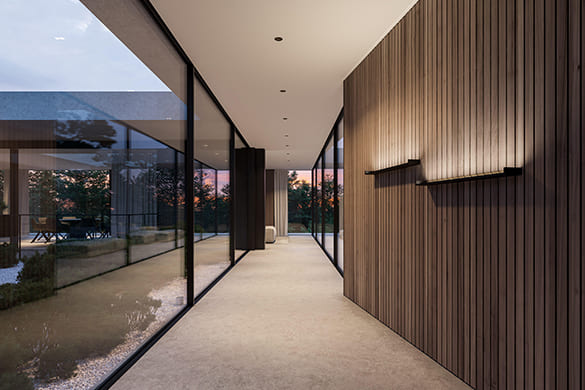

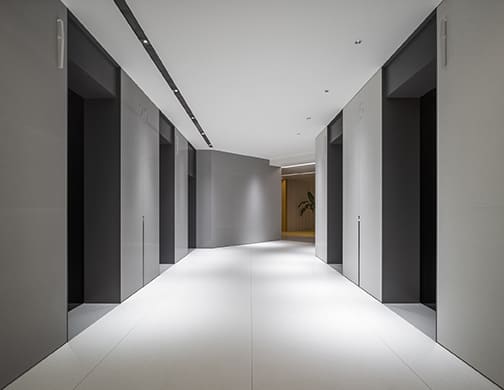

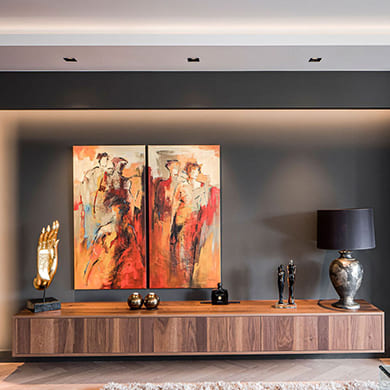

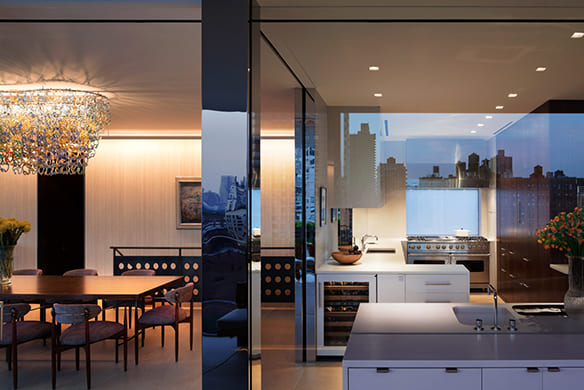

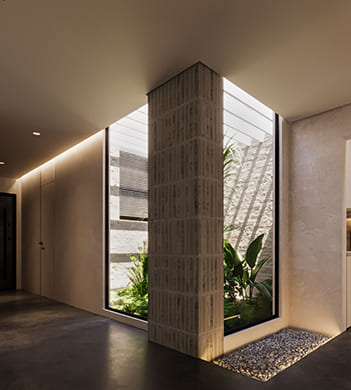

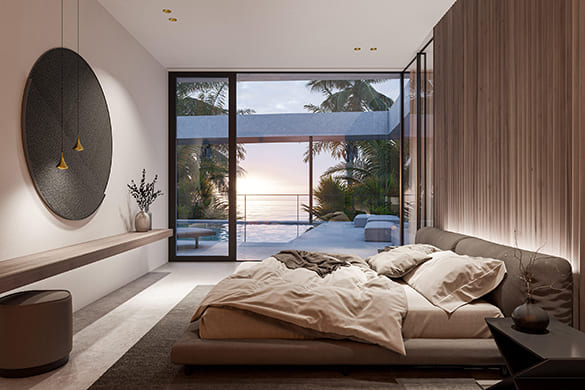

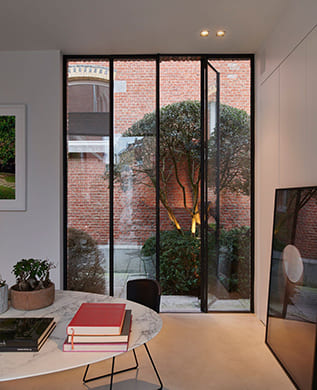

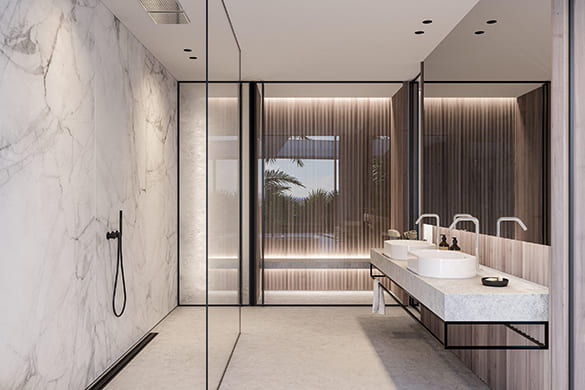

Applicable Instructions for 24° Illumination

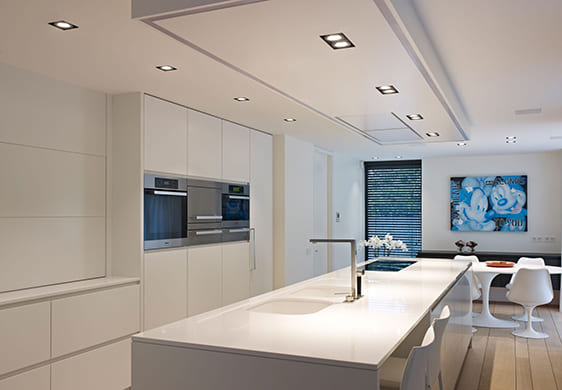

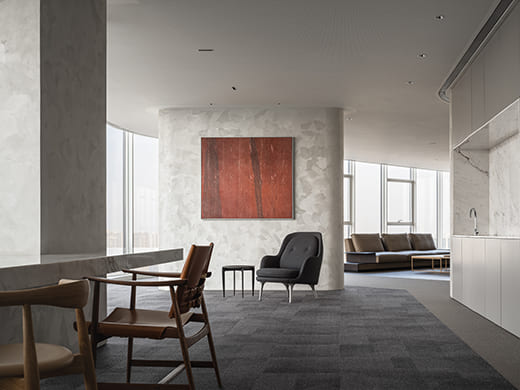

It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
