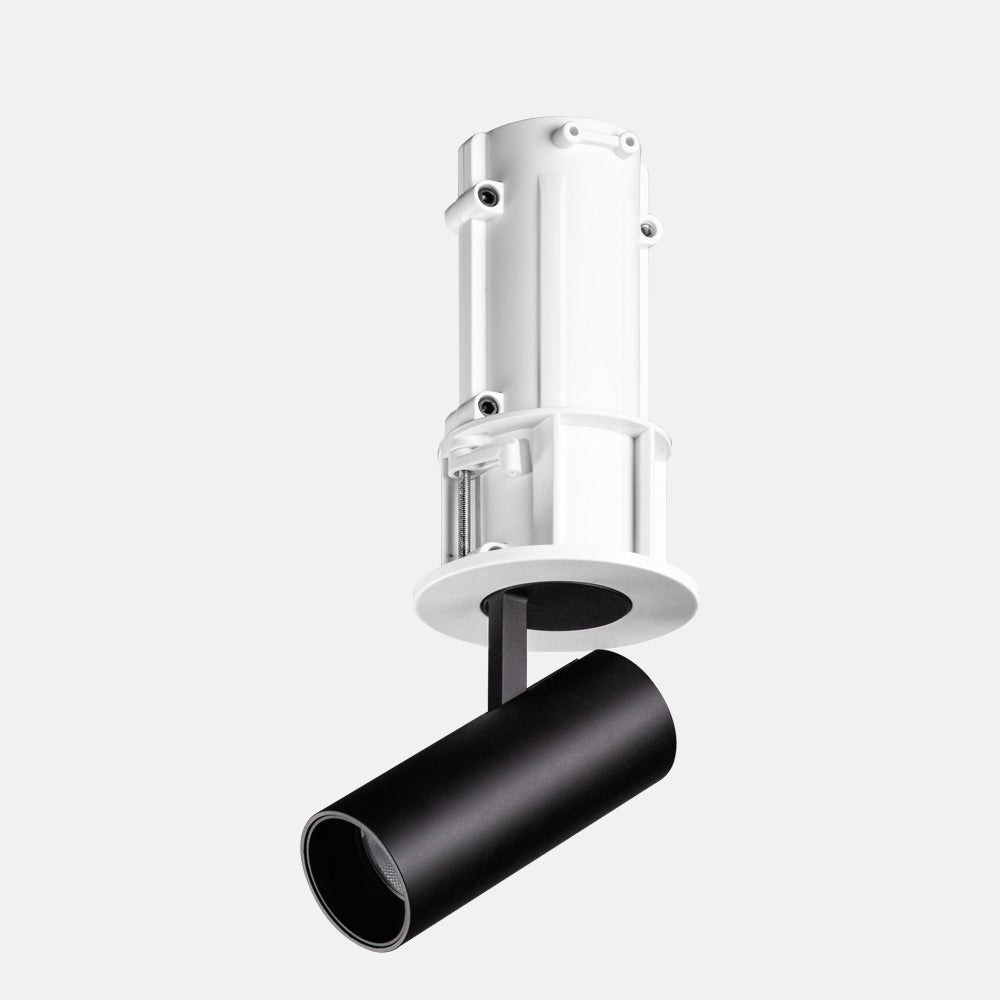

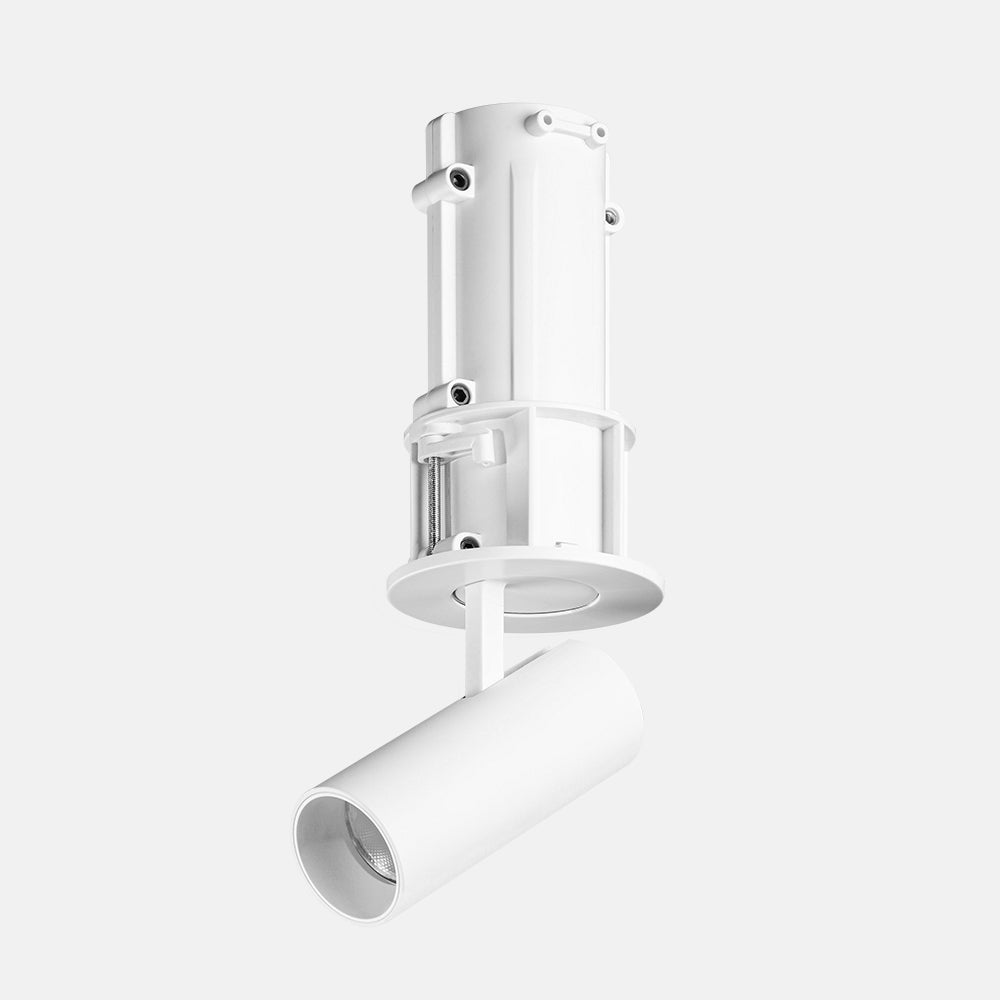

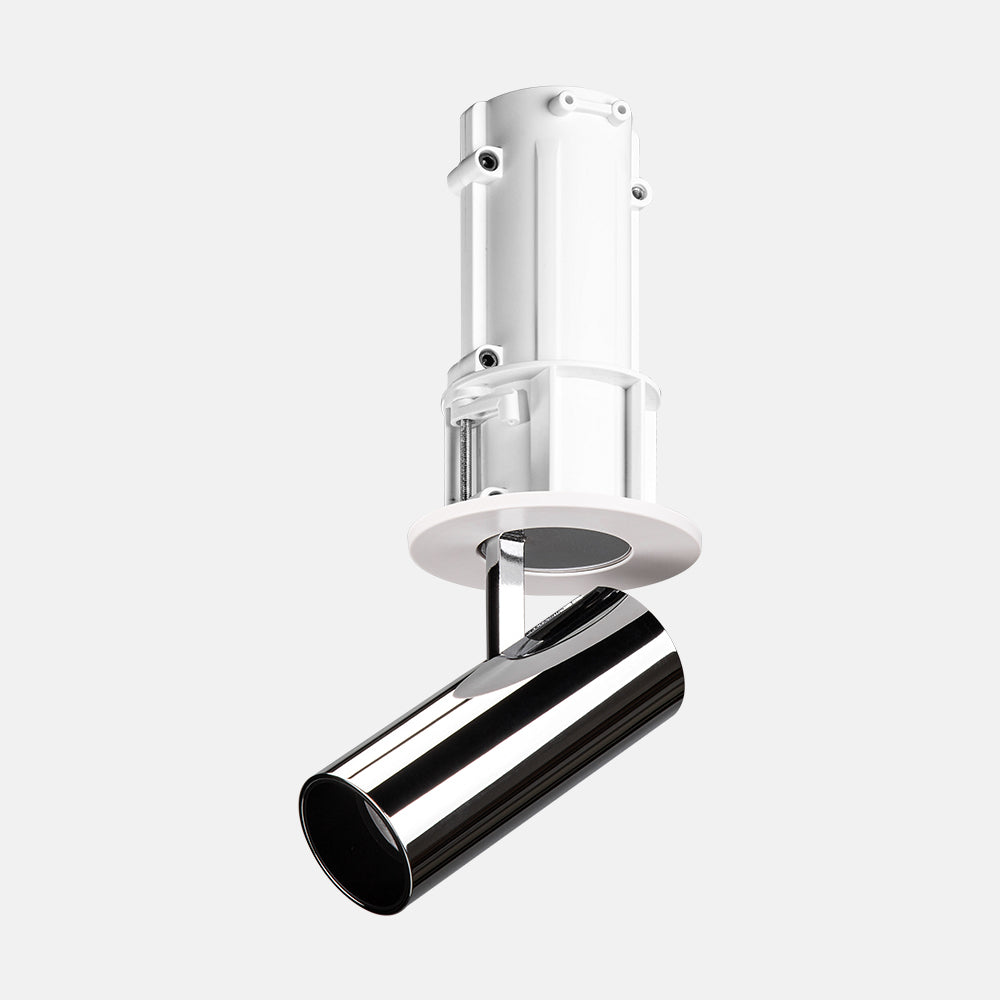

Smart mini

01.215A01000

The stretching and shrinking is so free , the lamp head can be stretched and contracted at will , and the lighting angle is more convenient.

1 3

Specification

Power：6W/8W

Installation method：Recessed

Cut out：φ55mm

Options：Non-dim, Phase dim, 0/1-10V, DALI, Bluetooth, ZigBee

Frequency：50/60Hz

LED chip：COB

Light efficiency：74 lm/W

CCT：2700K/3000K/3500K/4000K/2700K-6000K

CRI：≥90

SDCM：＜3

Adjustibility： 355° Rotation | 90° Tilting

Light distribution：Direct

UGR：＜19

Beam angle：21°/27°/37°

Ingress protection：IP20

Material：Aluminum

Operating temperature：-25°C~50°C

Rated life hours：35,000h~50,000h LM80

Se komplette oplysninger

Download

BEAM ANGLE

Smart mini

Smart mini

Smart mini

21°

27°

37°

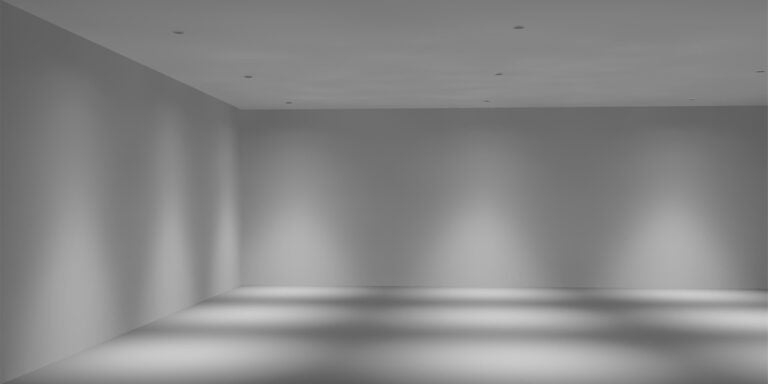

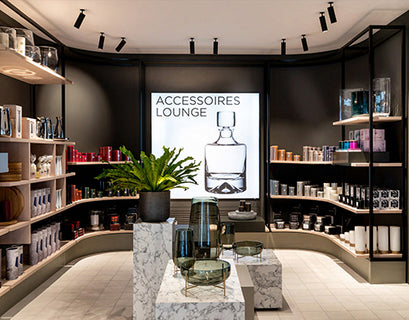

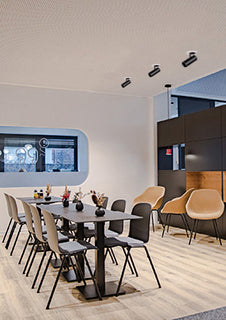

Applicable Instructions for 21° Illumination

This is an angle suitable for basic lighting，It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
