Smart mini

01.215A01000

The stretching and shrinking is so free , the lamp head can be stretched and contracted at will , and the lighting angle is more convenient
1 1

Specification

  • Power：6W/8W
  • Installation method：Recessed
  • Cut out：φ55mm
  • Dimming：Non-DIM 、TRIAC、0/1-10V、DALI、 BLE 、ZIGBEE
  • Frequency：50/60HZ
  • LED：COB
  • Lumen：74lm/w
  • CCT：2700K/3000K/3500K/4000K/2700K-6000K
  • CRI：≥90
  • SDCM：＜3
  • Adjustibility： 355° Rotation | 90° Tilting
  • Light distribution：Direct
  • UGR：＜19
  • Beam angle：21°/27°/37°
  • Protection class：IP20
  • Material：Aluminum
  • Environment temperature：-25°C~50°C
  • LED life Time：  35,000h~ 50,000h – L80
Se komplette oplysninger
Product icon

Download

A01 Smart mini
A01 Smart mini
A01 Smart mini
A01 Smart mini
A01 Smart mini
A01 Smart mini

BEAM ANGLE

A01 Smart mini
A01 Smart mini
A01 Smart mini
21°
27°
37°

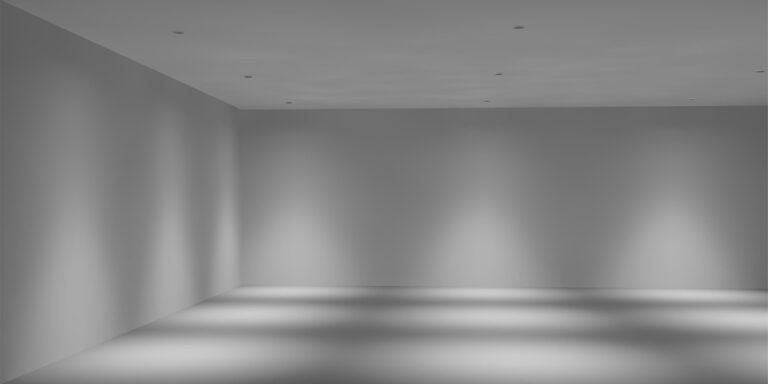

Applicable Instructions for 21° Illumination

This is an angle suitable for basic lighting，It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
