A01

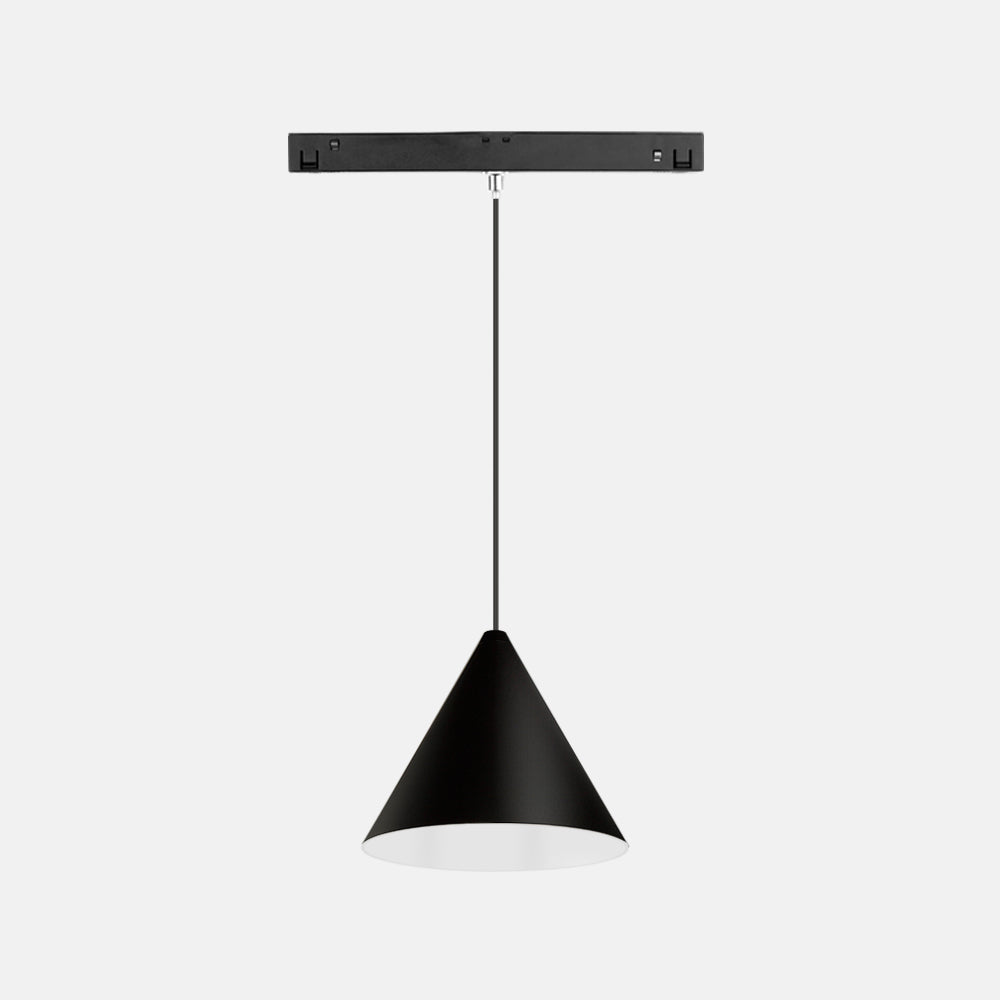

Cone 10W COB Ceiling LED Light

Name: Cone
Brand: LYS
Availability: InStock

07.036A01000

Magnetic lighting system as a new generation of lighting solutions, through the track layout consistent with the decoration style, lamps in the form of modules, convenient disassembly, flexible movement and other features of free combination. It not only attention to both the key lighting and basic lighting functions. Thoroughly change before need to cut hole, wiring and other troublesome installation way, totally accord with the trend of current minimalism style popularity.

1 2

Specification

03.199A01000
Power：10W
Installation method：Ceiling
Cut out：NO
Dimming：Non-DIM / TRIAC / 0/1-10V / DALI
Frequency：50/60HZ
LED：COB
Lumen：74lm/w
CCT：2700K/3000K/3500K/4000K
CRI：≥90
SDCM：＜3
Adjustibility：355° Rotation | 30° Tilting
Light distribution：Direct
UGR：＜19
Beam angle：15°/24°/36°/50°
Protection class：IP20
Material：Aluminum
Environment temperature：-20°C~40°C
LED life Time： 35,000h~ 50,000h – L80

Se komplette oplysninger

Download

BEAM ANGLE

18°

25°

36°

60°

Applicable Instructions for 18° Illumination

This is an angle suitable for basic lighting， It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
