Boost

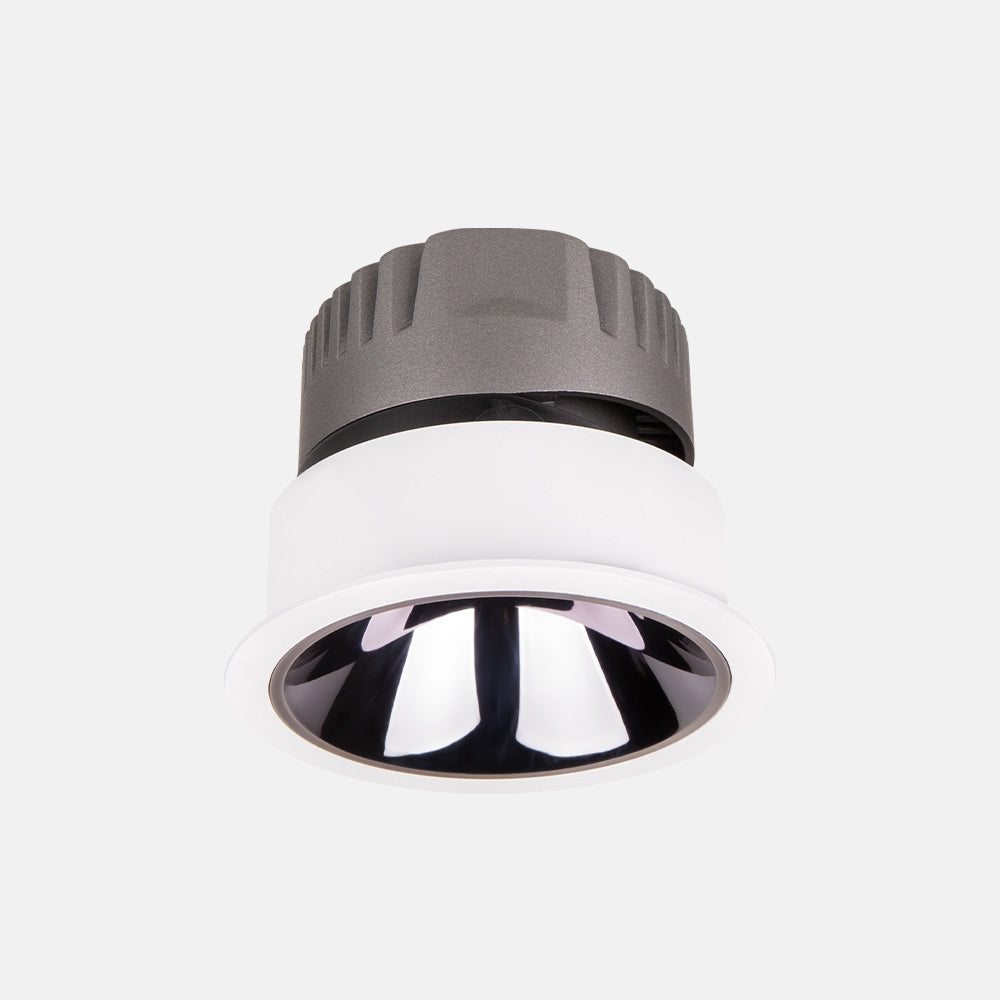

01.210A02R00

Low lamp body , height only 65mm , It available for low ceilling , ordinary 75mm cut-size , 20° adjustable.

1 1

Specification

Power：6W/8W/10W

Installation method：Recessed

Cut out：φ75mm

Options：Non-dim, Phase dim, 0/1-10V, DALI, Bluetooth, ZigBee

Frequency：50/60Hz

LED chip：COB

Light efficiency：74 lm/W

CCT：2700K/3000K/3500K/4000K

CRI：＞90

SDCM：＜3

Adjustibility：355° Rotation | 20° Tilting

Light distribution：Direct

UGR：＜10

Beam angle：20°/26°/31°/50°

Ingress protection：IP20

Material：Aluminum

Operating temperature：-25°C~50°C

Rated life hours：35,000h~50,000h LM80

Se komplette oplysninger

Download

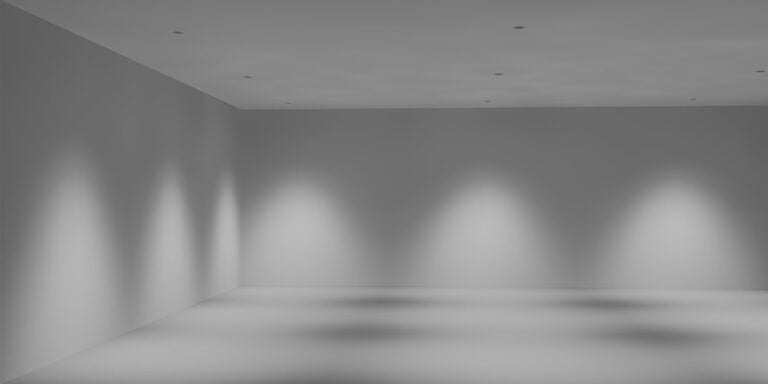

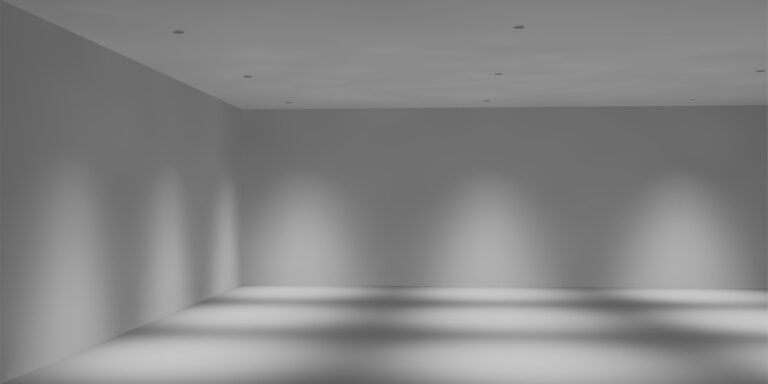

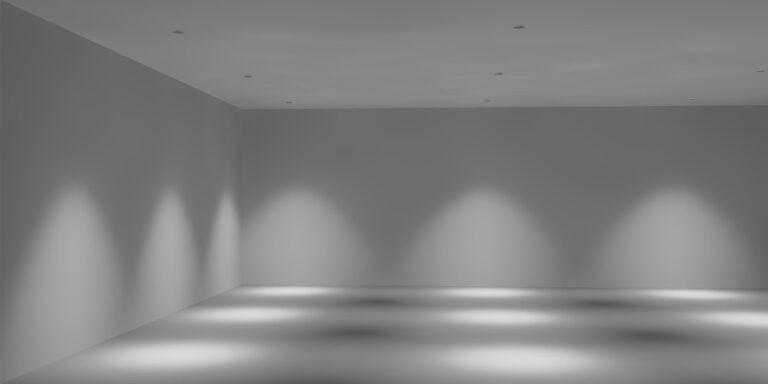

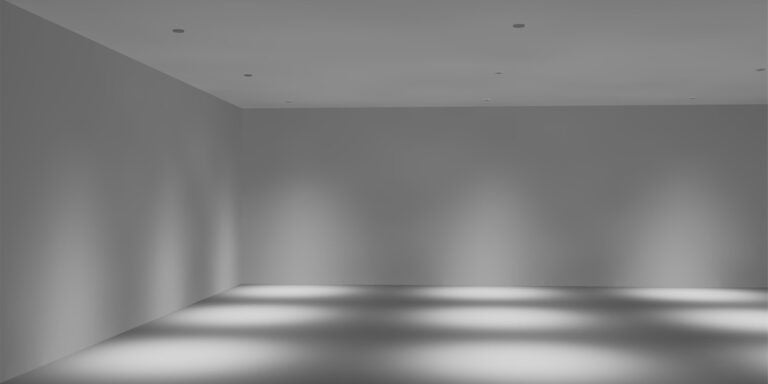

BEAM ANGLE

Boost

Boost

Boost

Boost

20°

26°

31°

50°

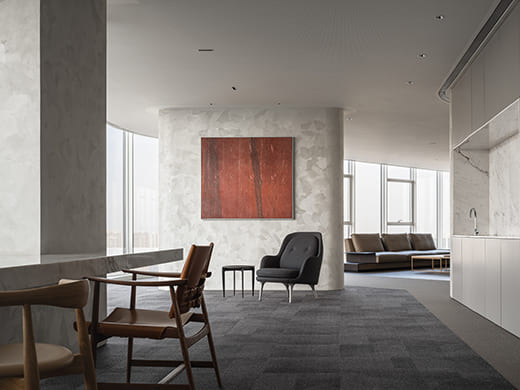

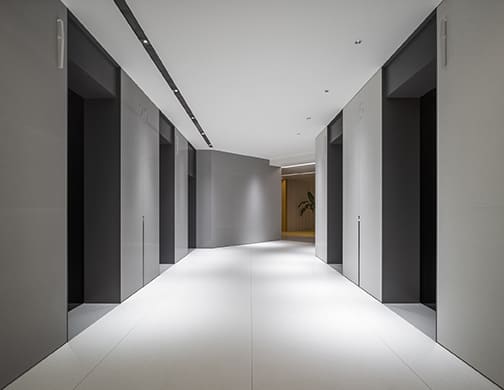

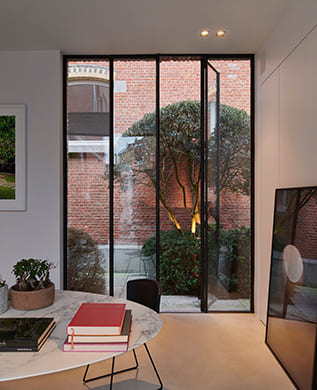

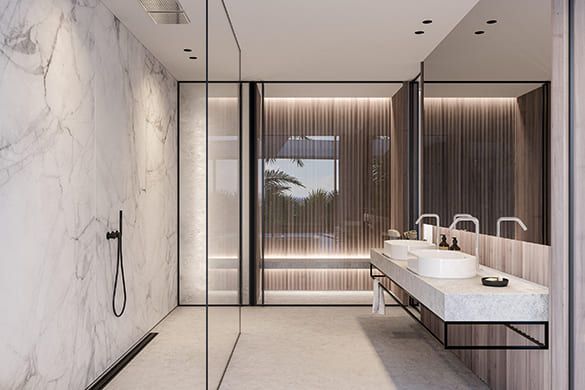

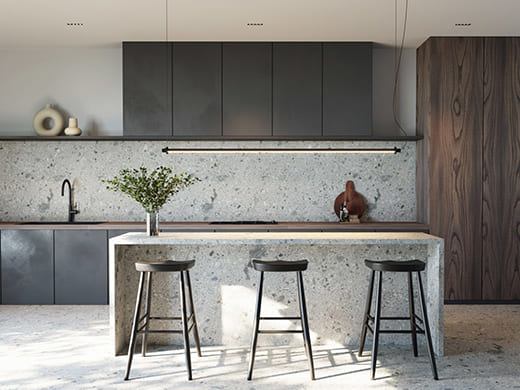

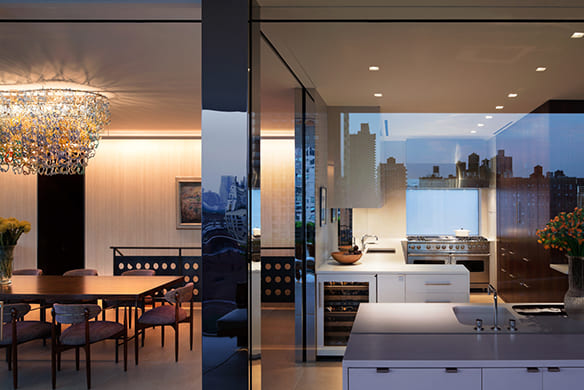

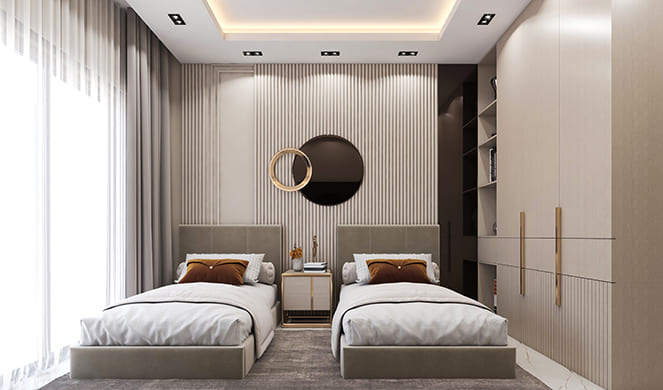

Applicable Instructions for 20° Illumination

This is an angle suitable for basic lighting，It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
