01.210A02R00

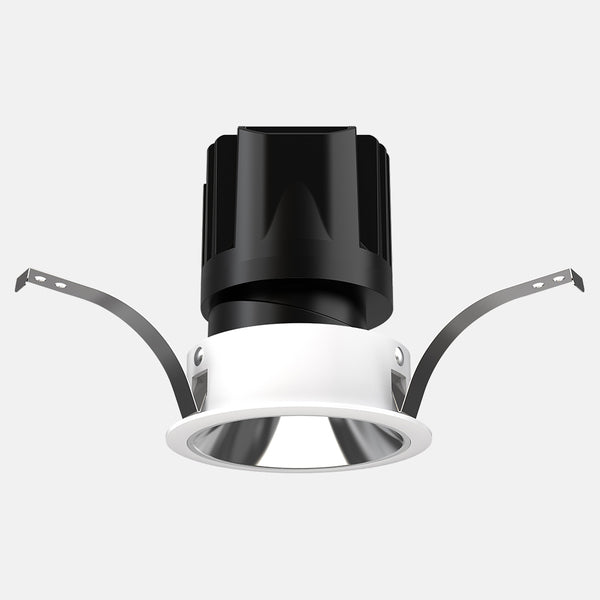

Low lamp body , height only 65mm , It available for low ceilling , ordinary 75mm cut-size , 20° adjustable.
1 3

Specification

  • Power：6W/8W/10W
  • Installation method：Recessed
  • Cut out：φ75mm
  • Dimming：Non-DIM 、TRIAC、0/1-10V、DALI、 BLE 、ZIGBEE
  • Frequency：50/60HZ
  • LED：COB
  • Lumen：74lm/w
  • CCT：2700K/3000K/3500K/4000K/2700K-6000K
  • CRI：≥90
  • SDCM：＜3
  • Adjustibility： 355° Rotation | 20° Tilting
  • Light distribution：Direct
  • UGR：＜10
  • Beam angle：20°/26°/31°/50°
  • Protection class：IP20
  • Material：Aluminum
  • Environment temperature：-25°C~50°C
  • LED life Time：  35,000h~ 50,000h – L80
Se komplette oplysninger
Product icon

Download

A02 2
A02 2
A02 2
A02 2
A02 2
A02 2
A02 2
A02 2
A02 2
A02 2
A02 2
A02 2
A02 2
A02 2
A02 2

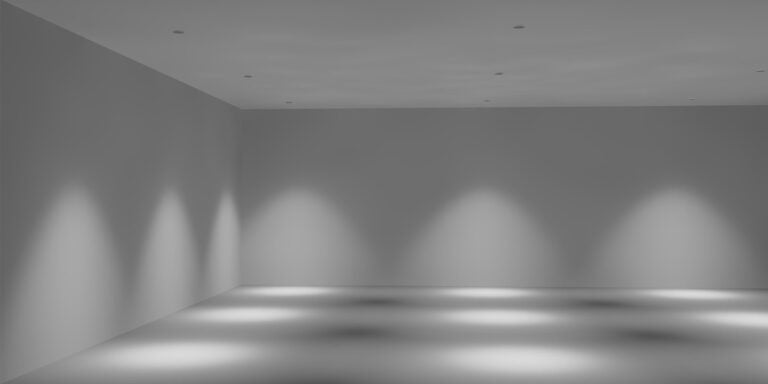

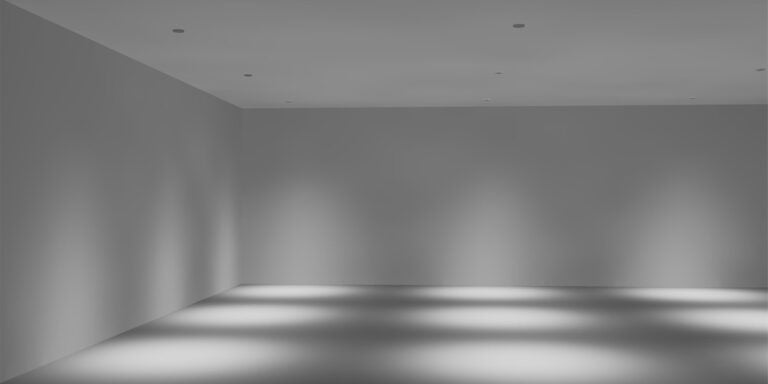

BEAM ANGLE

A02 2
A02 2
A02 2
A02 2
20°
26°
31°
50°`

Applicable Instructions for 20° Illumination

This is an angle suitable for basic lighting，It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
