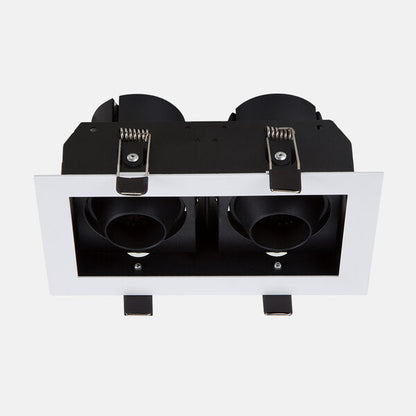

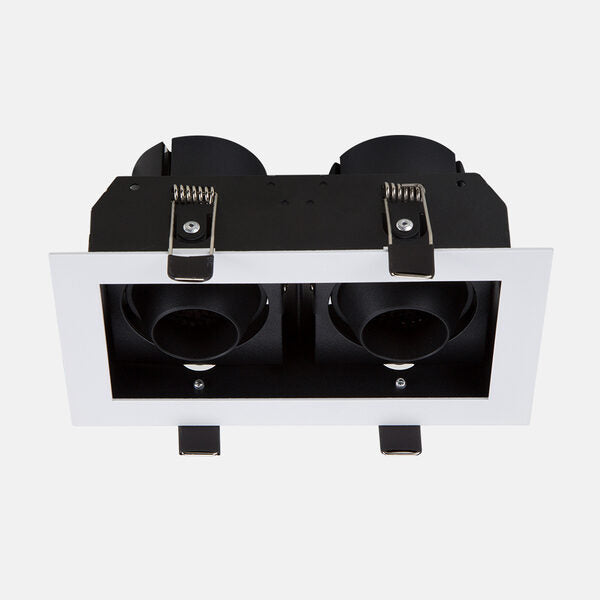

Apollo

Name: Apollo
Brand: LYS
Availability: InStock

01.208A01R

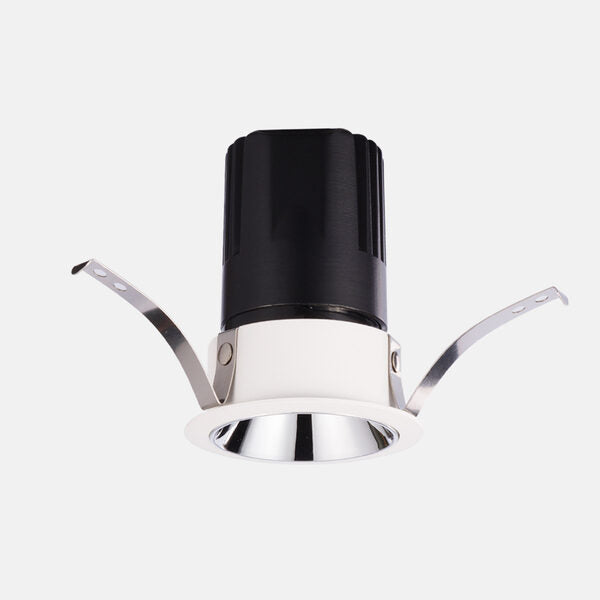

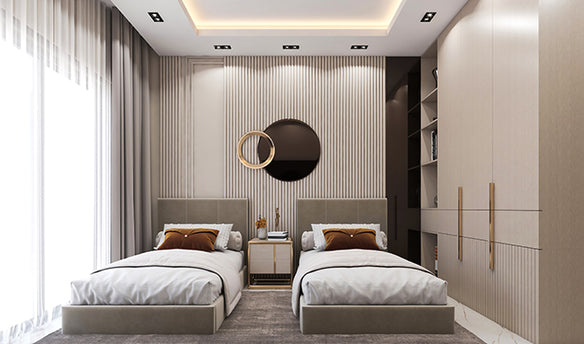

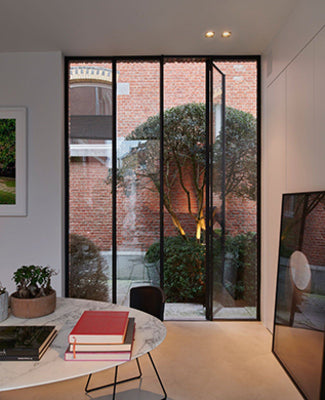

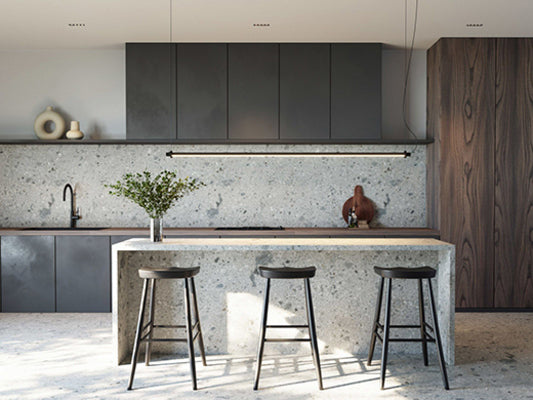

Apollo has the mechanical characteristics of 25° vertical and 355° horizontal adjustable angle , which makes the beam focus more freely and accurately in space . Apollo series is flexible , providing a new lighting solution for indoor space . All parts can be reassembled into a perfect lamp structure.

1 3

Specification

Power：6W/8W
Installation method：Recessed
Cut out：φ55mm
Dimming：Non-DIM 、TRIAC、0/1-10V、DALI、 BLE 、ZIGBEE
Frequency：50/60HZ
LED：COB
Lumen：65lm/w
CCT：2700K/3000K/3500K/4000K/2700K-6000K
CRI：≥90
SDCM：＜3
Adjustibility： 355° Rotation | 25° Tilting
Light distribution：Direct
UGR：＜10
Beam angle：20°/25°/36°
Protection class：IP20
Material：Aluminum
Environment temperature：-25°C~50°C (Tc 85/120°C)
LED life Time： 35,000h~ 50,000h – L80

Se komplette oplysninger

Accessories

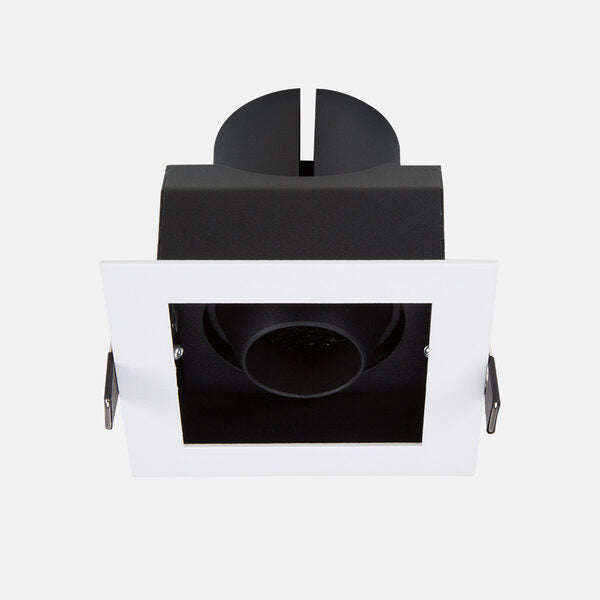

Rimless

Cut out：75*75mm
Color：White

01.208B02S40

Oval Flood Lens

Material：Aluminum
Beam angle：60×0.3

1.13.00001

Oval Flood Lens

Material：Aluminum
Beam angle：60×10

1.13.00002

Oval Flood Lens

Material：Aluminum
Beam angle：60×15

1.13.00003

Oval Flood Lens

Material：Aluminum
Beam angle：40×10

1.13.00004

Oval Flood Lens

Material：Aluminum
Beam angle：18°/19°

1.13.00005

Oval Flood Lens

Material：Aluminum
Beam angle：22°/23°

1.13.00006

Oval Flood Lens

Material：Aluminum
Beam angle：27°/32°

1.13.00007

Oval Flood Lens

Material：Aluminum
Beam angle：33°/45°

1.13.00008

Oval Flood Lens

Material：Aluminum
Size：10×10mm

1.13.00009

Download

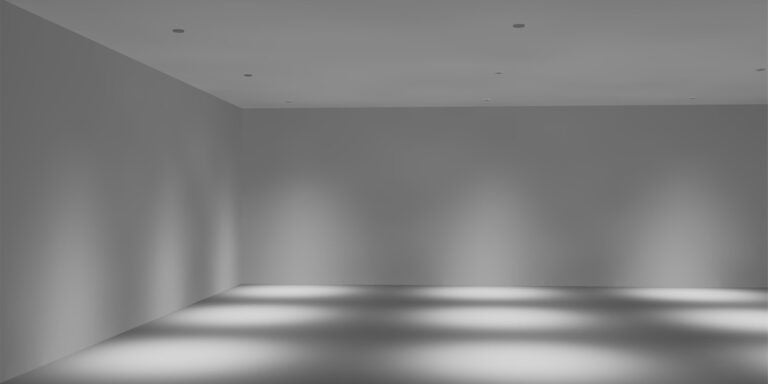

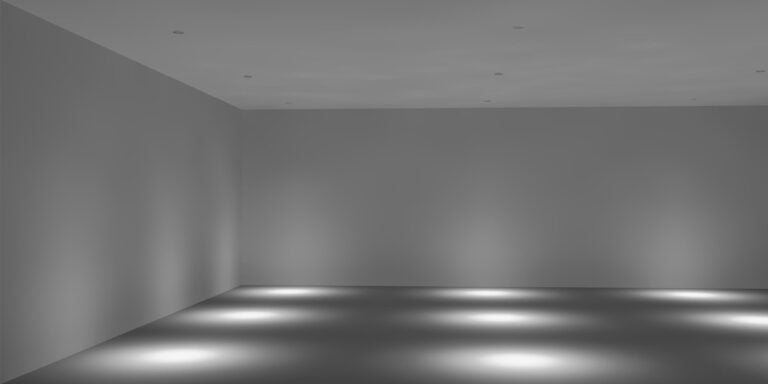

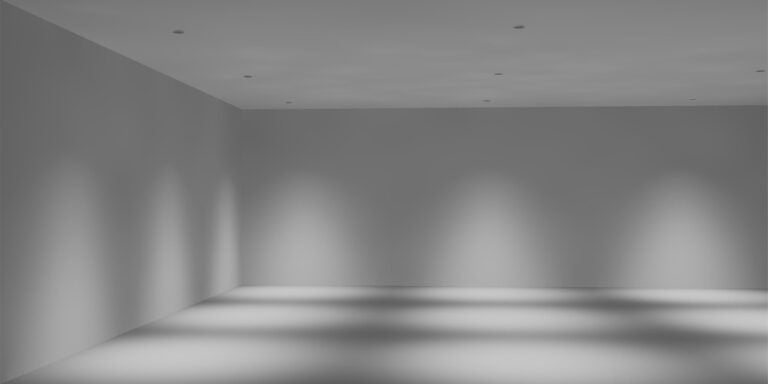

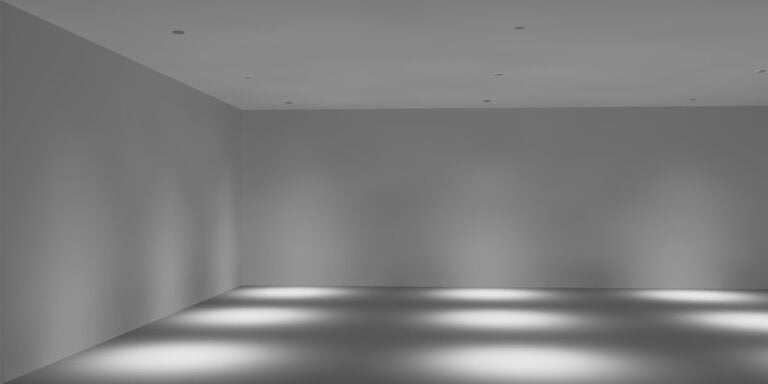

BEAM ANGLE

8°

18°

28°

38°

50°

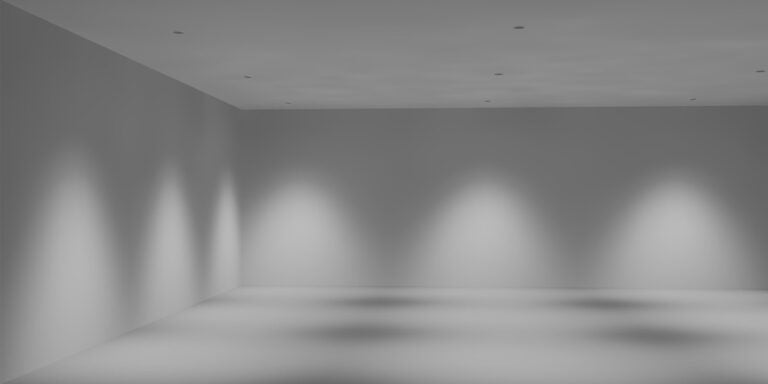

Applicable Instructions for 8° Illumination

This is an angle suitable for basic lighting， It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
