Ala

03.106B01000

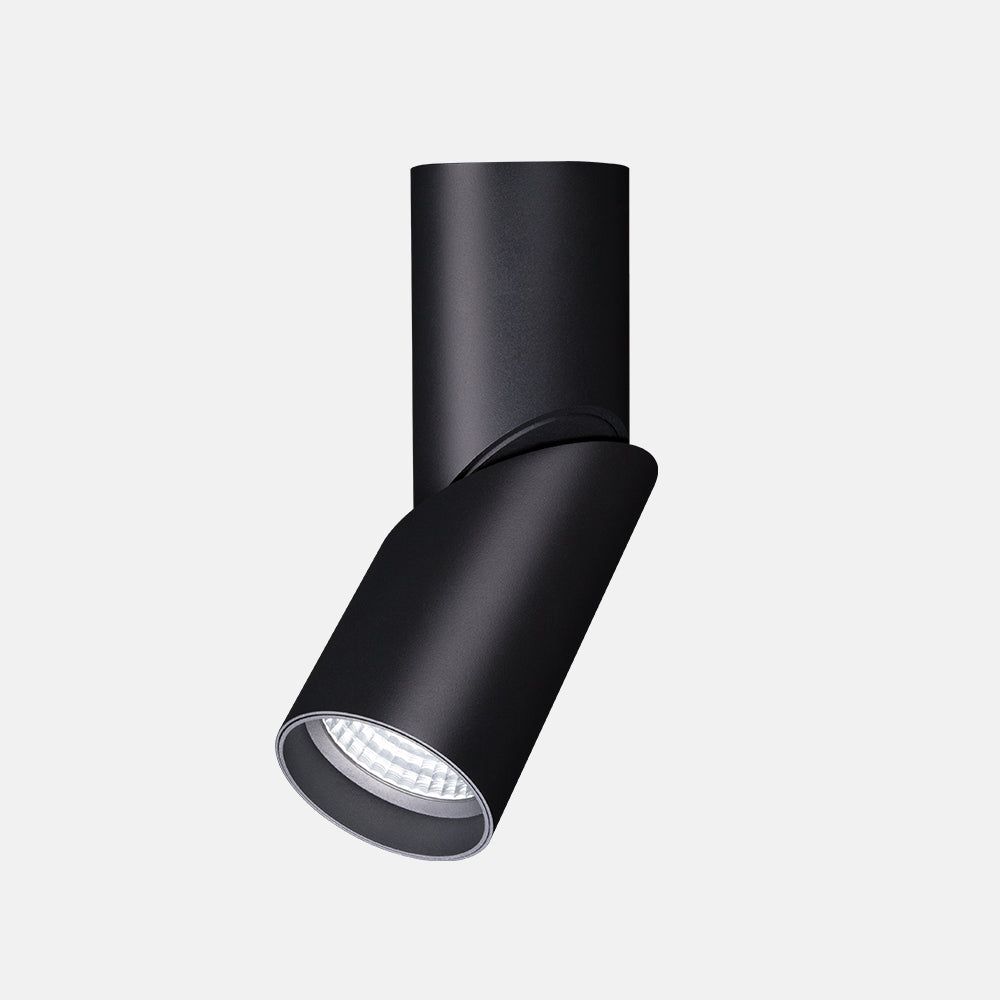

Ala is a ceiling fixture with aluminum frame that can be swiveled on a single 355° axis to direct the light beam as needed.‎ The unique design of the central joint allows the light fixture to be rotated 90° or kept fixed to further customize the lighting.‎ GU10 lamp holder that allows mounting LED lamp.‎ Available in two finishes (white, black).‎
1 1

AA1012/AA1015/AA1020 (03.106B01000)

Power：12W/15W/20W

Installation method：Ceiling

Cut out：No

Options：Non-dim,  Phase dim

Frequency：50/60Hz

LED chip：COB

Light efficiency：81 lm/W

CCT：2700K/3000K/3500K/4000K

CRI：≥90

SDCM：＜3

Adjustibility：355° Rotation | 90° Tilting

Light distribution：Direct

Beam angle：17°/20°/22°

Ingress protection：IP20

Material：Aluminum

Operating temperature：-25°C~50°C

Rated life hours：35,000h~50,000h  LM80

Se komplette oplysninger
Product icon

Download

Ala
Ala
Ala
Ala
Ala
Ala
Ala
Ala
Ala

BEAM ANGLE

Ala
Ala
Ala
17°
20°
22°

Applicable Instructions for 17° Illumination

This is an angle suitable for basic lighting. It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
