B01 Ala

03.106B01000

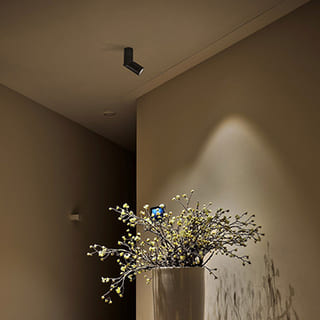

Ala is a ceiling fixture with aluminum frame that can be swiveled on a single 355° axis to direct the light beam as needed.‎ The unique design of the central joint allows the light fixture to be rotated 90° or kept fixed to further customize the lighting.‎ GU10 lamp holder that allows mounting LED lamp.‎ Available in two finishes (white, black).‎
1 1

Specification

  • 03.106B01000
  • Power：12W/15W/20W
  • Installation method：Ceiling
  • Cut out：NO
  • Dimming：Non-DIM / TRIAC
  • Frequency：50/60HZ
  • LED：COB
  • Lumen：81lm/w
  • CCT：2700K/3000K/3500K/4000K
  • CRI：≥90
  • SDCM：＜3
  • Adjustibility：355° Rotation | 90° Tilting
  • Light distribution：Direct
  • Beam angle：17°/20°/22°
  • Protection class：IP20
  • Material：Aluminum
  • Environment temperature：-20°C~40°C
  • LED life Time：  35,000h~ 50,000h – L80
Se komplette oplysninger
Product icon

Download

B01 Ala
B01 Ala
B01 Ala
B01 Ala
B01 Ala
B01 Ala
B01 Ala
B01 Ala
B01 Ala
B01 Ala

BEAM ANGLE

B01 Ala
B01 Ala
B01 Ala
17°
20°
22°

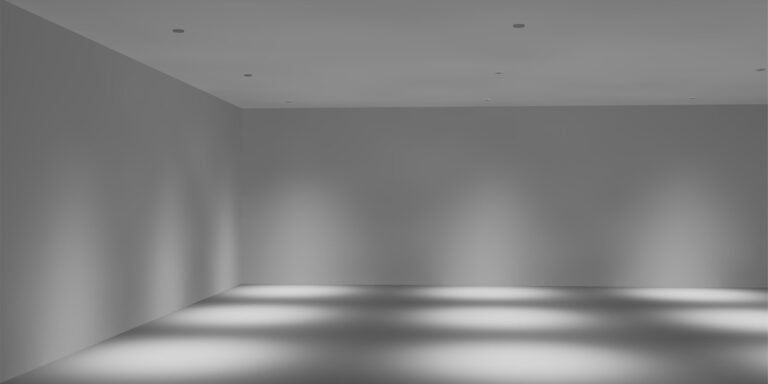

Applicable Instructions for 17° Illumination

This is an angle suitable for basic lighting，It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
