ALA

02.106

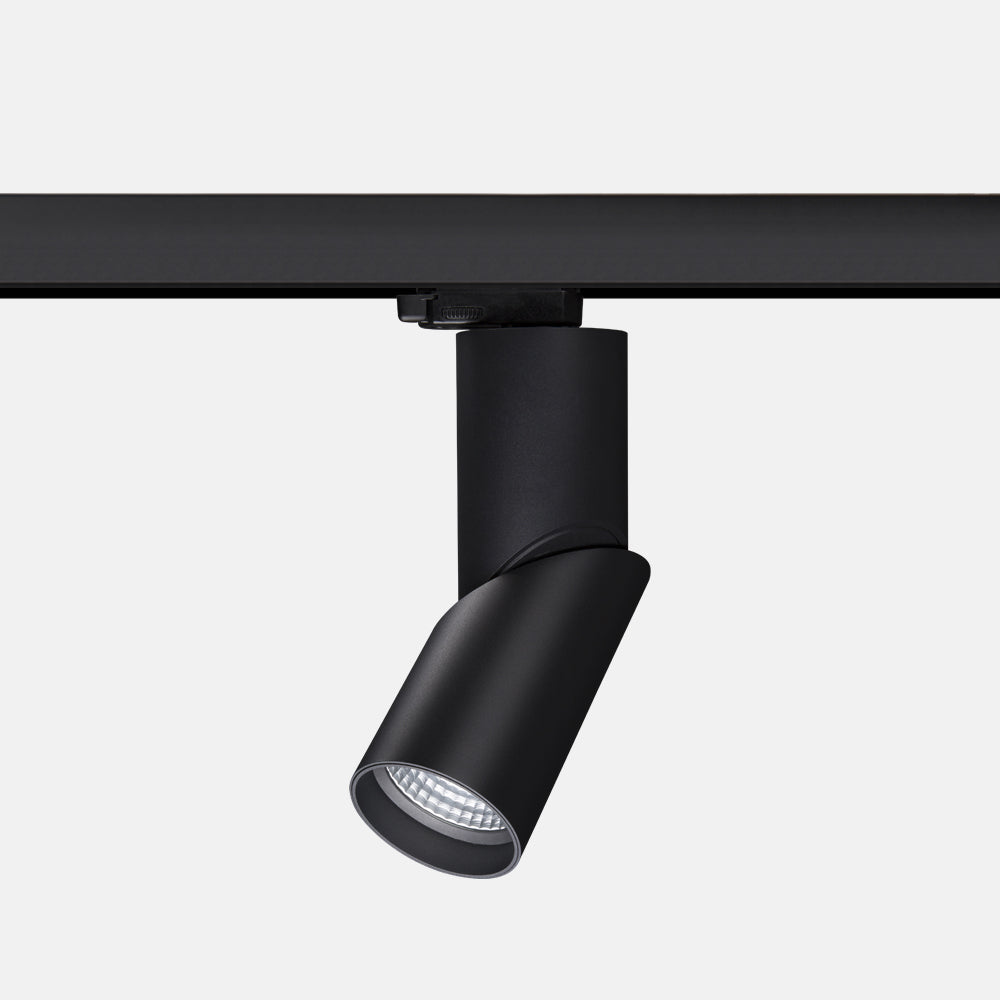

The track spotlight adopts high-quality accessories and professional optical technology , With good color rendering and high brightness . tnot only greatly improves the degree of freedom of light distribution , but also has a wide range of adjustable angles , which can easily match the ideal lighting effect , and meet the design reauirements to the greatest extent.
1 1

AA0012/AA0015/AA0020 (02.106A01000)

Power：12W/15W/20W

Installation method：Track Mounted

Track system：3-circuits,  1-circuit

Options：Non-dim,  Phase dim

Frequency：50/60Hz

LED chip：COB

Light efficiency：81 lm/W

CCT：2700K/3000K/3500K/4000K

CRI：≥90

SDCM：＜3

Adjustibility：355° Rotation | 90° Tilting

Light distribution：Direct

Beam angle：17°/20°/22°

Ingress protection：IP20

Material：Aluminum

Operating temperature：-25°C~50°C

Rated life hours：35,000h~50,000h  LM80

Se komplette oplysninger
Product icon

Download

ALA
ALA
ALA
ALA
ALA

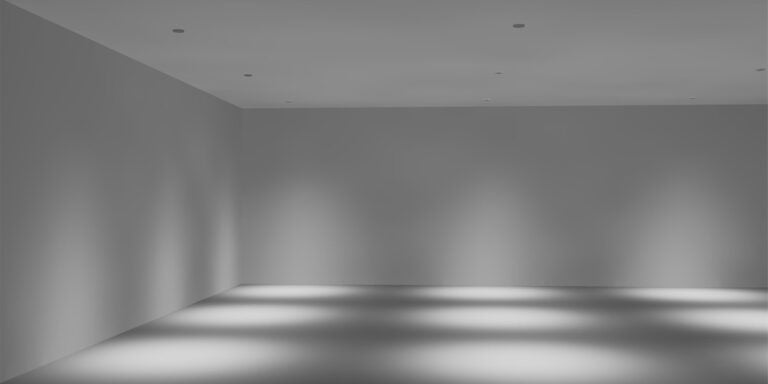

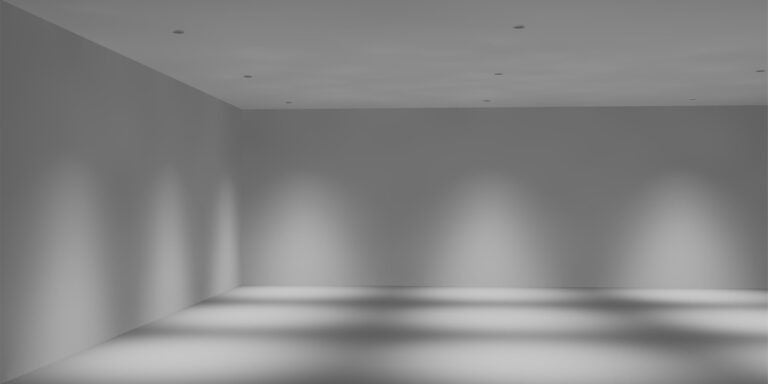

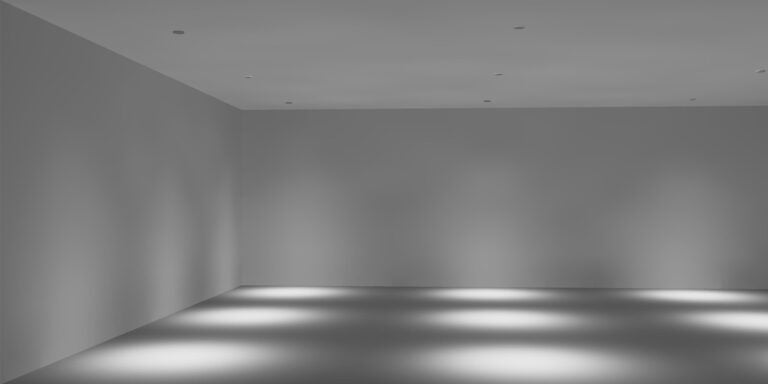

BEAM ANGLE

ALA
ALA
ALA
17°
20°
22°

Applicable Instructions for 17° Illumination

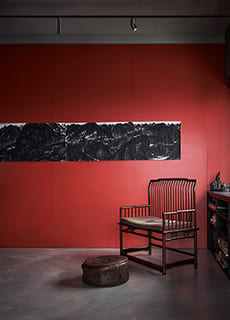

This is an angle suitable for basic lighting，It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
