ALA

02.106

The track spotlight adopts high-quality accessories and professional optical technology , With good color rendering and high brightness . tnot only greatly improves the degree of freedom of light distribution , but also has a wide range of adjustable angles , which can easily match the ideal lighting effect , and meet the design reauirements to the greatest extent.
1 1

Specification

  • 02.106A01000
  • Power：12W/15W/20W
  • Installation method：Track Mounted
  • Cut out：NO
  • Dimming：Depending on driver
  • Frequency：50/60HZ
  • LED：COB
  • Lumen：81lm/w
  • CCT：2700K/3000K/3500K/4000K
  • CRI：≥90
  • SDCM：＜3
  • Adjustibility：355° Rotation | 90° Tilting
  • Light distribution：Direct
  • Beam angle：17°/20°/22°
  • Protection class：IP20
  • Material：Aluminum
  • Environment temperature：-25°C~50°C
  • LED life Time：  35,000h~ 50,000h – L80
Se komplette oplysninger
Product icon

Download

A01 Ala
A01 Ala
A01 Ala
A01 Ala
A01 Ala

BEAM ANGLE

A01 Ala
A01 Ala
A01 Ala
17°
20°
22°

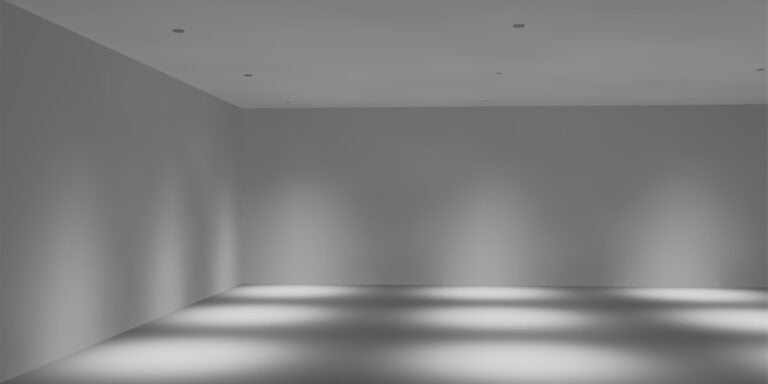

Applicable Instructions for 17° Illumination

This is an angle suitable for basic lighting. It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
