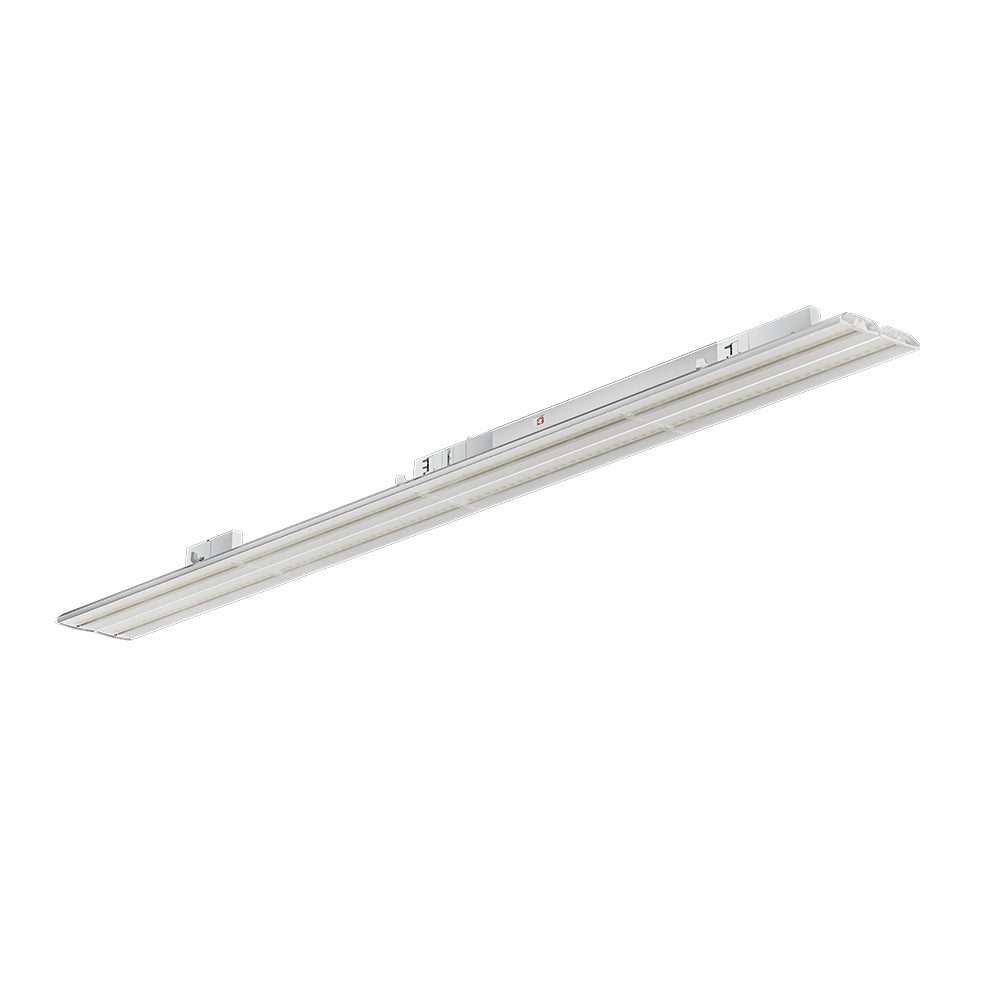

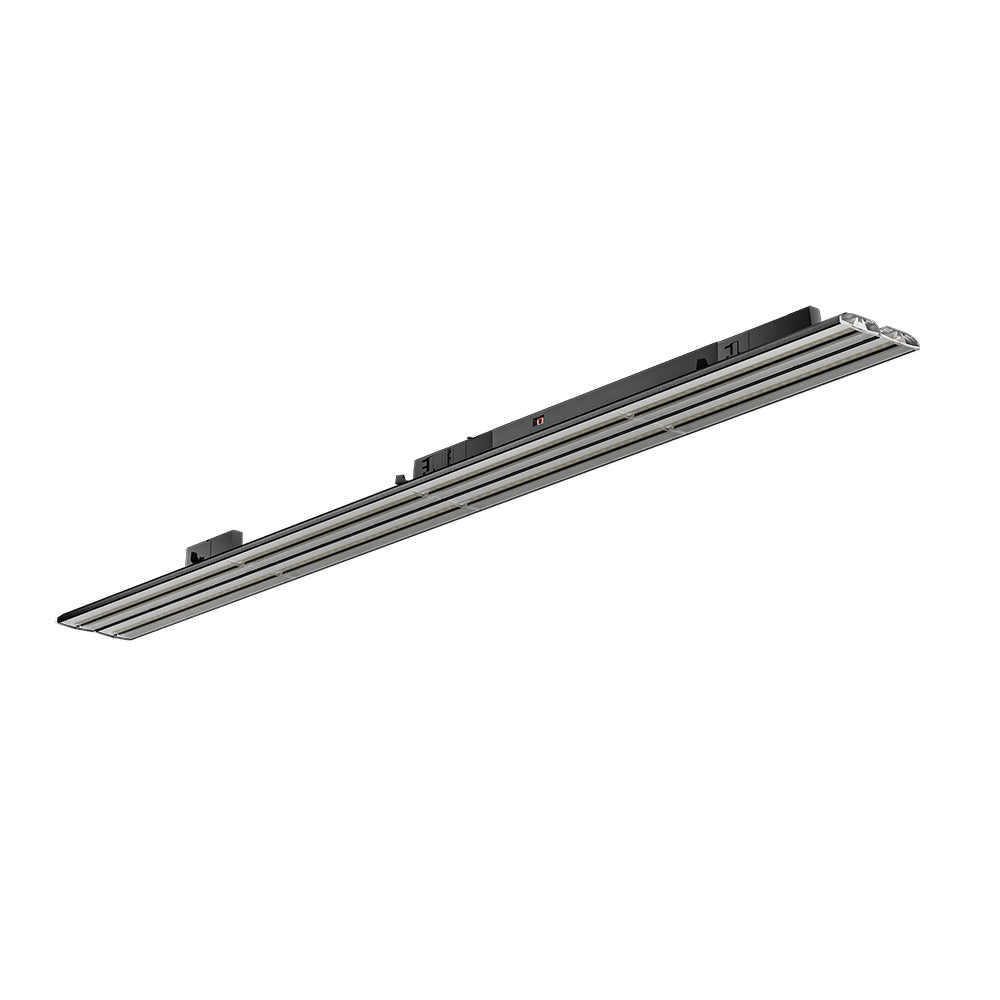

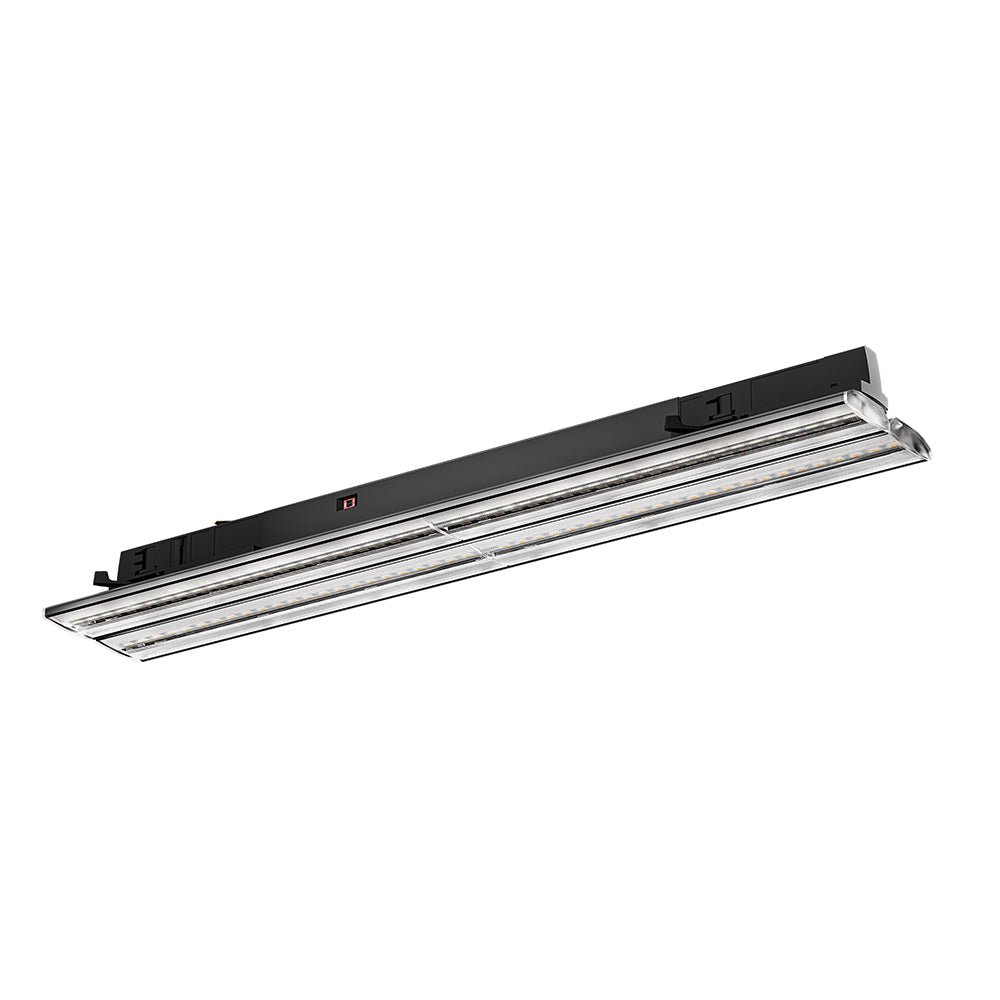

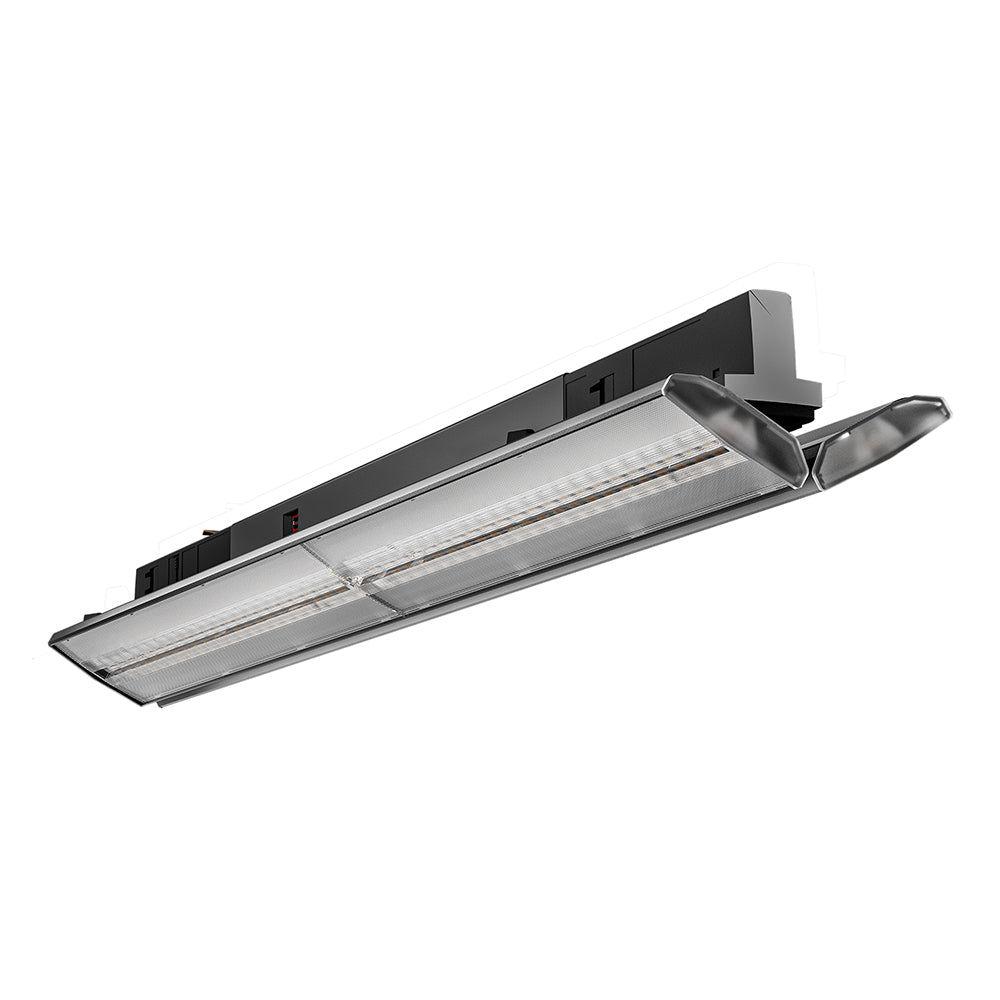

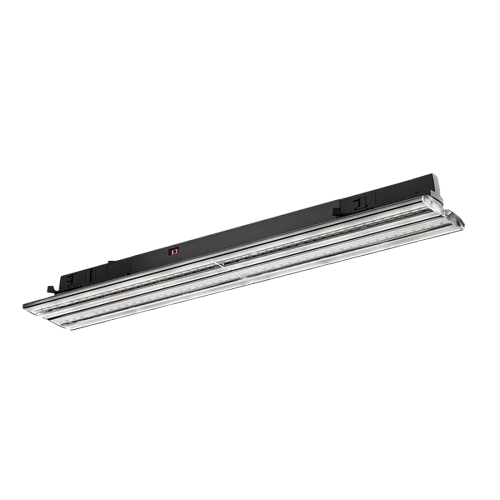

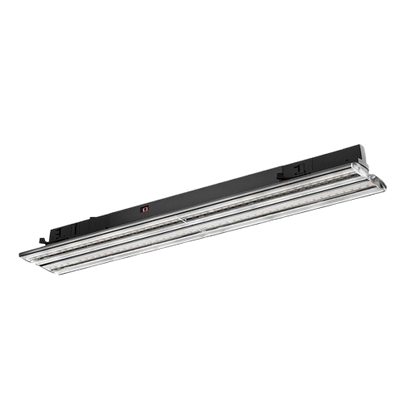

THTL-100-406-50

Flexibly Combine with track spotlights.
1 5

Production Description

Flexibly Combine with track spotlights.

Application

Commercial
Industrial
Retail

Specifications

  • Model: THTL-100-406-50
  • Dimensions: 600 × 100 × 60 mm
  • Input Voltage: 220–240 VAC
  • Frequency: 50/60 Hz
  • Output Power (DIP Switch Selectable): 35W / 40W / 45W / 50W
  • Output Current: 400 mA
  • Power Factor: PF > 0.9
  • Lumen Output: 9000 lm
  • Luminous Efficiency: 160 lm/W
  • CRI: Ra > 80, 90
  • CCT: 3000K / 4000K / 5000K / 6000K / 6500K
  • LED Type: SMD LED
  • Beam Angle: 30°
  • Ripple: < 5%
  • Protection Rating: IP20
  • Lifespan: 50,000 Hours
  • Warranty: 5 Years







Se komplette oplysninger

Downloads

IES LDT SPECIFICATIONS DRAWINGS INSTALLATION INSTRUCTIONS
