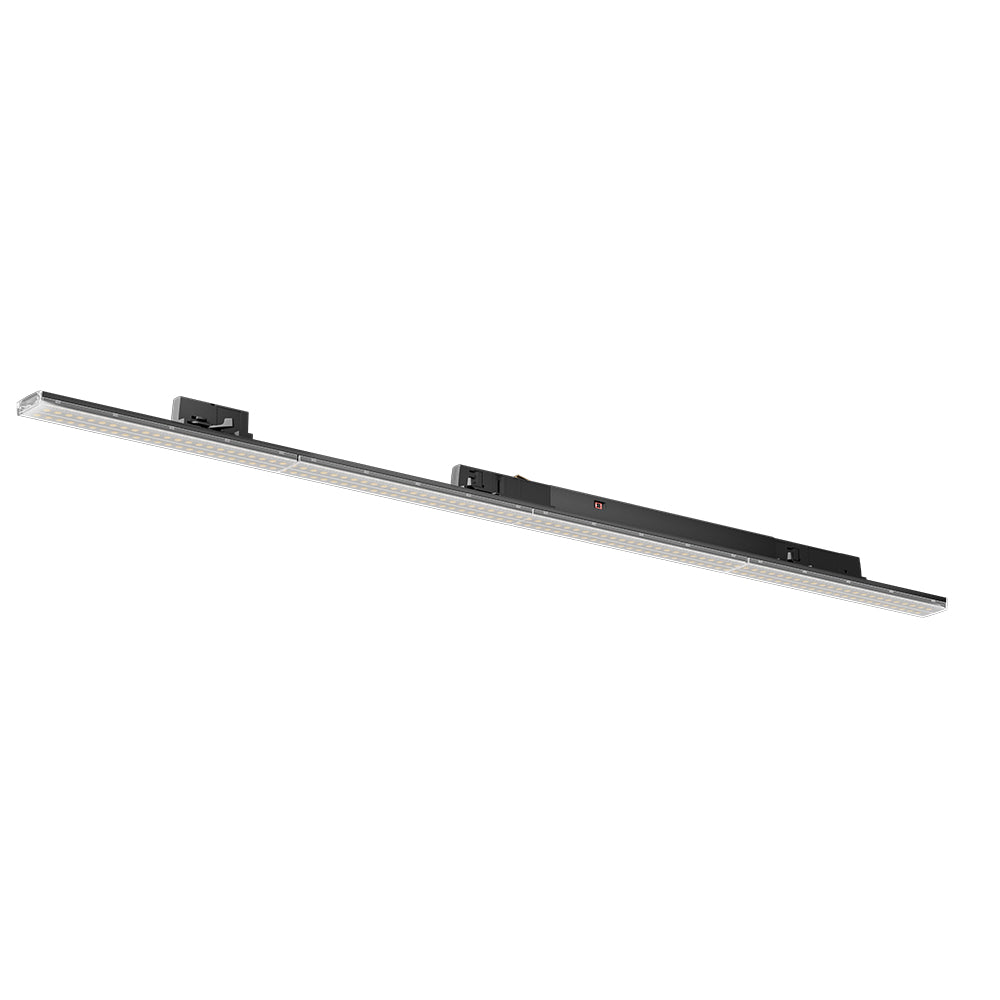

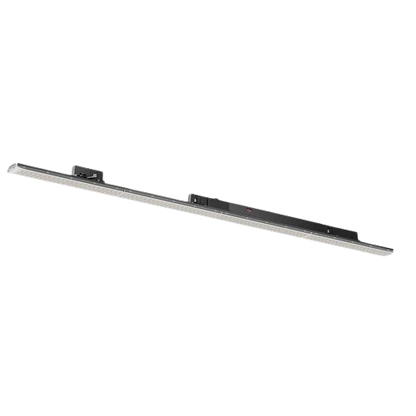

TH-IL-45-406-30

Production Description

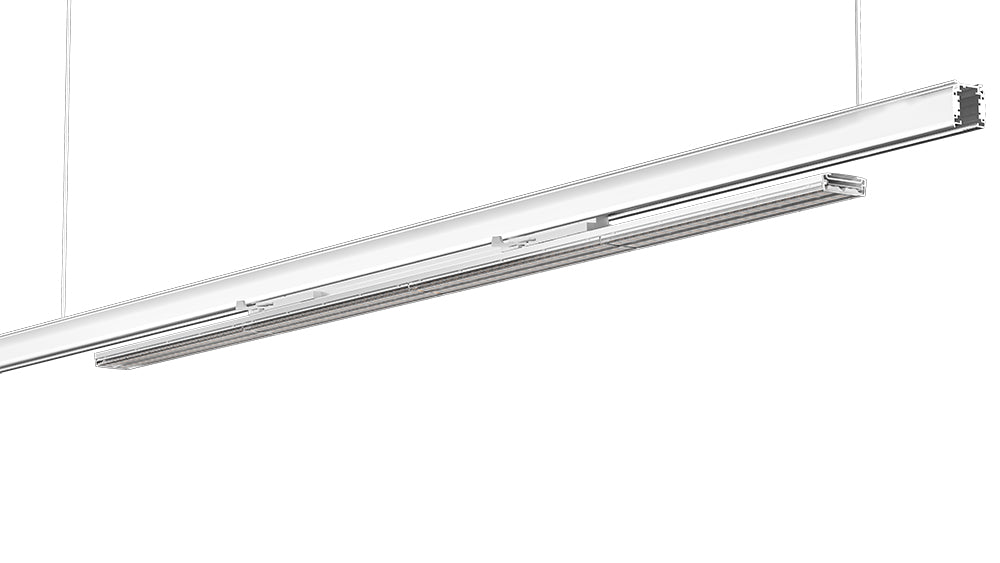

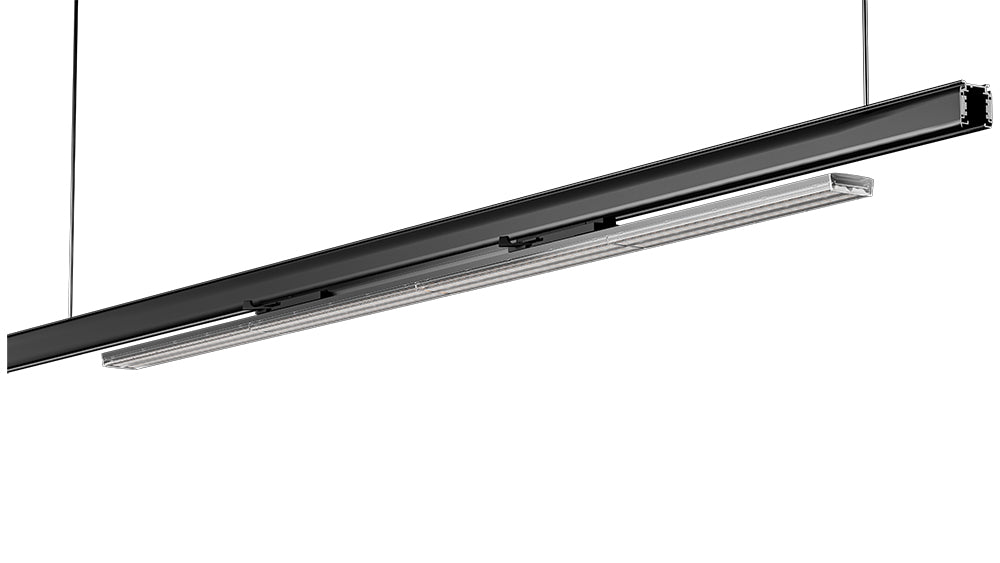

Flexibly combine with track spotlights.

Applications

• Commercial
• Industrial
• Retail

Specifications

• Model: TH-IL-45-406-30
• Dimensions: 600 × 45 × 50 mm
• Input Voltage: 220–240 VAC
• Frequency: 50/60 Hz
• Output Power (DIP Switch Selectable): 15W / 20W / 25W / 30W
• Output Current: 200 mA
• Power Factor: PF > 0.9
• Lumen Output: 5100 lm
• Luminous Efficiency: 170 lm/W
• CRI: Ra > 80, 90
• CCT: 3000K / 4000K / 5000K / 6000K / 6500K
• Beam Angle: 90° / 120° / Double Asymmetric
• Ripple: < 5%
• Protection Rating: IP20
• Lifespan: 50,000 Hours
• Warranty: 5 Years
• Net Weight: 0.65 kg
• Packing Quantity: 20 pcs/CTN
• Carton Size: 620 × 270 × 240 mm
