Star

Name: Star
Brand: LYS
Availability: InStock

01.002A01000

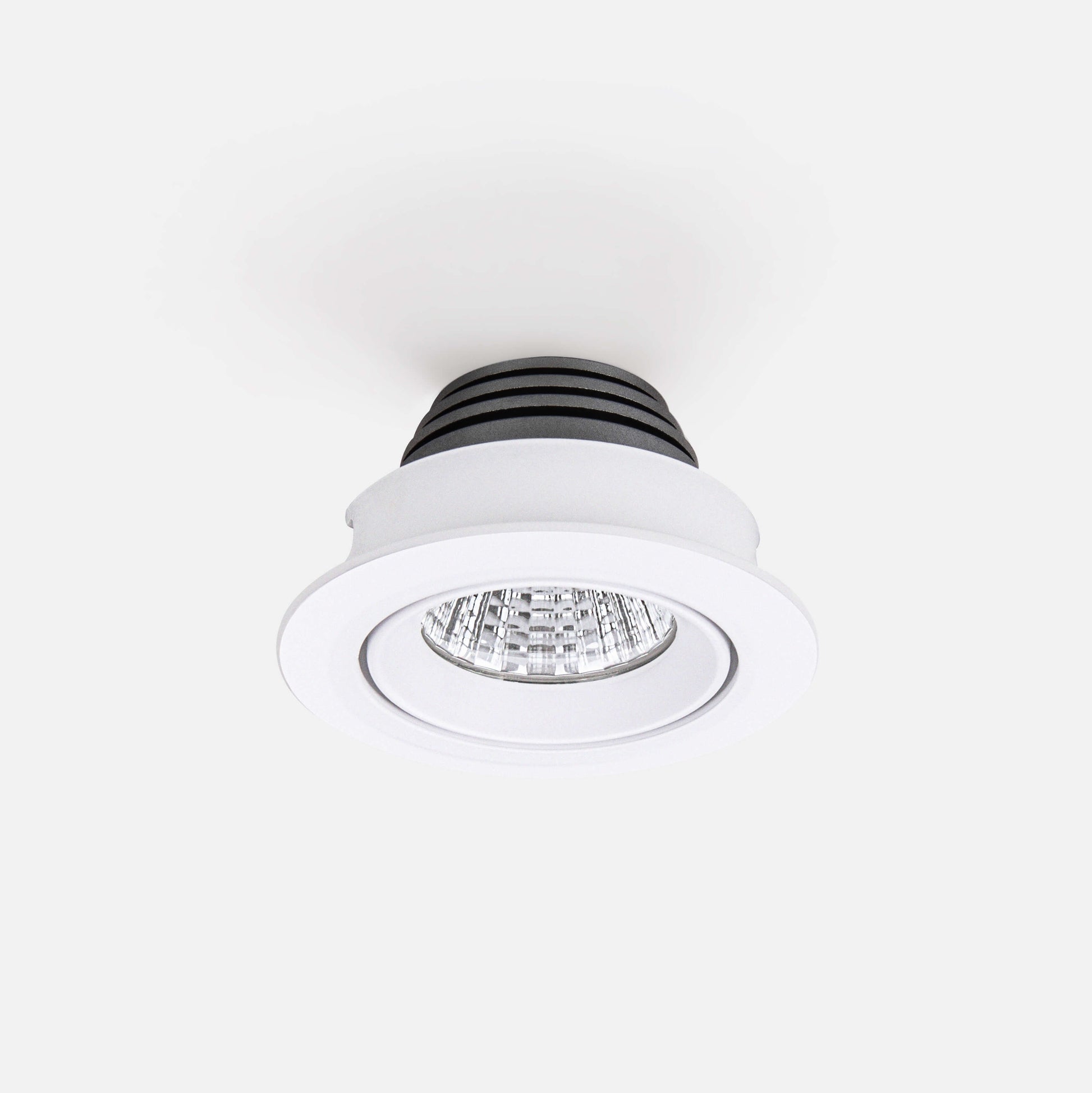

Star is a low-power and environmentally friendly ceiling-embedded LED lamp. The star has 4 color temperature adjustable,and is equipped with DALI, BLE and other dimming technologies, and has an adjustable angle of 30° and a 17-33° adjustable angle.Beam angle, perfect for any smart accent lighting that requires indoor or outdoor intelligence.And the use of Purui C8 light-emitting chip, the reduction of dizziness andThe high degree of restoration of natural colors make the star’s light feel comfortable and pleasant like being in nature.

1 1

Specification

ST0003/ST0006 (01.002A01000)

Power：3W/6W

Installation method：Recessed

Cut out：φ60mm

Options：Non-dim, Phase dim, 0/1-10V, DALI, Bluetooth, ZigBee

Frequency：50/60Hz

LED chip：COB

Light efficiency：63 lm/W

CCT：2700K/3000K/3500K/4000K

CRI：≥90

SDCM：＜3

Adjustibility：15° Tilting

Light distribution：Direct

UGR：＜19

Beam angle：17°/23°/33°

Ingress protection：IP20

Material：Aluminum

Operating temperature：-25°C~50°C

Rated life hours：35,000h~50,000h LM80

Se komplette oplysninger

Download

17°

23°

33°

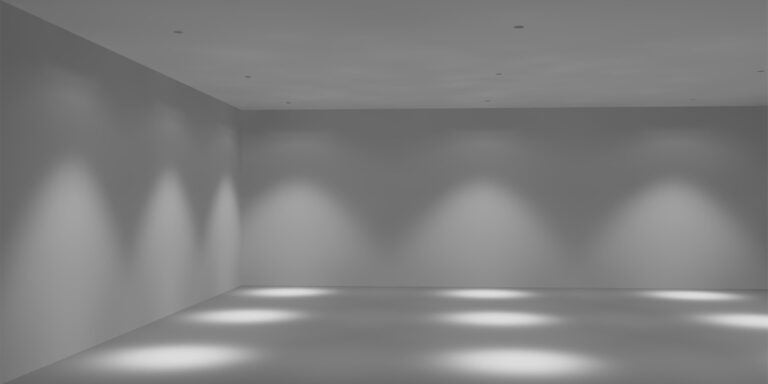

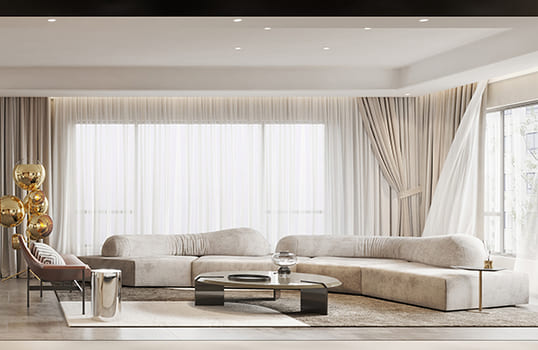

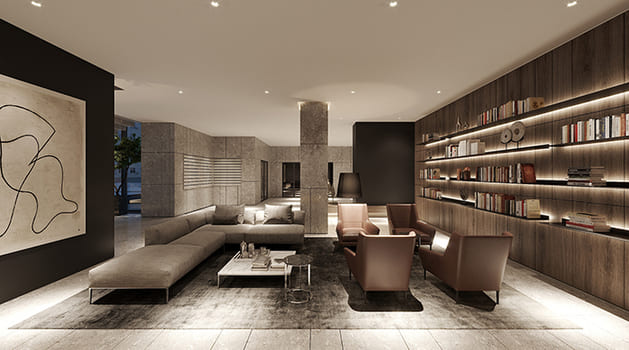

Applicable Instructions for 17° Illumination

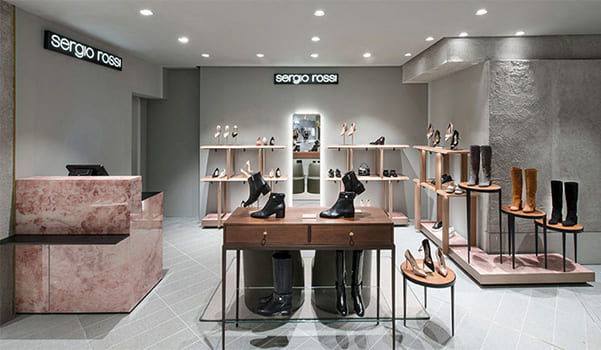

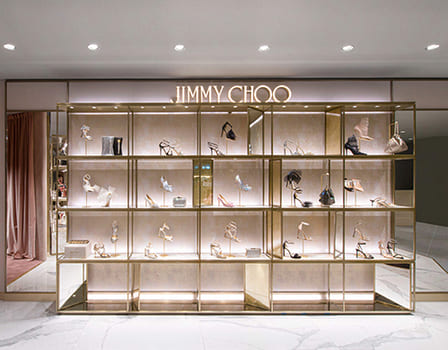

This is an angle suitable for basic lighting， It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
