Smart

01.172A02000

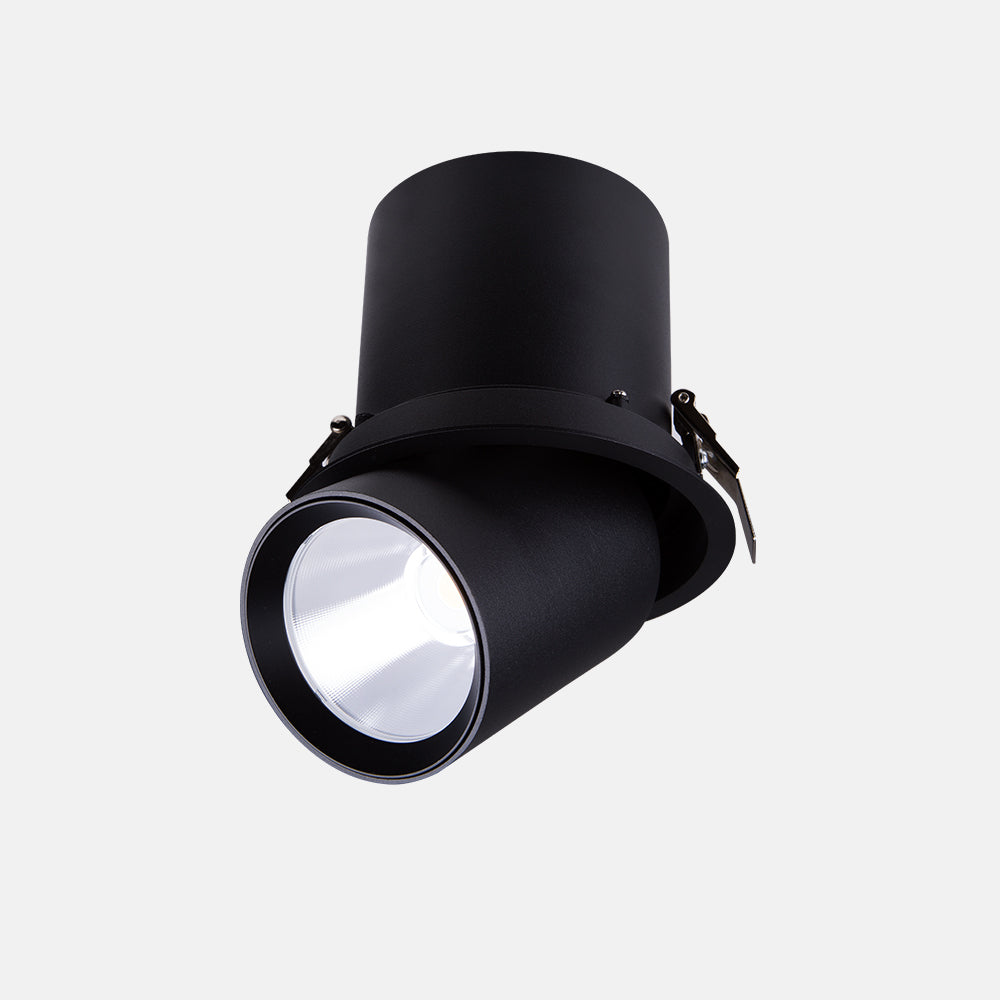

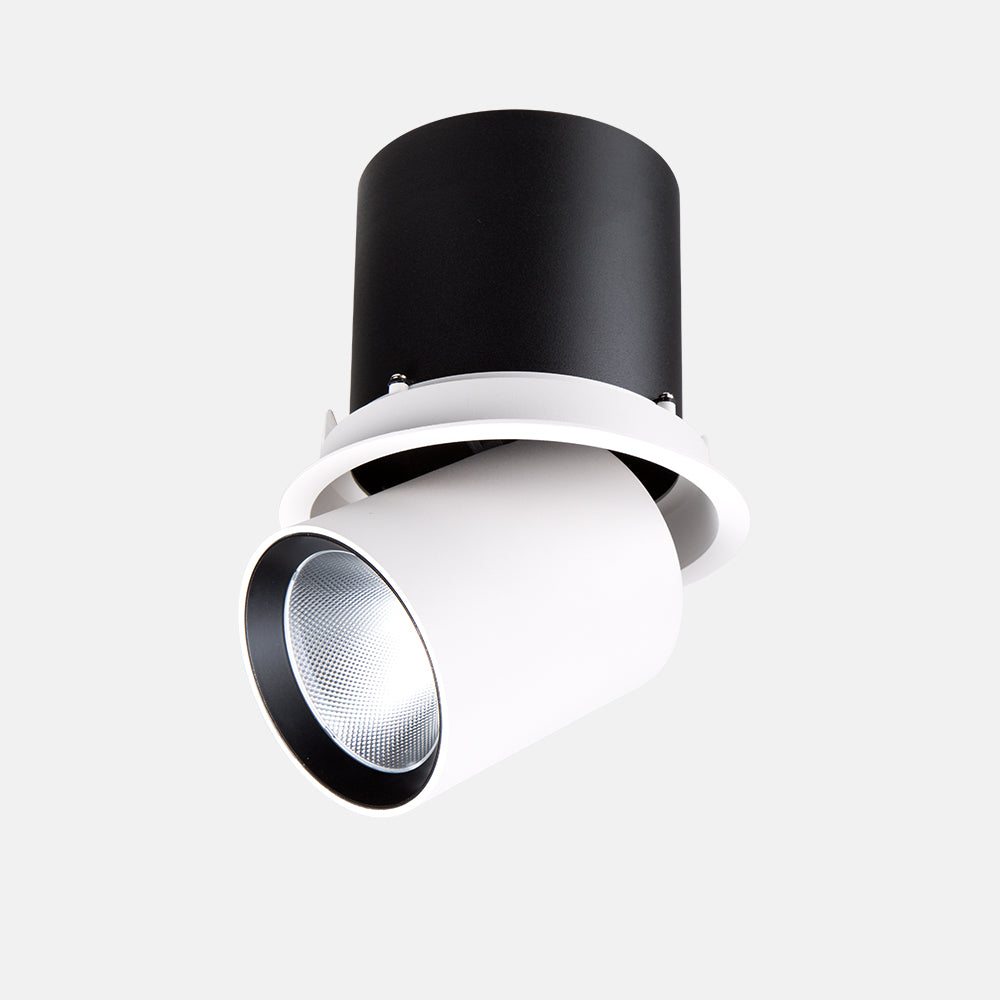

The product has unique design structure, Stretchable , Adjustable , Deep and anti-glare.

1 2

Specification

Power：25W/30W

Installation method：Recessed

Cut out：φ140mm

Options：Non-dim, Phase dim, 0/1-10V, DALI, Bluetooth, ZigBee

Frequency：50/60Hz

LED chip：COB

Light efficiency：95 lm/W

CCT：2700K/3000K/3500K/4000K

CRI：≥90

SDCM：＜3

Adjustibility： 355° Rotation | 60° Tilting

Light distribution：Direct

UGR：＜19

Beam angle：16°/21°/33°/50°

Ingress protection：IP20

Material：Aluminum

Operating temperature：-25°C~50°C

Rated life hours：35,000h~50,000h LM80

Se komplette oplysninger

Download

BEAM ANGLE

Smart

Smart

Smart

Smart

16°

21°

33°

50°

Applicable Instructions for 16° Illumination

This is an angle suitable for basic lighting，It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
