Pool

Name: Pool
Brand: LYS
Availability: InStock

01.170E02

The product adopt superior aluminum, precision optics lens, high quality reflector.every single part has been elaborate design, to achieve more perfect lighting effect.

1 1

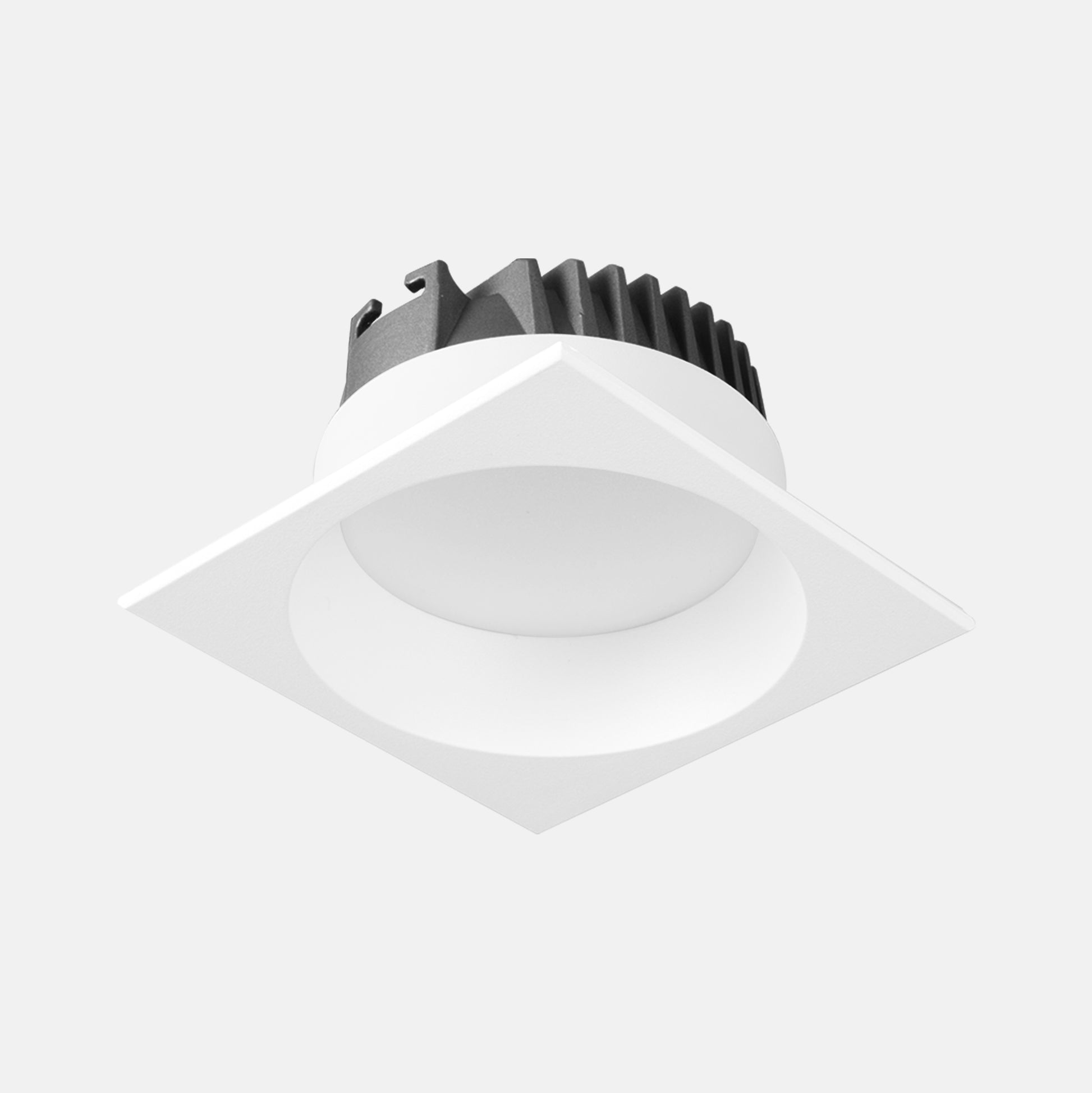

PL0007/PL0010 (01.170E02000)

Power：7W/10W

Installation method：Recessed

Cut out：φ90mm

Options：Non-dim, Phase dim, 0/1-10V, DALI, Bluetooth, ZigBee

Frequency：50/60Hz

LED chip：SMD

Light efficiency：92 lm/W

CCT：3000K/4000K/6000K/3000K-6000K

CRI：≥80/90

SDCM：＜3

Adjustibility：No

Light distribution：Direct

Beam angle：90°

Ingress protection：IP20

Material：Aluminum

Operating temperature：-25°C~50°C

Rated life hours：35,000h~50,000h LM80

Se komplette oplysninger

Download

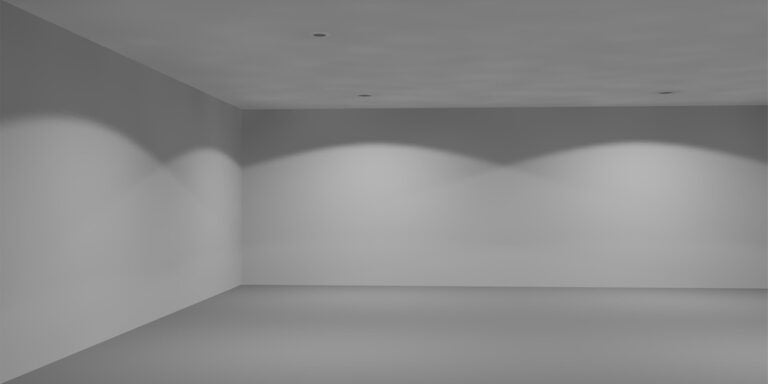

BEAM ANGLE

90°

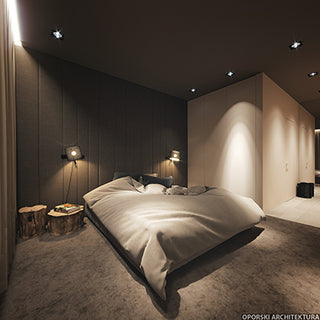

Applicable Instructions for 90° Illumination

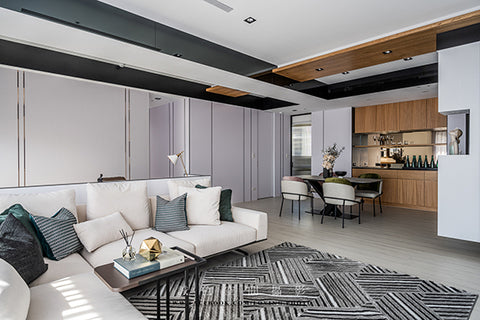

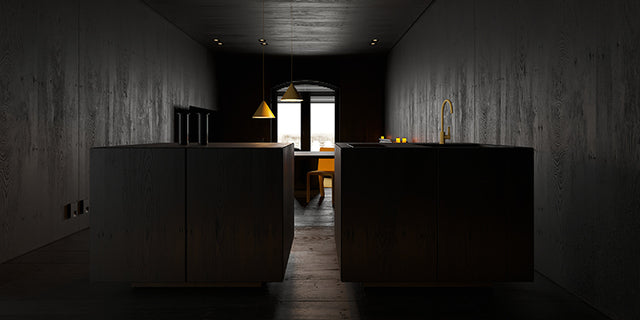

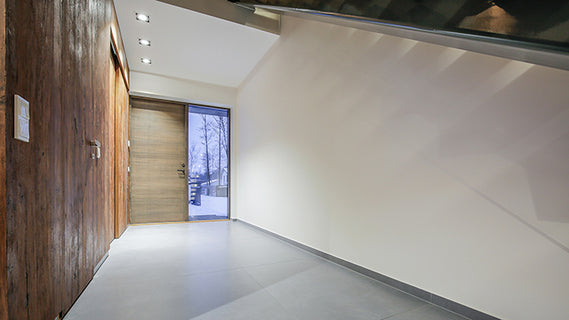

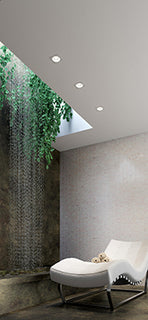

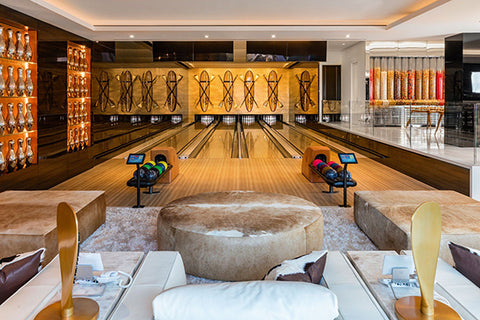

This is an angle suitable for basic lighting， It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
