A01

Pole

02.097

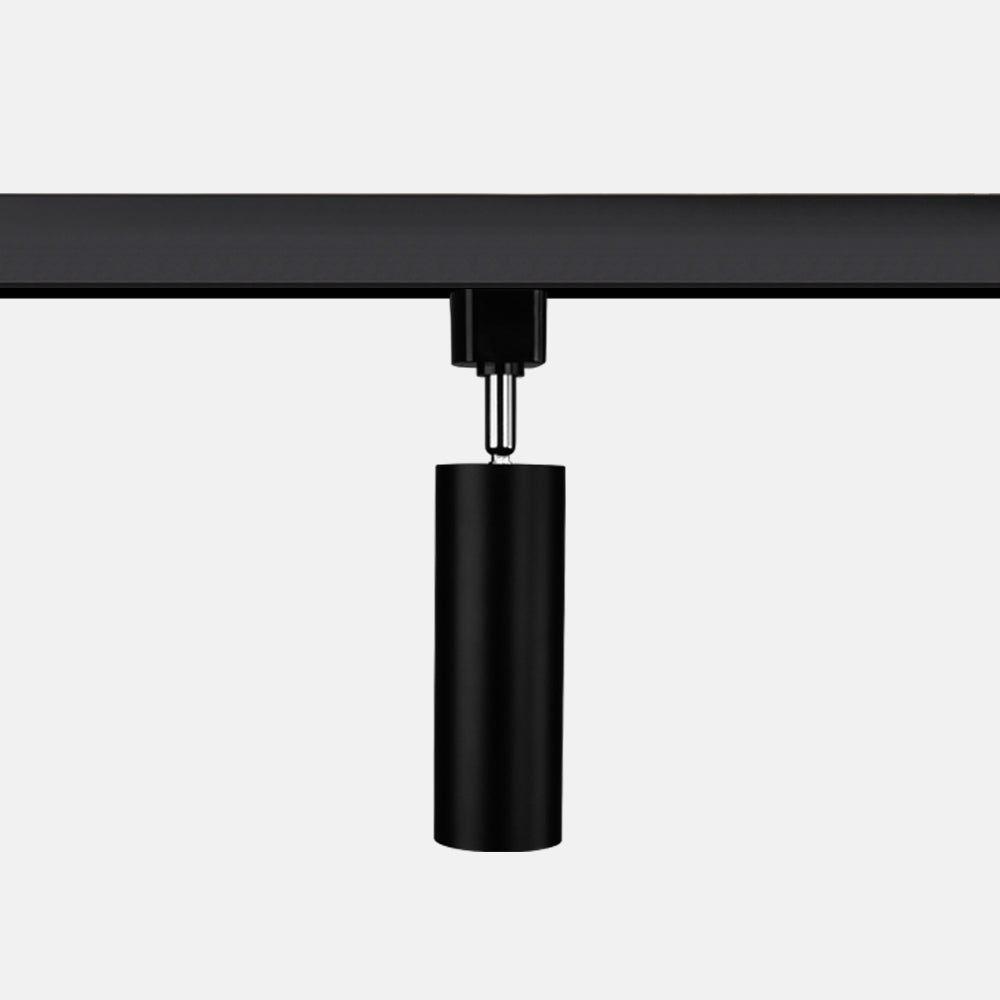

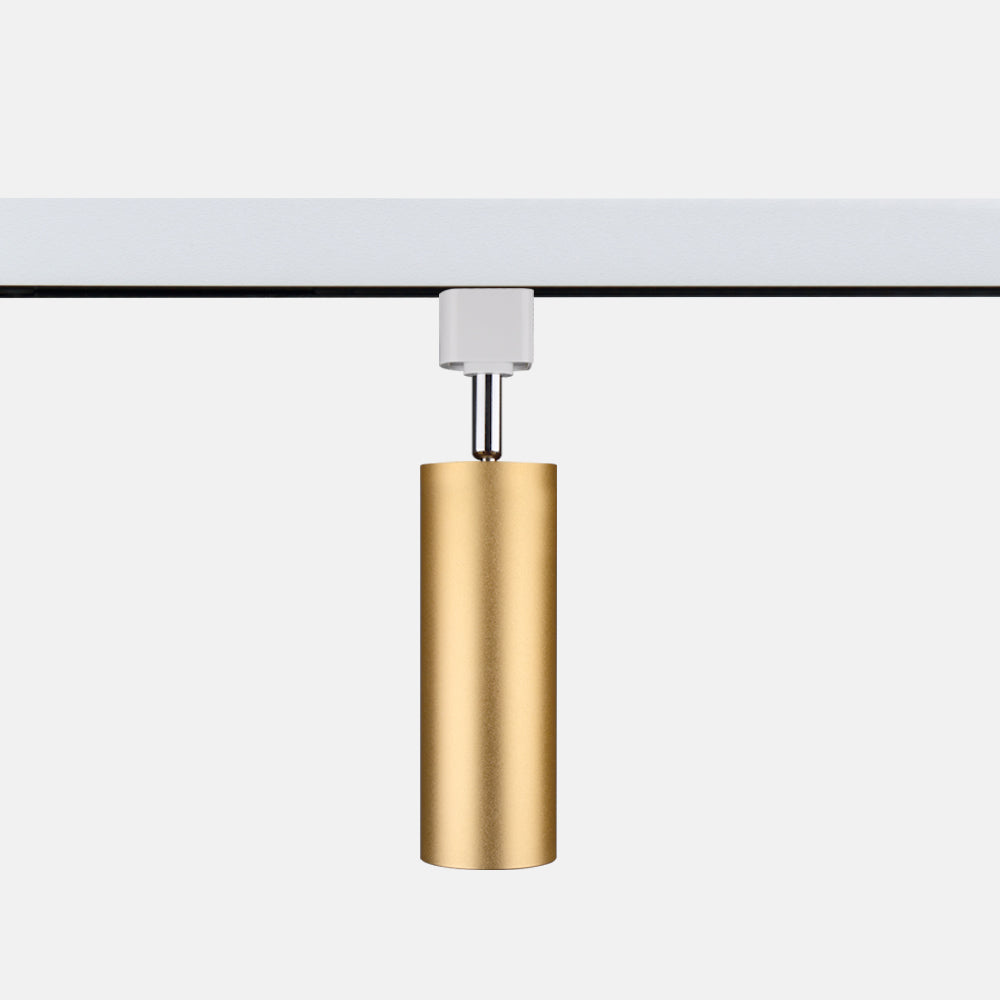

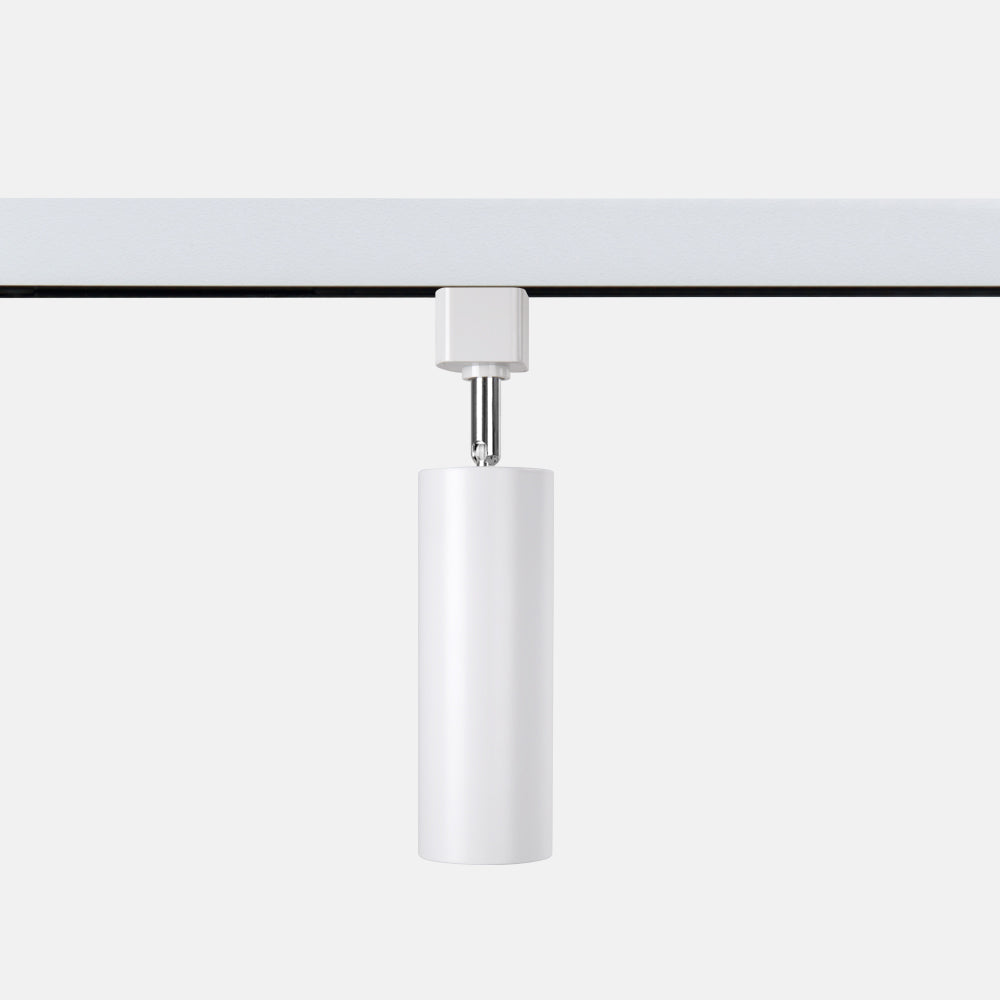

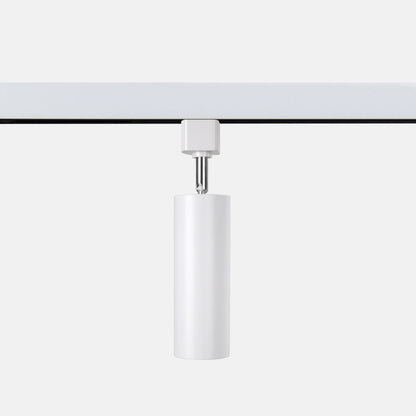

The track spotlight adopts high-quality accessories and professional optical technology , with good color rendering and high brightness . The adjustable angle range is wide , Which can be easily matched with the ideal lighting effect.

1 3

02.097A01000

Power：12W

Installation method：Track Mounted

Track system：3-circuits, 1-circuit

Options：Non-dim, Phase dim, 0/1-10V

Frequency：50/60Hz

LED chip：COB

Light efficiency：71 lm/W

CCT：2700K/3000K/3500K/4000K

CRI：≥90

SDCM：＜3

Adjustibility：355° Rotation | 90° Tilting

Light distribution：Direct

Beam angle：19°/25°/35°

Ingress protection：IP20

Material：Aluminum

Operating temperature：-25°C~50°C

Rated life hours：35,000h~50,000h LM80

Se komplette oplysninger

Download

BEAM ANGLE

Pole

Pole

Pole

19°

25°

35°

Applicable Instructions for 19° Illumination

This is an angle suitable for basic lighting，It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
