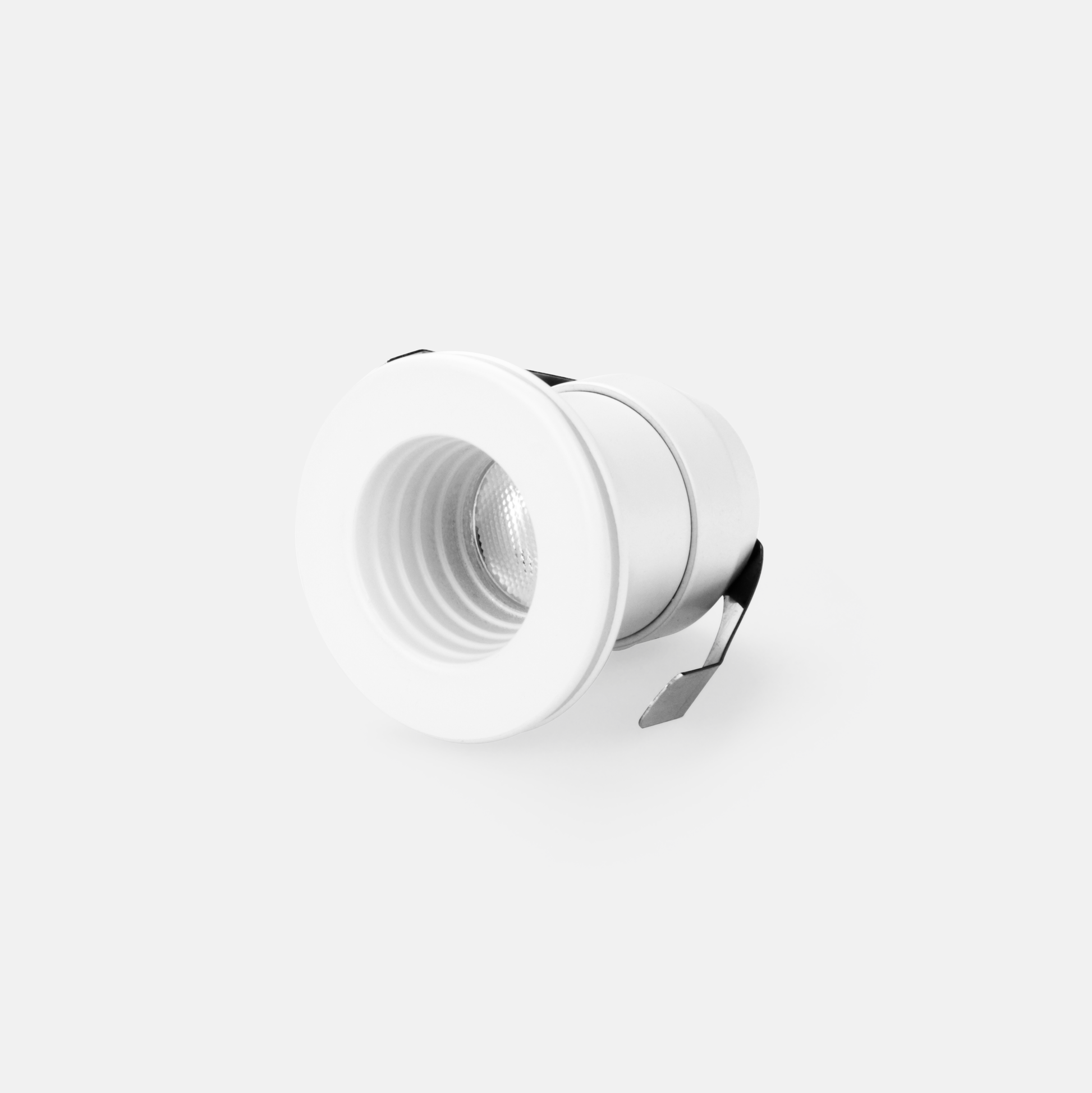

Point

01.001A01000

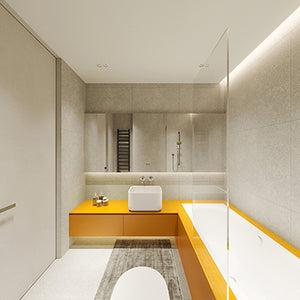

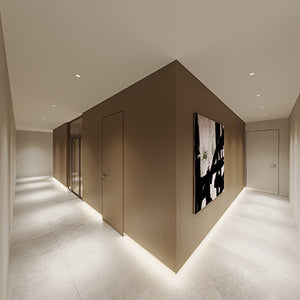

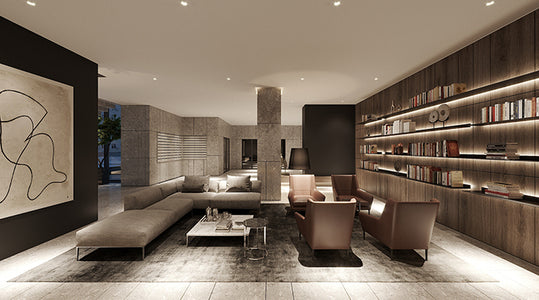

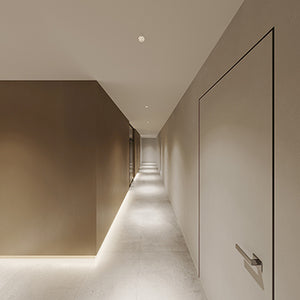

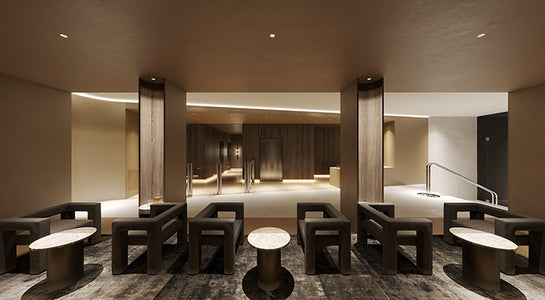

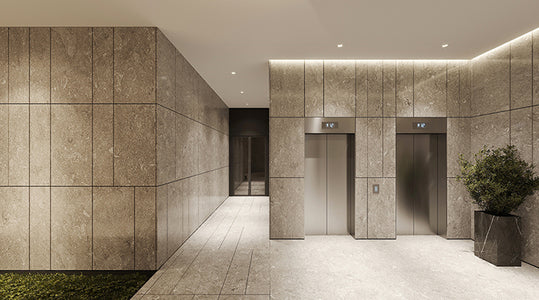

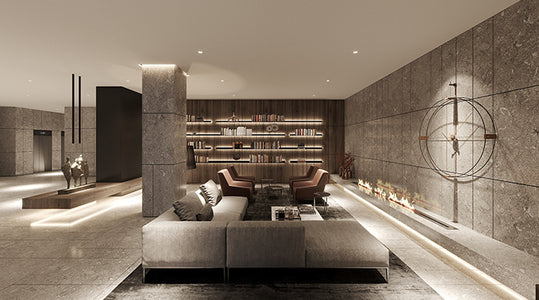

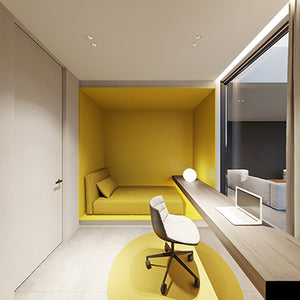

Point is a new type of embedded intelligent lighting installed on the ceiling, the thickness of the ceiling is at least 65mm; Point uses Preh’s 3535 high-quality chip, high luminous flux, high color rendering performance of RA>90, with the product’s own direct light and multi-color rendering The color temperature configuration feature makes things more beautiful and highly restores natural colors; it can produce pleasant ambient light in any space; in addition, it is a double-insulated, grounding-free safety class II light, and it is also a smart light . Including wireless dimming technologies such as dali, ble, zugbee, etc., to deal with all smart scenarios.
Gå til produktoplysninger
1 af 1

Specification

PI0003 (01.001A01000)

Power:3W

Installation method:Recessed

Cut out:φ35mm

Options:Non-dim,  Phase dim,  0/1-10V,  DALI, Bluetooth,  ZigBee

Frequency:50/60Hz

LED chip:SMD

Light efficiency:58 lm/W

CCT:2700K/3000K/3500K/4000K

CRI:≥90

SDCM:<3

Adjustibility:No

Light distribution:Direct

UGR:<19

Beam angle:16°/25°

Ingress protection:IP20

Material:Aluminum

Operating temperature:-25°C~50°C

Rated life hours:35,000h~50,000h  LM80

Se komplette oplysninger
Product icon

Download

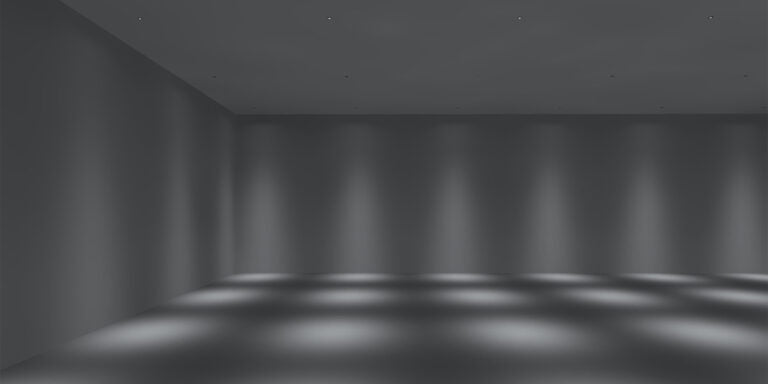

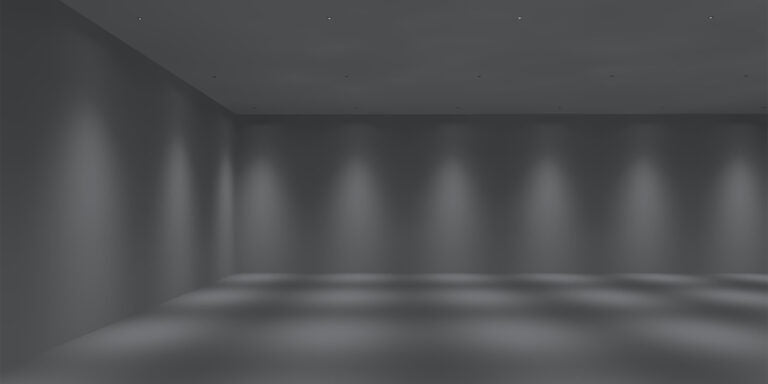

BEAM ANGLE

16°
25°

Applicable Instructions for 16° Illumination

This is an angle suitable for basic lighting,It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
