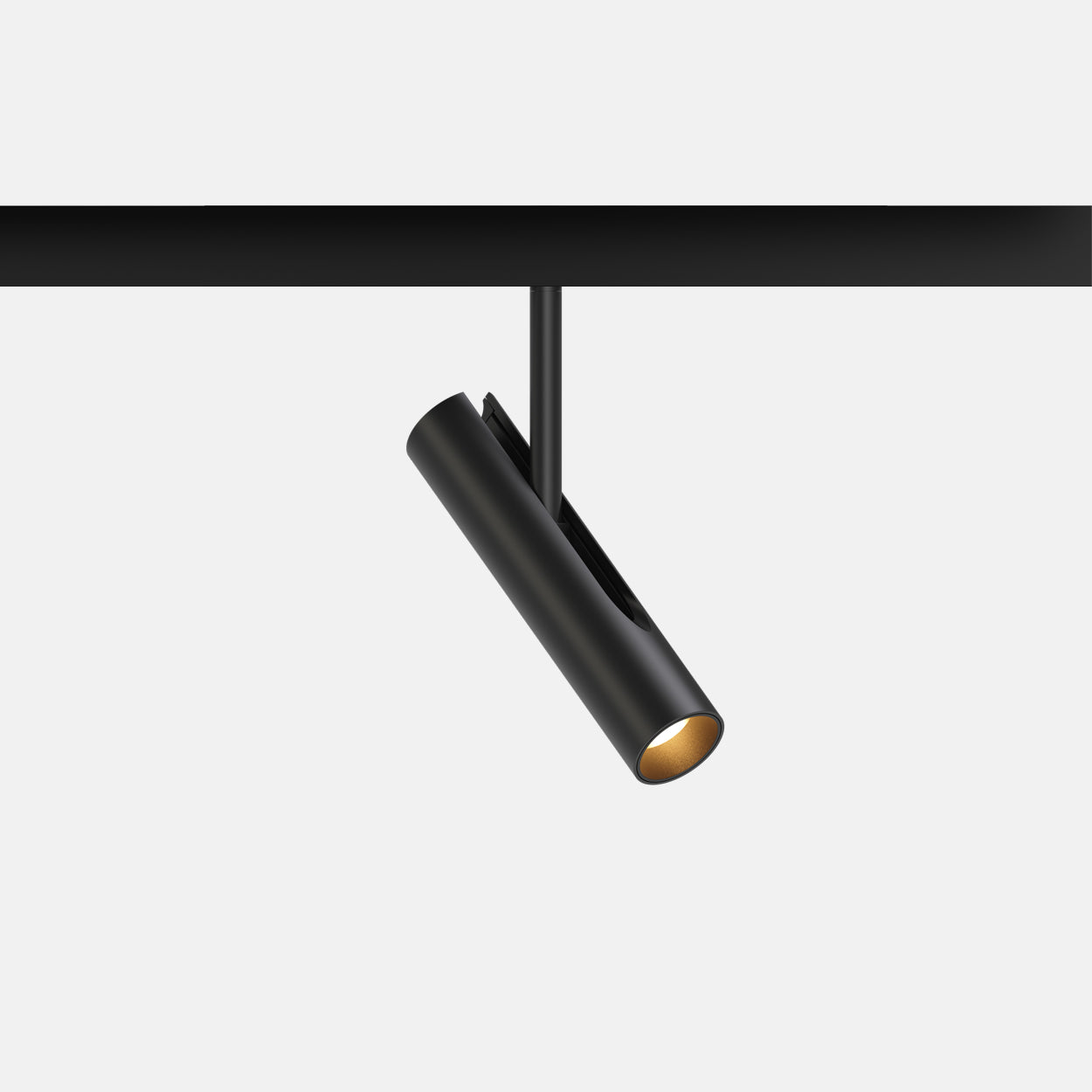

Pivot 160

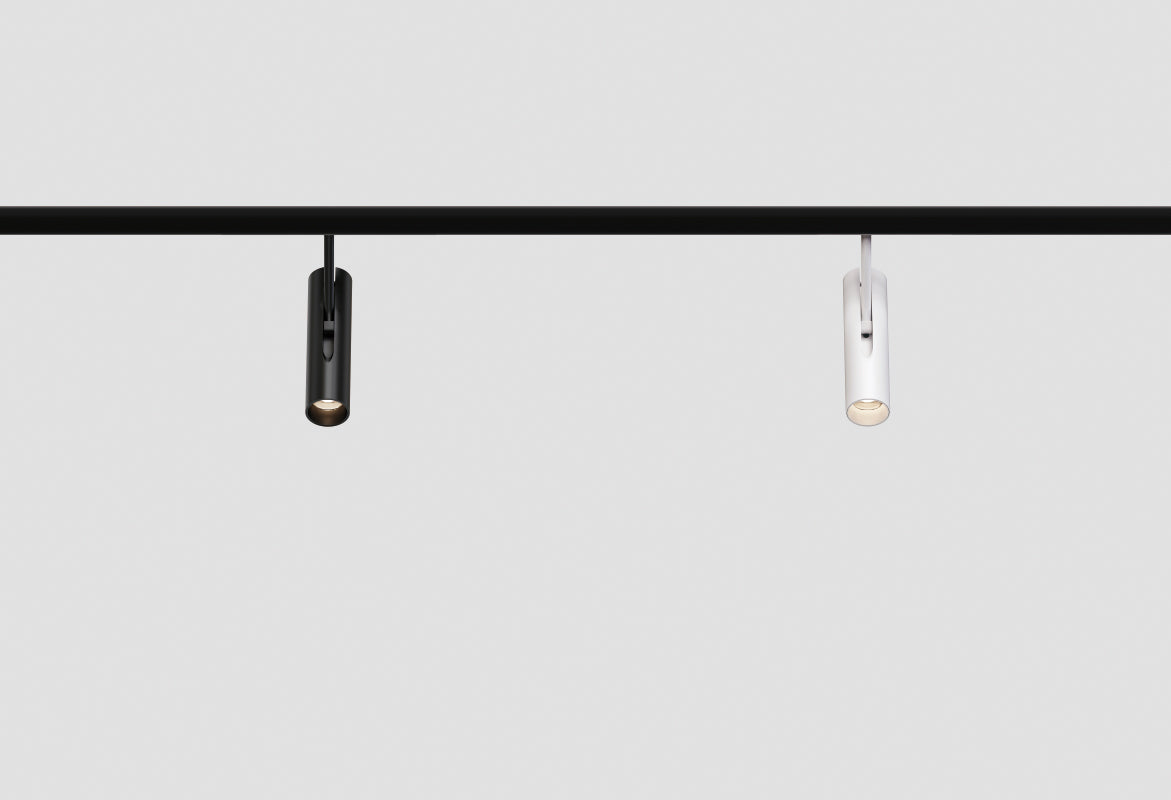

Freestyle design, the compact and powerful Pivot 160 spotlight is mounted on a slender track, providing downward light by rotating the optical compartment 160° and rotating 335° horizontally. The appeal and uniqueness of this spotlight are further enhanced by the ultimate customizable accessories.
1
/
af
1
PV0004 (17.030A01000)
Power: 4W
Installation method: Micro Track
Options: PWM, DALI 2, CASAMBI
Frequency: 50/60Hz
LED chip: COB
Light efficiency: 128 lm/W (light source values)
CCT: 2700K/3000K/3500K/4000K
CRI: >90
SDCM: <3
Adjustibility: 300° Rotation | 160° Tilting
Light distribution: Direct
Beam angle: 24°/32°/38°/50°
Ingress protection: IP20
Material: Aluminum
Operating temperature: -25°C~50°C
Rated life hours: 35,000h~50,000h LM80
