PABLO

02.096A01000

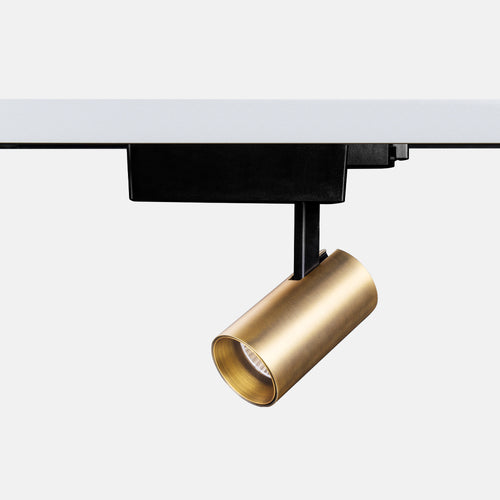

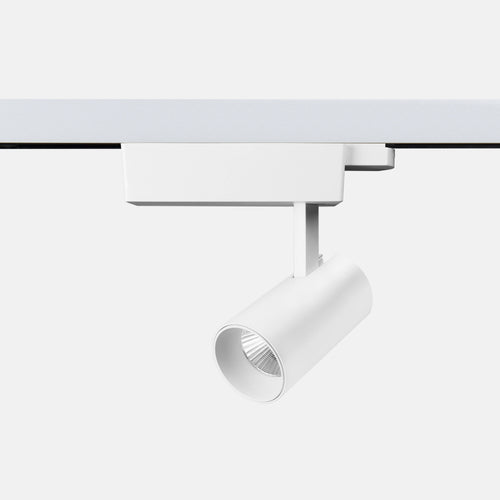

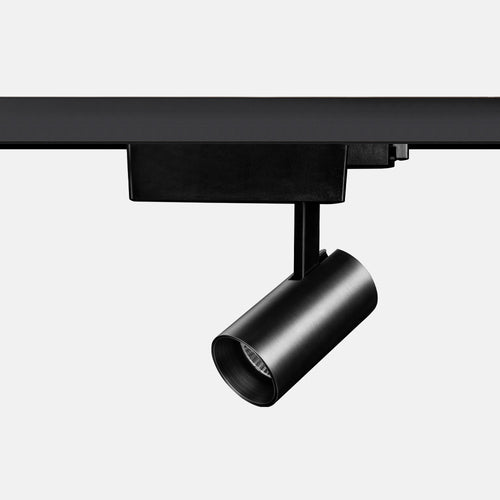

The track spotlight adopts high-quality accessories and professional optical technology, With good color rendering and high brightness. The adjustable angle range is Wide, Which can be easily matched With the ideal lighting eftect

1 3

Specification

02.096A01000
Power：10W/12W/15W
Installation method：Track Mounted
Cut out：NO
Dimming：Depending on driver
Frequency：50/60HZ
LED：COB
Lumen：83lm/w
CCT：2700K/3000K/3500K/4000K
CRI：≥90
SDCM：＜3
Adjustibility：355° Rotation | 90° Tilting
Light distribution：Direct
UGR：＜22
Beam angle：15°/25°/38°/50°
Protection class：IP20
Material：Aluminum
Environment temperature：-20°C~40°C
LED life Time： 35,000h~ 50,000h – L80

Se komplette oplysninger

Download

BEAM ANGLE

PABLO S

PABLO S

PABLO S

PABLO S

15°

25°

38°

50°

Applistrcable Inuctions for 15° Illumination

This is an angle suitable for basic lighting. It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
