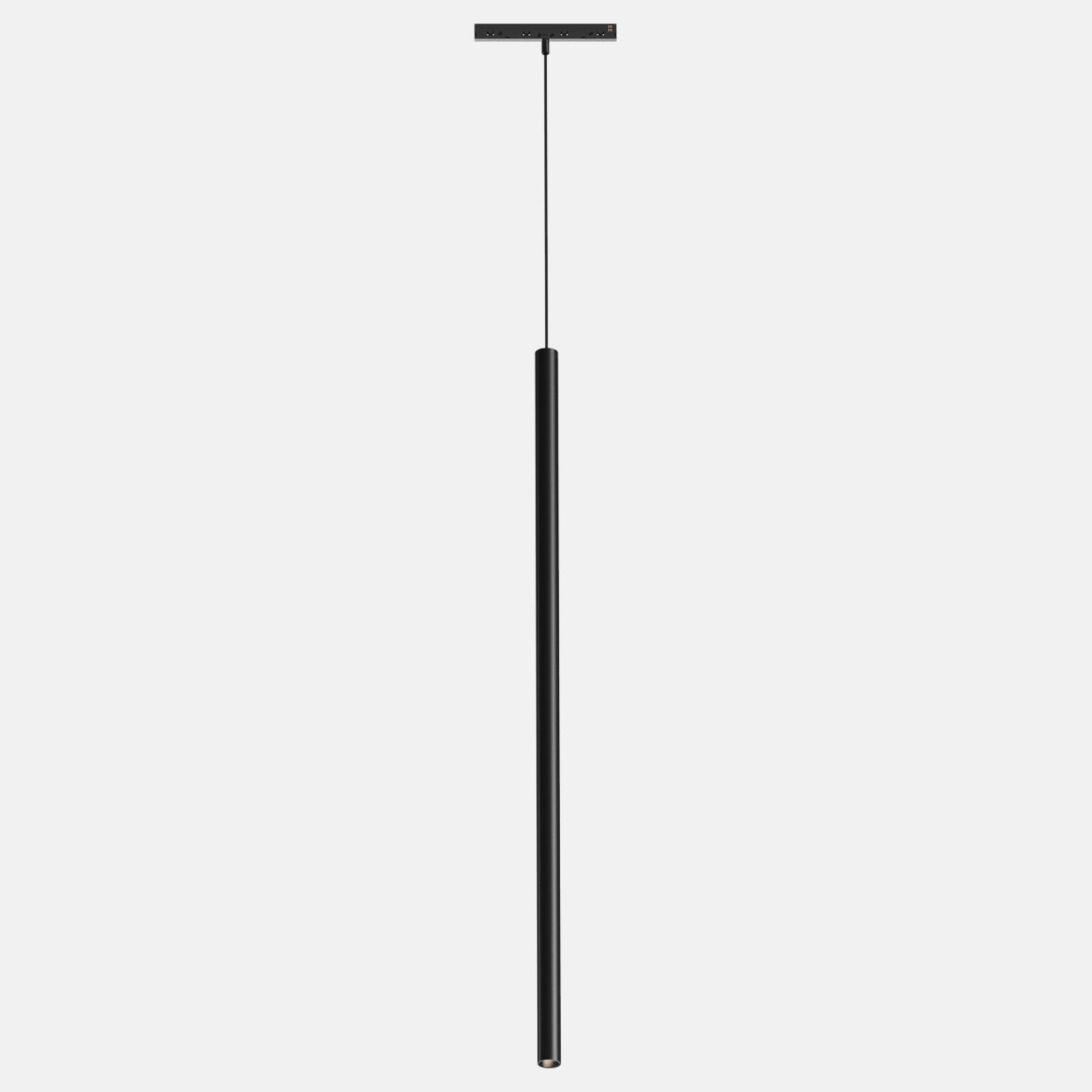

Mino
The refined form of the 48V track combined with the elegant simplicity of the system fixtures creates a beautiful whole: simple, logical, and high-quality.
1
/
af
1
Specification
MN0206 (17.033A08000)
Power: 6W
Installation method: Micro Track
Options: PWM, DALI 2, CASAMBI
Frequency: 50/60Hz
LED chip: COB
Light efficiency: 95 lm/W (light source values)
CCT: 2700K/3000K/3500K/4000K
CRI: >90
SDCM: <3
Adjustibility: No
Light distribution: Direct
Beam angle: 24°/32°/37°/48°
Ingress protection: IP20
Material: Aluminum
Operating temperature: -25°C~50°C
Rated life hours: 35,000h~50,000h LM80
