LINEAR

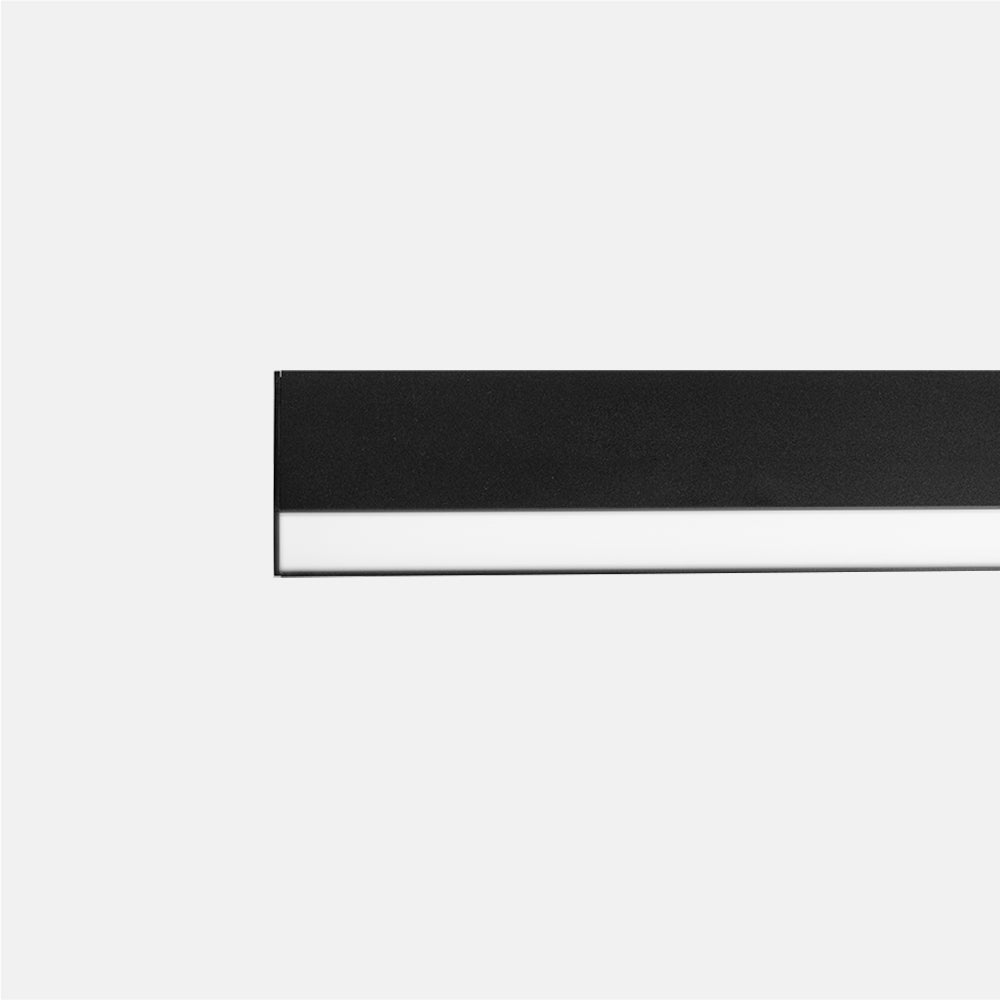

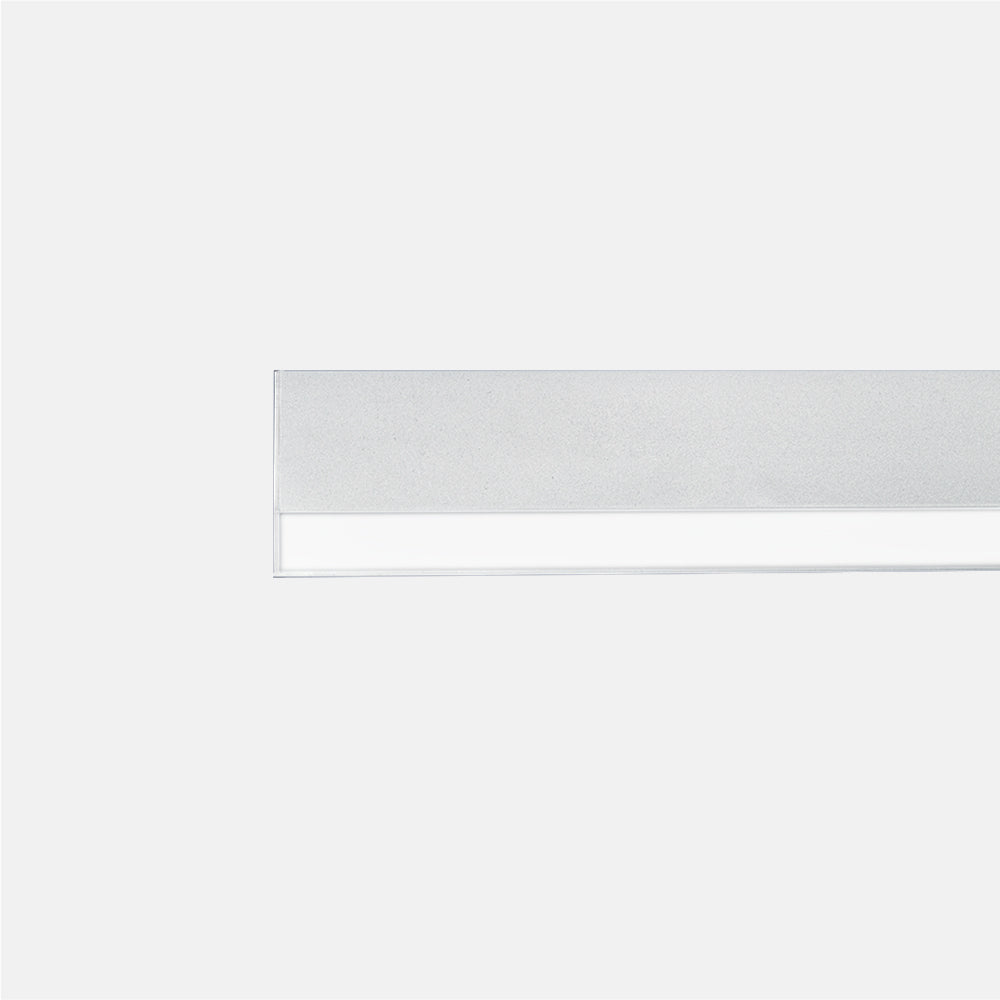

Name: LINEAR B
Brand: LYS
Availability: InStock

04.001B12000

The lamp body of this product is made of 6063 high-quality extruded profiles, which can transfer the heat generated by the light source through the lamp body to rapidly reduce the temperature of the light source and improve the life span of the product. Professional v-shaped structure luminous surface design, greatly improve the luminous efficiency of lamps.

1 2

LR1038 (04.001B12000)

Power：38W

Installation method：Linear surface/ Suspended

Cut out：No

Options：Non-dim

Frequency：50/60Hz

LED chip：SMD

Light efficiency：90 lm/W

CCT：2700K/3000K/3500K/4000K/5000K

CRI：＞90

SDCM：＜3

Adjustibility：No

Light distribution：Direct

Beam angle：122°

Ingress protection：IP20

Material：Aluminum

Operating temperature：-25°C~50°C

Rated life hours：35,000h~50,000h LM80

Se komplette oplysninger

Download

BEAM ANGLE

112°

Applicable Instructions for 112° Illumination

This is an angle suitable for basic lighting. It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
