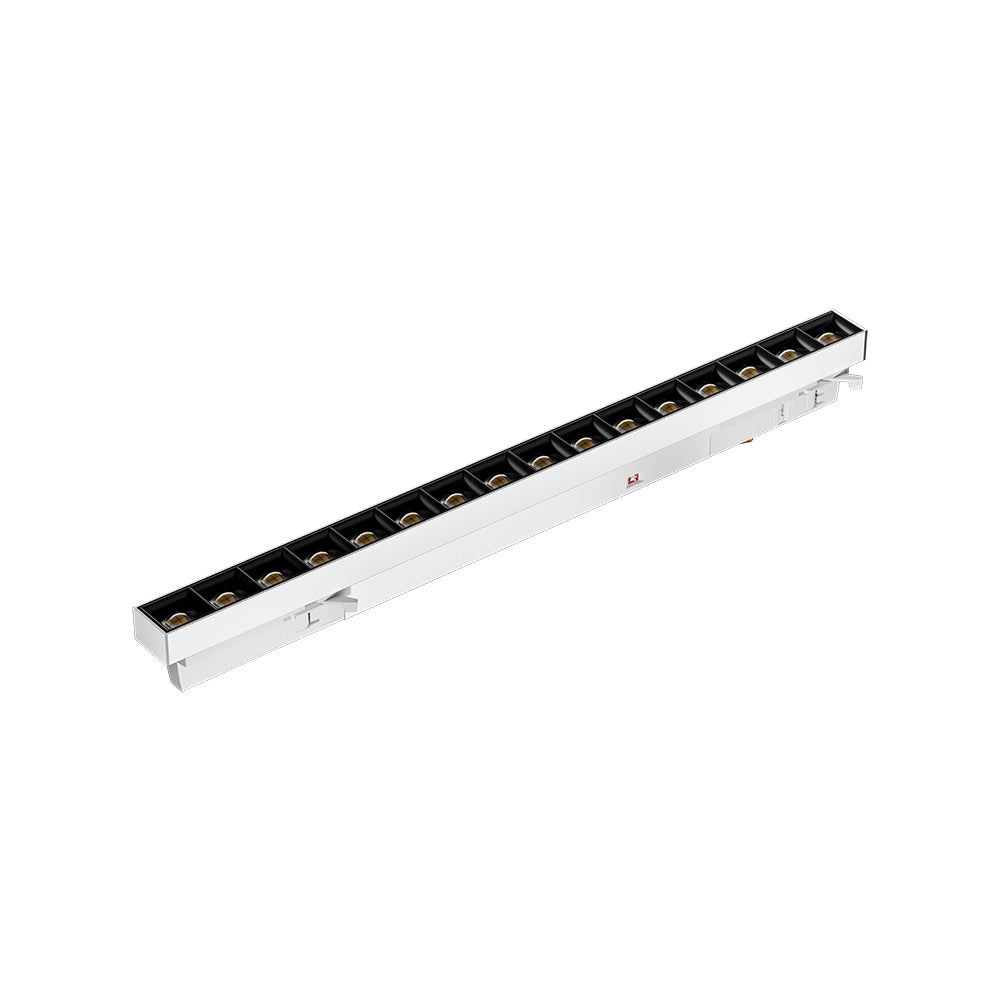

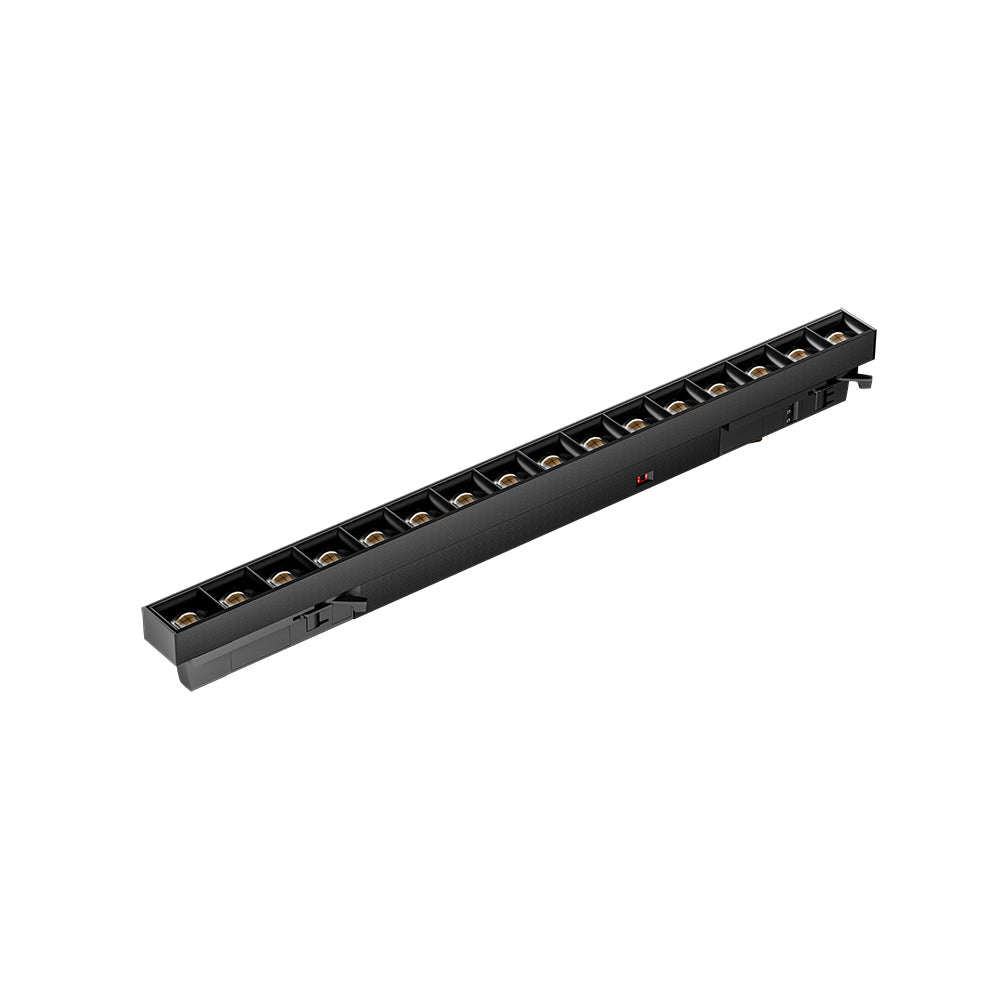

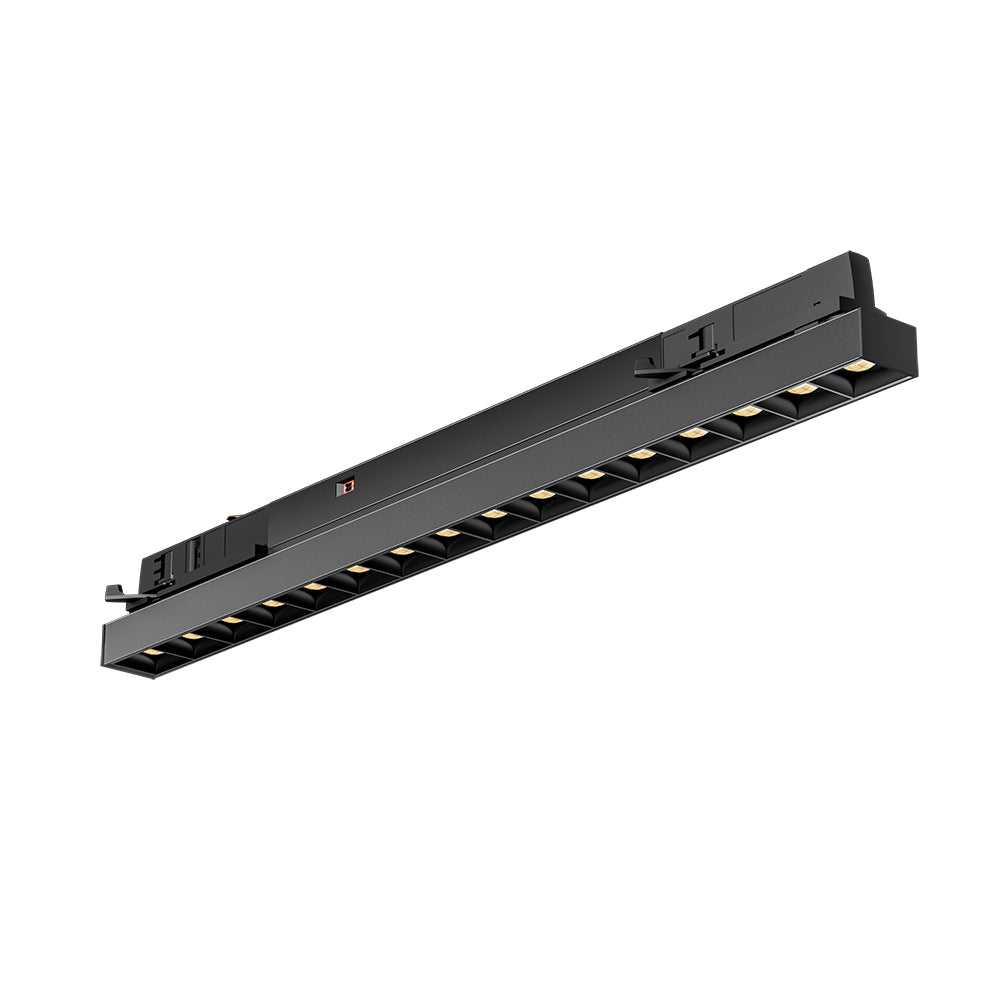

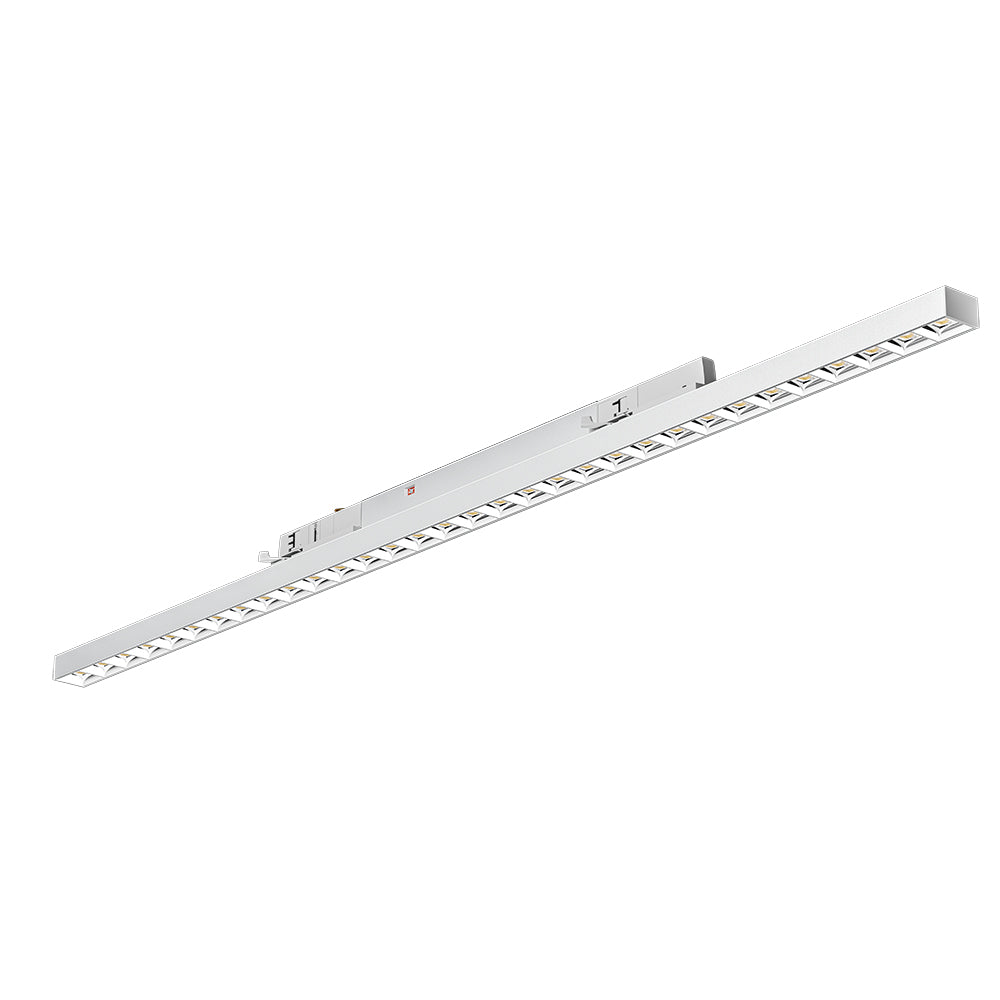

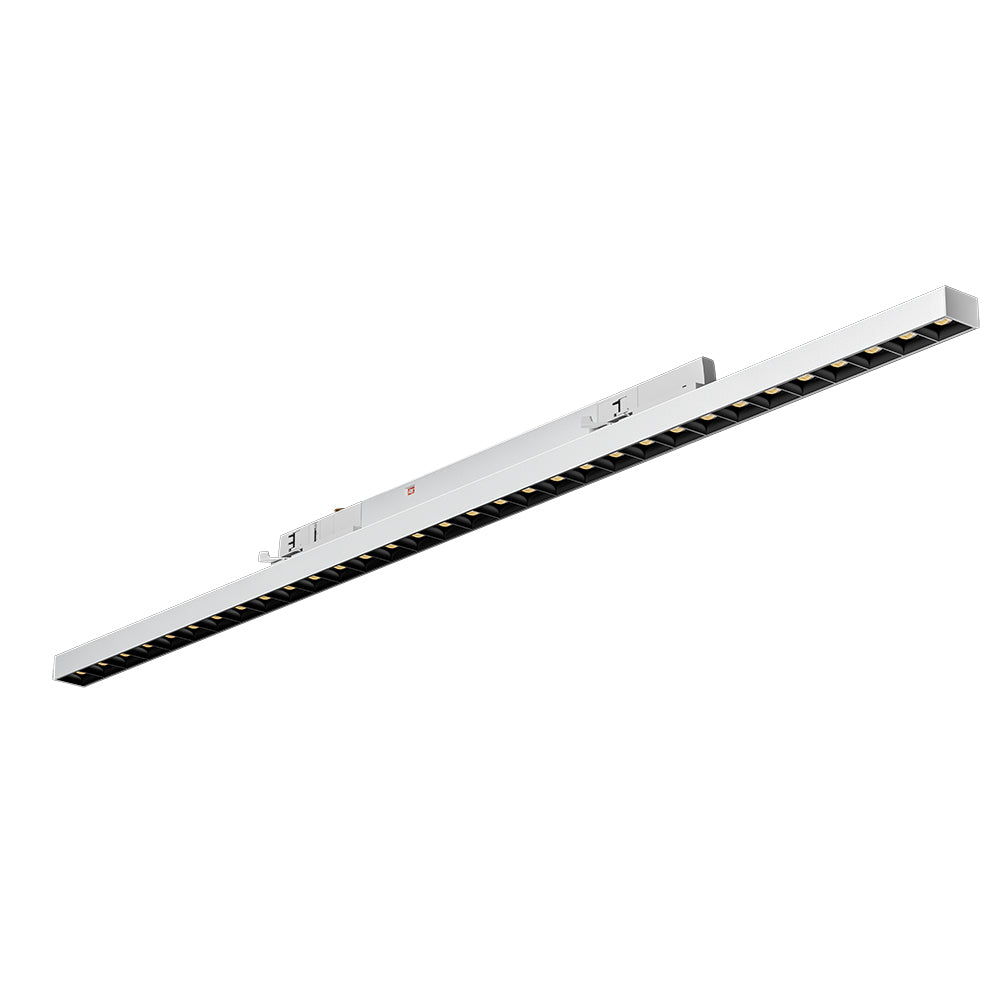

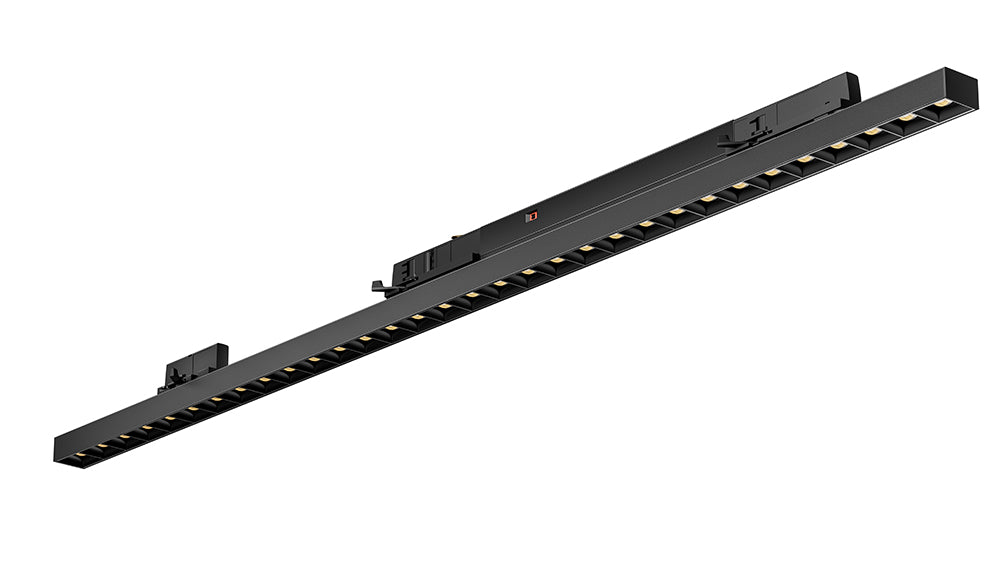

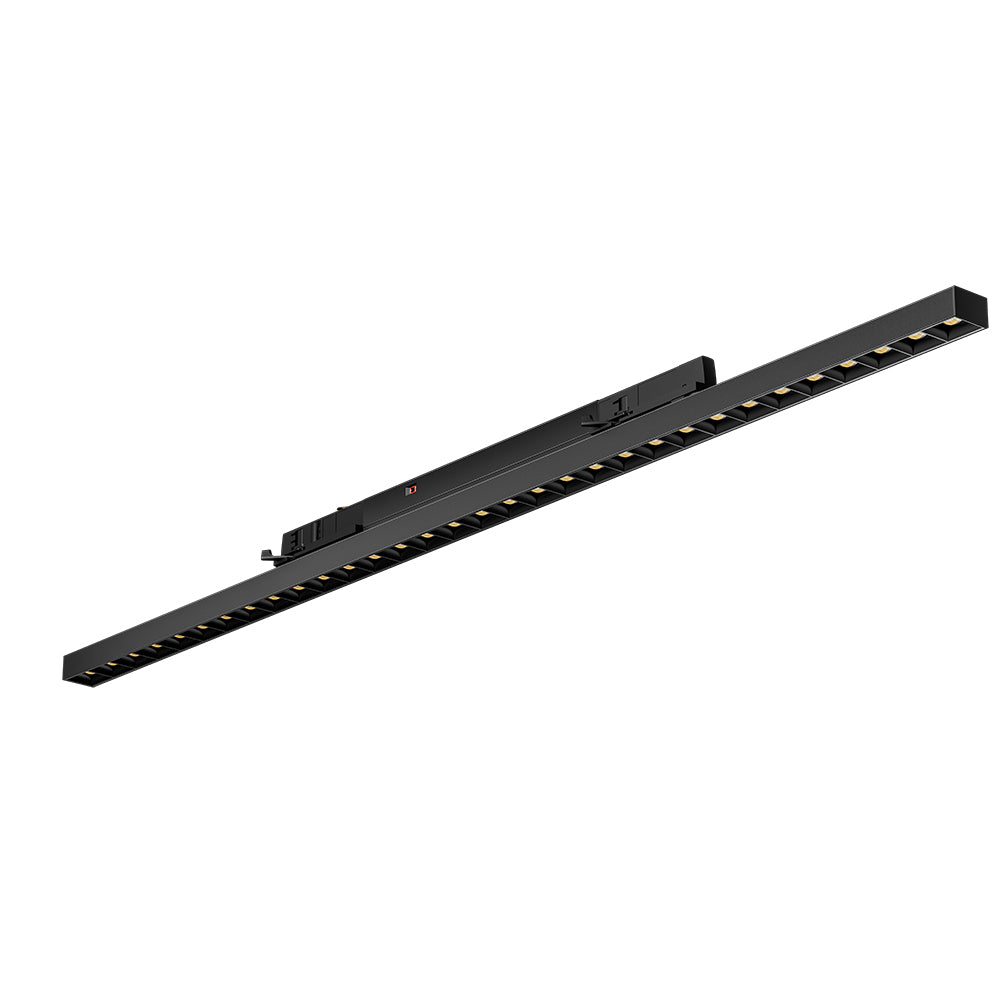

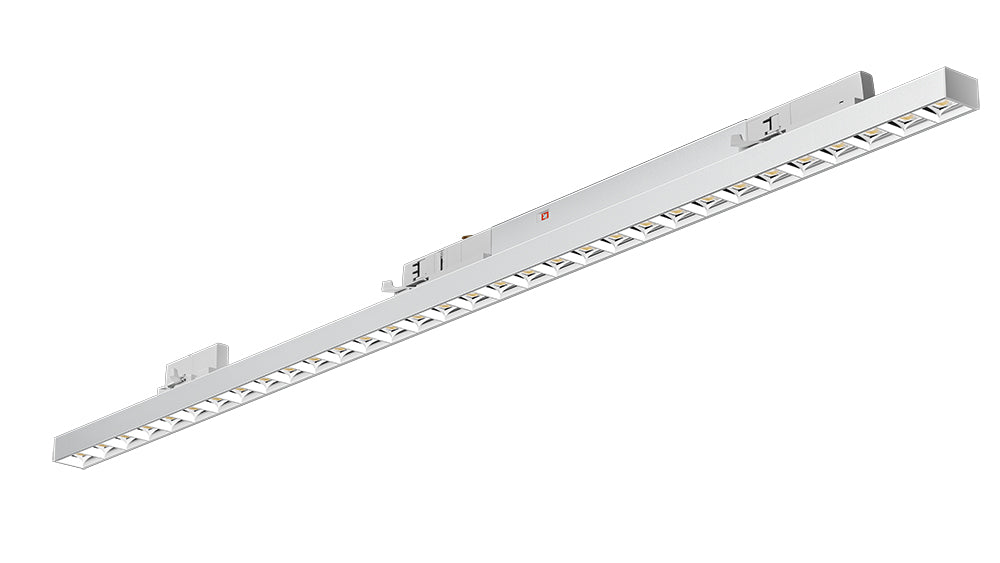

35W/40W/45W/50W , 50W/55W/60W/65W Tiltable
30° x 90°Beam Agle
Compatible with 4 wires track rail system
160lm Per Watt
3000K/4000K/5000K/6000K
Power Selectable with DIP switch
600mm/1200mm/1500mm

Model No.
Dimension
Input Voltage
Output Power
(Select with dip switch)
Output Current
Frequency
PFC
Lumen
Efficiency of Fixture
Color Temperature
CRI
LED Chip
Beam Angle
Ripple
Type of Protection
Life Span
Warranty

THTL-100-406-50
600x100x60mm
220-240VAC
35W/40W/45W/50W
400mA
50/60Hz
>0.9
9000lms
160lm/w
3000K / 4000K / 5000K / 6000K / 6500K
Ra>80, 90
SMD
30°
<5%
IP20
50000Hours
5 Years

THTL-100-415-65
1490x100x60mm
220-240VAC
50W/55W/60W/65W
450mA
50/60Hz
>0.9
10400lms
160lm/w
3000K / 4000K / 5000K / 6000K / 6500K
Ra>80, 90
SMD
30°
<5%
IP20
50000Hours
5 Years
