Lattice

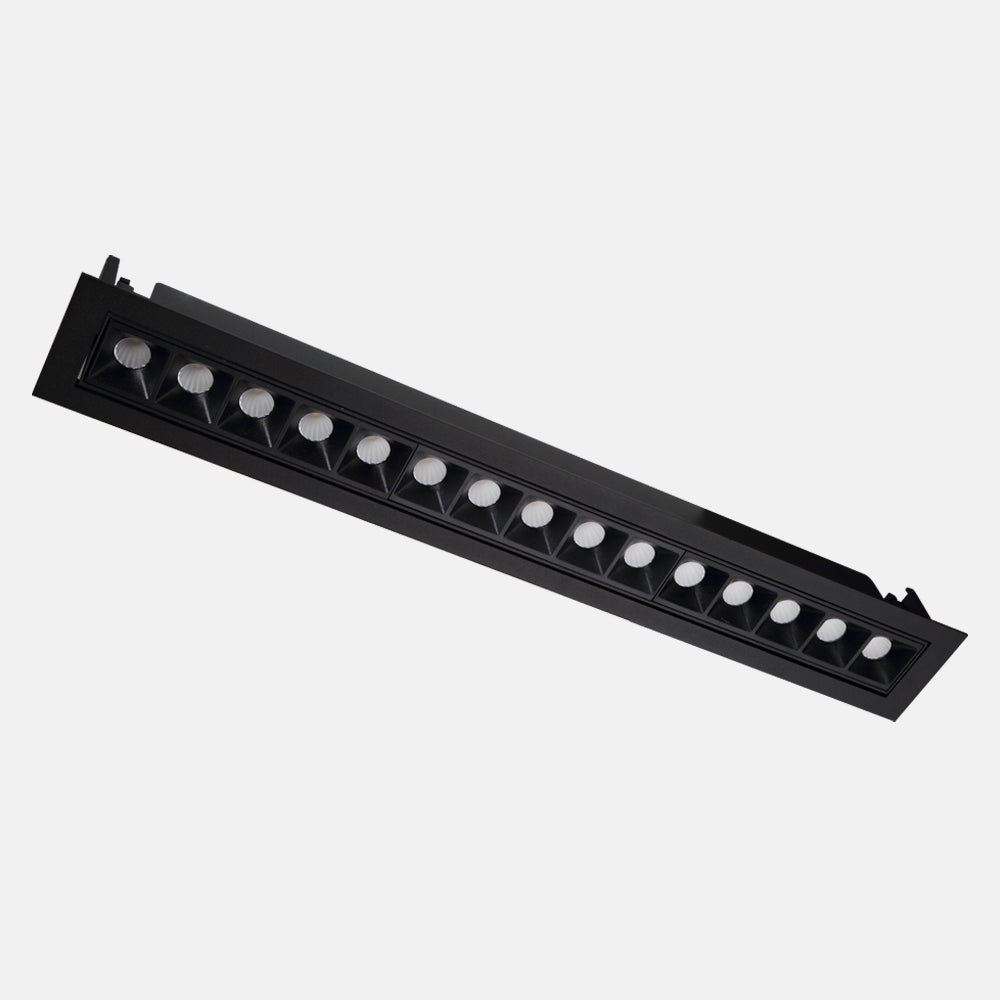

Name: Lattice Adjustable
Brand: LYS
Availability: InStock

01.180C01000

This LATTICE offers high performance and excellent visual comfort. Not only thanks to special anti-glare lenses, but also thanks to the product’s own low glare value UGA < 16 and color rendering RA > 90. LATTICE is usually used for basic lighting and important lighting in exhibition venues. Provides minimalistic and stylish lighting effects. It also has three beam angles and a variety of wireless adjustment methods such as BLE, TRIAC and DALI, which can meet the lighting needs of various projects.

1 1

Specification

Power：30W

Installation method：Recessed

Cut out：425*46mm

Options：Non-dim, Phase dim, 0/1-10V, DALI, Bluetooth, ZigBee

Frequency：50/60Hz

LED chip：SMD

Light efficiency：78 lm/W

CCT：2700K/3000K/3500K/4000K/2700K-6000K

CRI：≥90

SDCM：＜3

Adjustibility：15° Tilting

Light distribution：Direct

UGR：＜19

Beam angle：22°/36°/45°

Ingress protection：IP20

Material：Aluminum

Operating temperature：-25°C~50°C

Rated life hours：35,000h~50,000h LM80

Se komplette oplysninger

Download

BEAM ANGLE

22°

36°

45°

Applicable Instructions for 22° Illumination

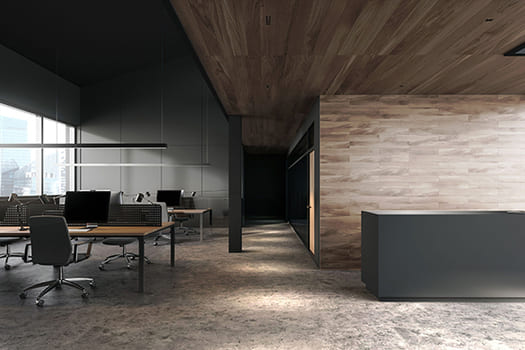

This is an angle suitable for basic lighting，It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
