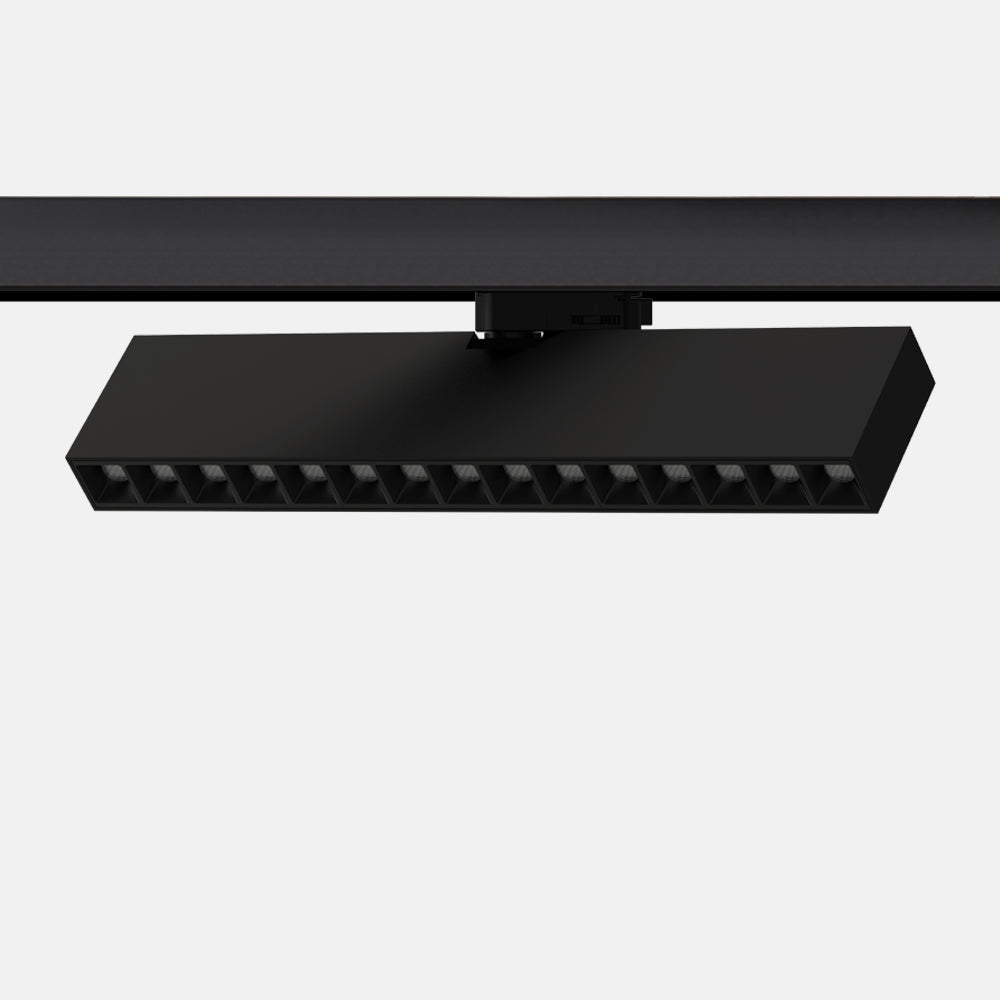

LATTICE

02.180E

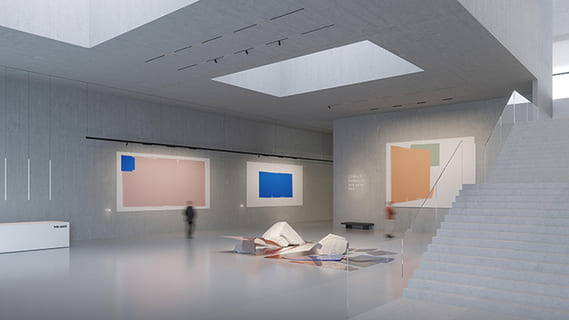

Lattice delivers high performance and outstanding visual comfort. This is because of the special anti-glare lenses and the low glare value UGA<16 and color rendering RA>90 of the product itself.Lattice is usually used for basic lighting and important lighting in exhibition venues. It can meet the lighting needs of various projects. It has three beam angles and multiple wireless adjustment methods such As BLE,TRIAC and DALI.
1 1

Specification

  • Power：20W
  • Installation method：Track Mounted
  • Cut out：NO
  • Dimming：Non-DIM 、TRIAC 、0/1-10V、DALI 、BLE 、ZIGBEE
  • Frequency：50/60HZ
  • LED：SMD
  • Lumen：79lm/w
  • CCT：2700K/3000K/3500K/4000K
  • CRI：≥90
  • SDCM：＜3
  • Adjustibility：345° Rotation | 60° Tilting
  • Light distribution：Direct
  • Beam angle：22°/36°/45°
  • Protection class：IP20
  • Material：Aluminum
  • Environment temperature：-20°C~40°C
  • LED life Time：35,000h~ 50,000h – L80
  • Applicable track：1 CIRCUITS TRACK SURFACE-1、1 CIRCUITS TRACK SURFACE-3、3 CIRCUITS/1 CIRCUITS DALITRACK SURFACE-1、3 CIRCUITS DALITRACKSURFACE
Se komplette oplysninger
Product icon

Download

LATTICE
LATTICE
LATTICE
LATTICE
LATTICE

BEAM ANGLE

LATTICE
LATTICE
LATTICE

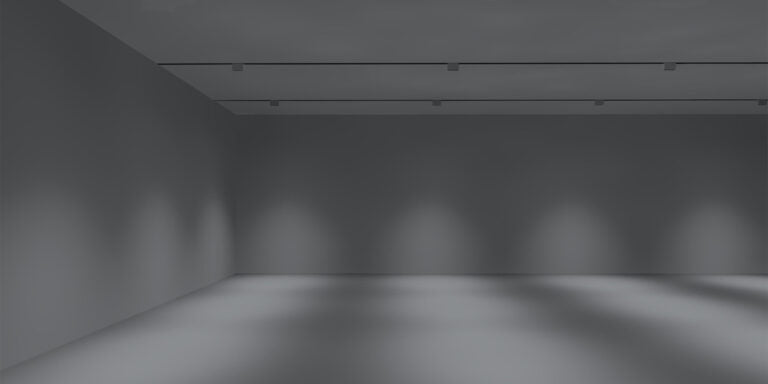

22°

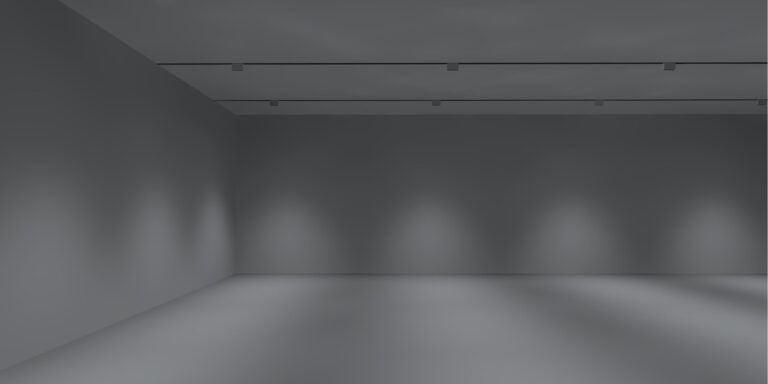

36°

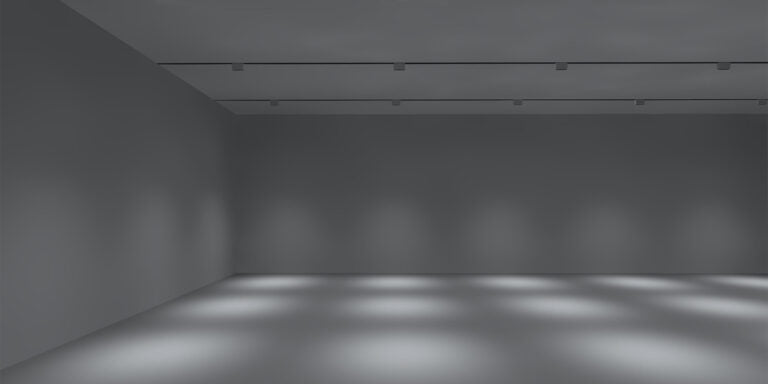

45°

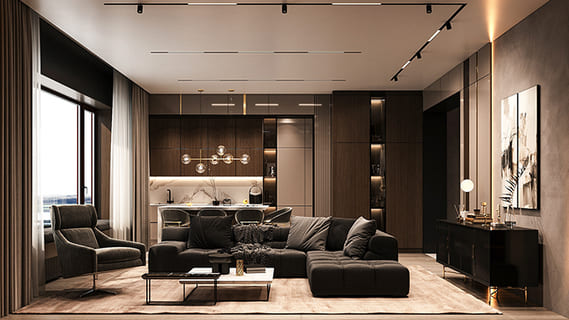

Applicable Instructions for 22° Illumination

This is an angle suitable for basic lighting. It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
