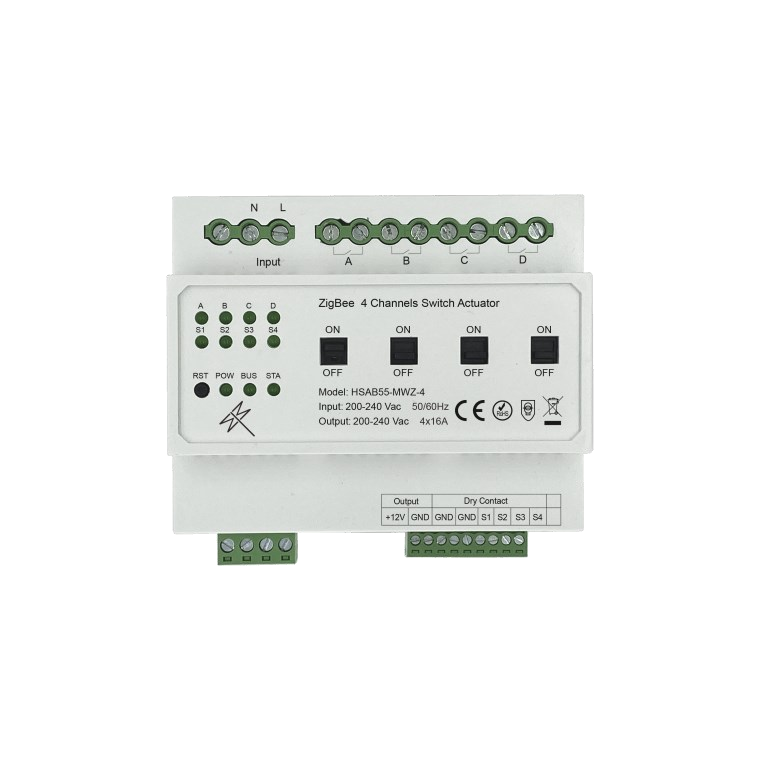

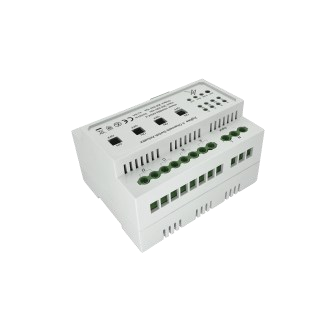

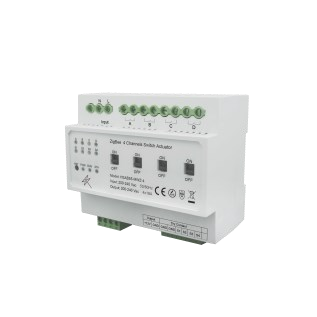

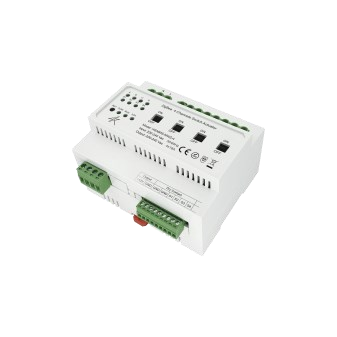

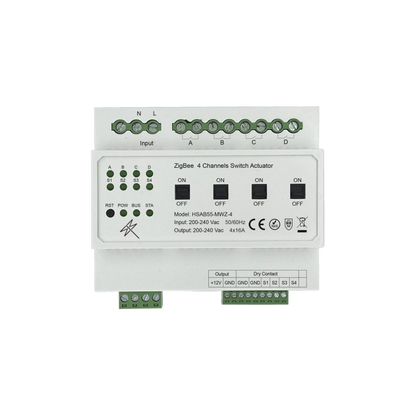

HSAB55-Z is an AC input and 4 channels switch actuator based on ZigBee protocol. The maximum control current of each circuit is 16A and applicable to on-off control for 16A and below equipment. ⚫ Magnetic retention function. There is no relay control current on working status. ⚫ Each relay has a mechanical manual switch for emergency operation. ⚫ Each channel can be controlled by external dry contact. ⚫ Support ZigBee 3.0 standard protocol with channel/channels of device, group and scene control. ⚫ Work with HOMA HGW928-Z gateway for local/remote control, scene, schedule or other functions through mobile and server application.
FEATURES:
⚫ Input 200-240Vac ⚫ Output 200-240Vac ⚫ 4 channels 16A magnetic latching relay ⚫ Mechanical manual switch ⚫ Support dry contact control ⚫ Support ZigBee 3.0 standard protocol ⚫ Support schedule for each channel ⚫ Communication distance is 30 m ⚫ 35mm standard rail ⚫ Operating Temperature -20°C ~ 60 °C
