Horn

02.077

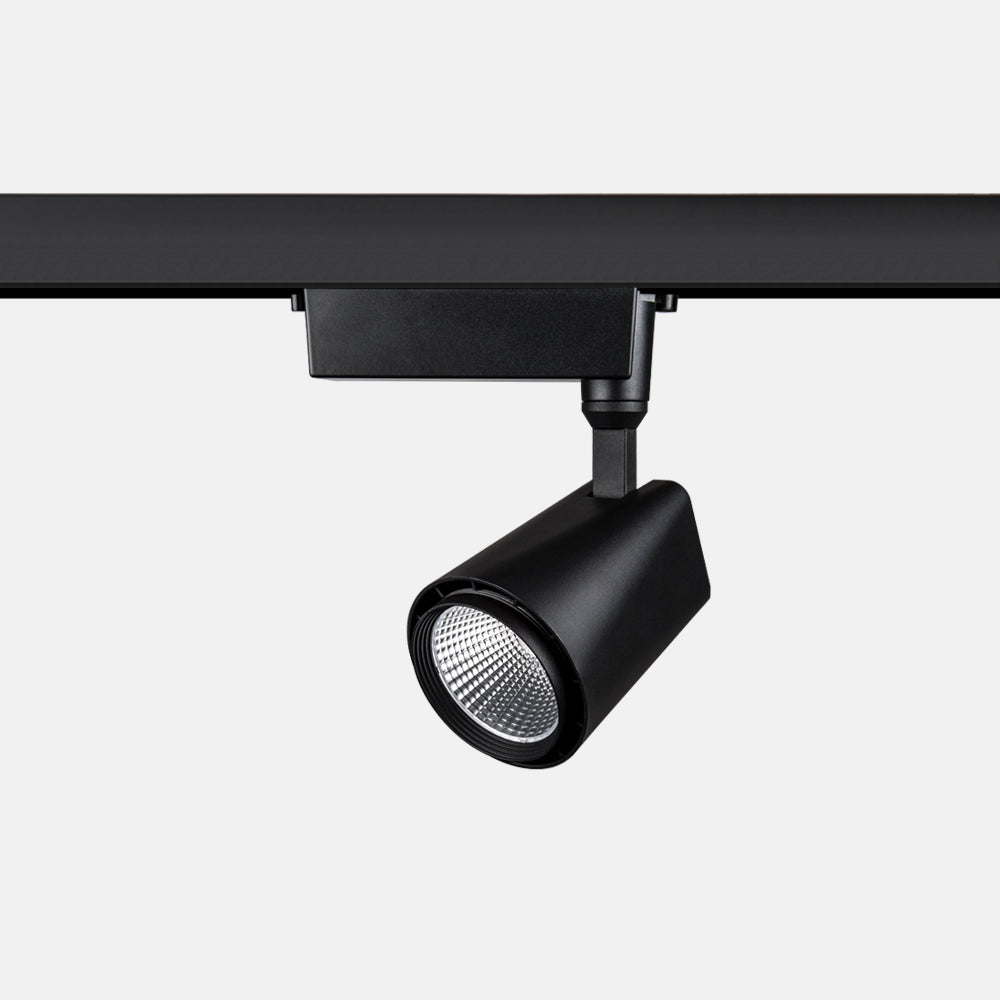

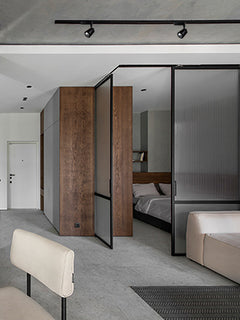

Track light , with a variety of optical accessories ,Not only greatly improve the flexibility Of light distribution , but also meet the design requirements to the greatest extent.
1 1

Specification

  • 02.077A01000
  • Power：25W/30W
  • Installation method：Track Mounted
  • Cut out：NO
  • Dimming：Depending on driver
  • Frequency：50/60HZ
  • LED：COB
  • Lumen：93lm/w
  • CCT：2700K/3000K/3500K/4000K
  • CRI：90/97
  • SDCM：＜3
  • Adjustibility：355° Rotation | 90° Tilting
  • Light distribution：Direct
  • UGR：＜22
  • Beam angle：18°/28°/40°
  • Protection class：IP20
  • Material：Aluminum
  • Environment temperature：-20°C~40°C
  • LED life Time：  35,000h~ 50,000h – L80
Se komplette oplysninger
Product icon

Download

Horn
Horn
Horn
Horn
Horn
Horn
Horn

BEAM ANGLE

Horn
Horn
Horn
18°
28°
40°

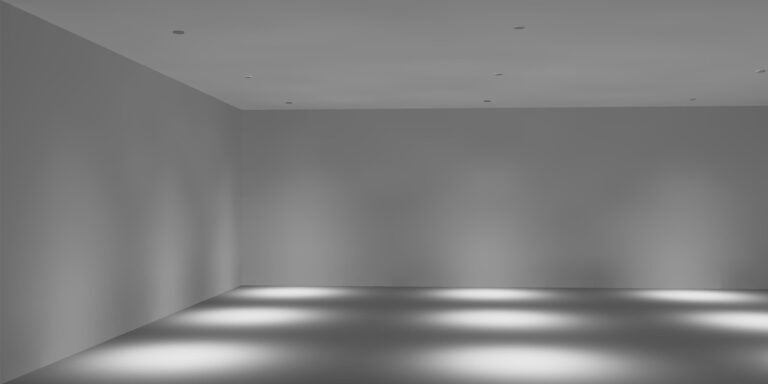

Applicable Instructions for 18° Illumination

This is an angle suitable for basic lighting. It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
