A01

Godfish

Name: Goldfish
Brand: LYS
Availability: InStock

01.176B0

The unique narrow side face ring desian breaks through the traditional way of expression . ich color matching , to meet the various theme space applications. 30° shading angle design , ugr < 10 , to provide you with more comfortable lighting space various dimming control schemes are available With dimming accuracy up to O.1 %

1 7

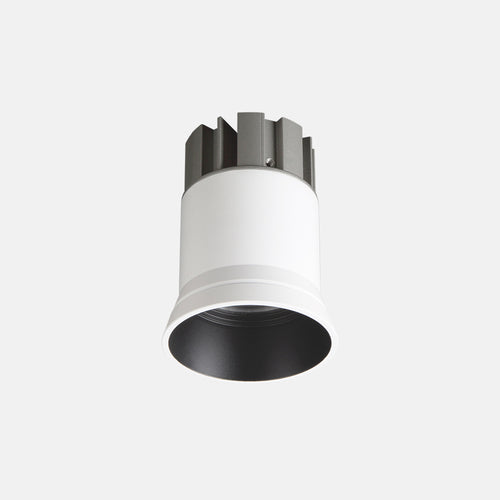

Specification

01.176B01000
Power：8W /10W
Installation method：Recessed
Cut out：φ65mm
Dimming：Non-DIM 、TRIAC、0/1-10V、DALI、 BLE 、ZIGBEE
Frequency：50/60HZ
LED：SMD
Lumen：80lm/w
CCT：2700K/3000K/3500K/4000K/2700K-6000K
CRI：≥90
SDCM：＜3
Adjustibility：NO
Light distribution：Direct
UGR：＜19
Beam angle：19°/26°/37°/55°
Protection class：IP20
Material：Aluminum
Environment temperature：-25°C~50°C
LED life Time： 35,000h~ 50,000h – L80

Se komplette oplysninger

Download

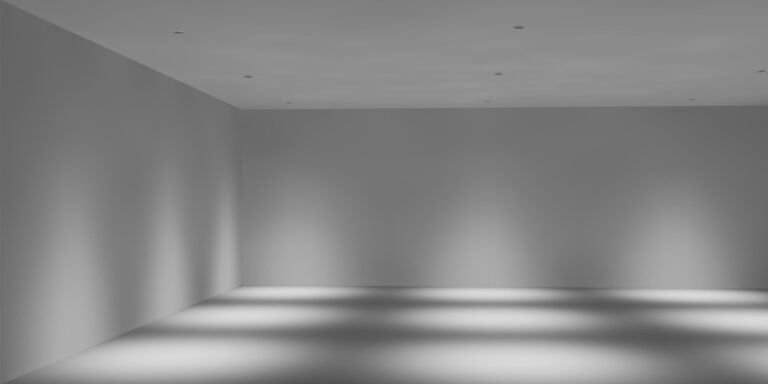

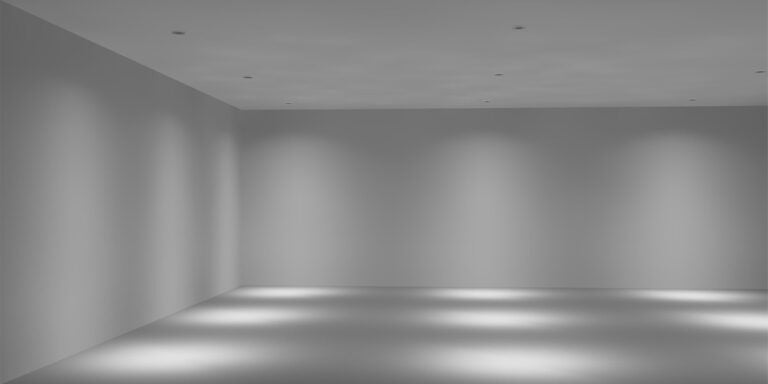

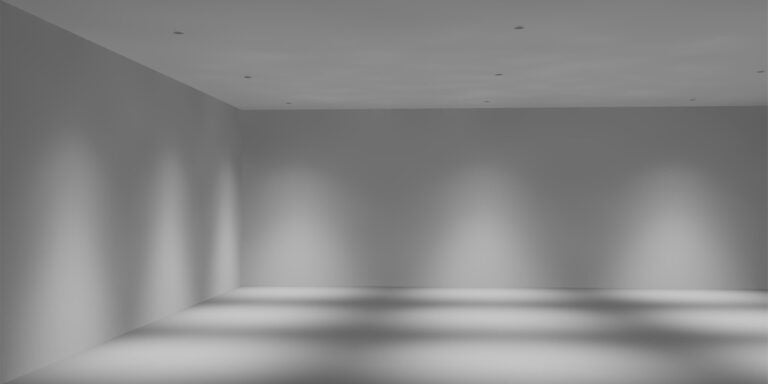

BEAM ANGLE

19°

26°

37°

55°

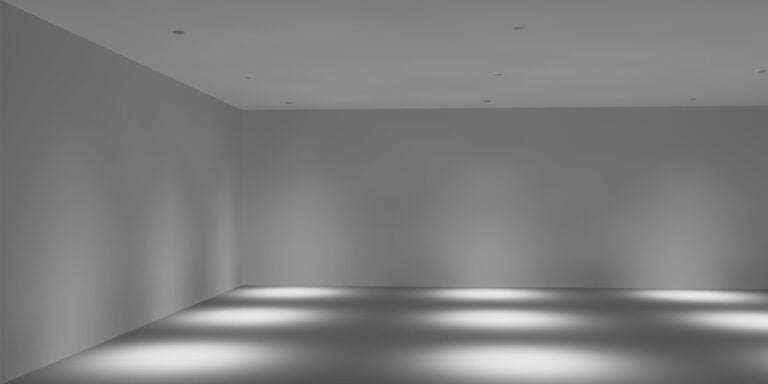

Applicable Instructions for 19° Illumination

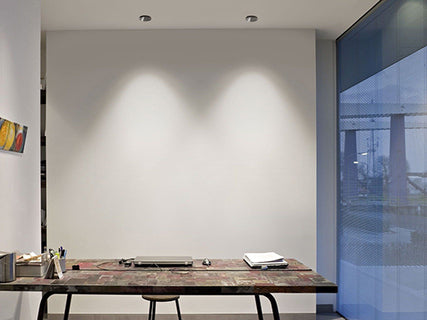

This is an angle suitable for basic lighting， It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
