Godfish

01.176B01

The unique narrow side face ring desian breaks through the traditional way of expression . ich color matching , to meet the various theme space applications. 30° shading angle design , ugr < 10 , to provide you with more comfortable lighting space various dimming control schemes are available With dimming accuracy up to O.1 %
1 7

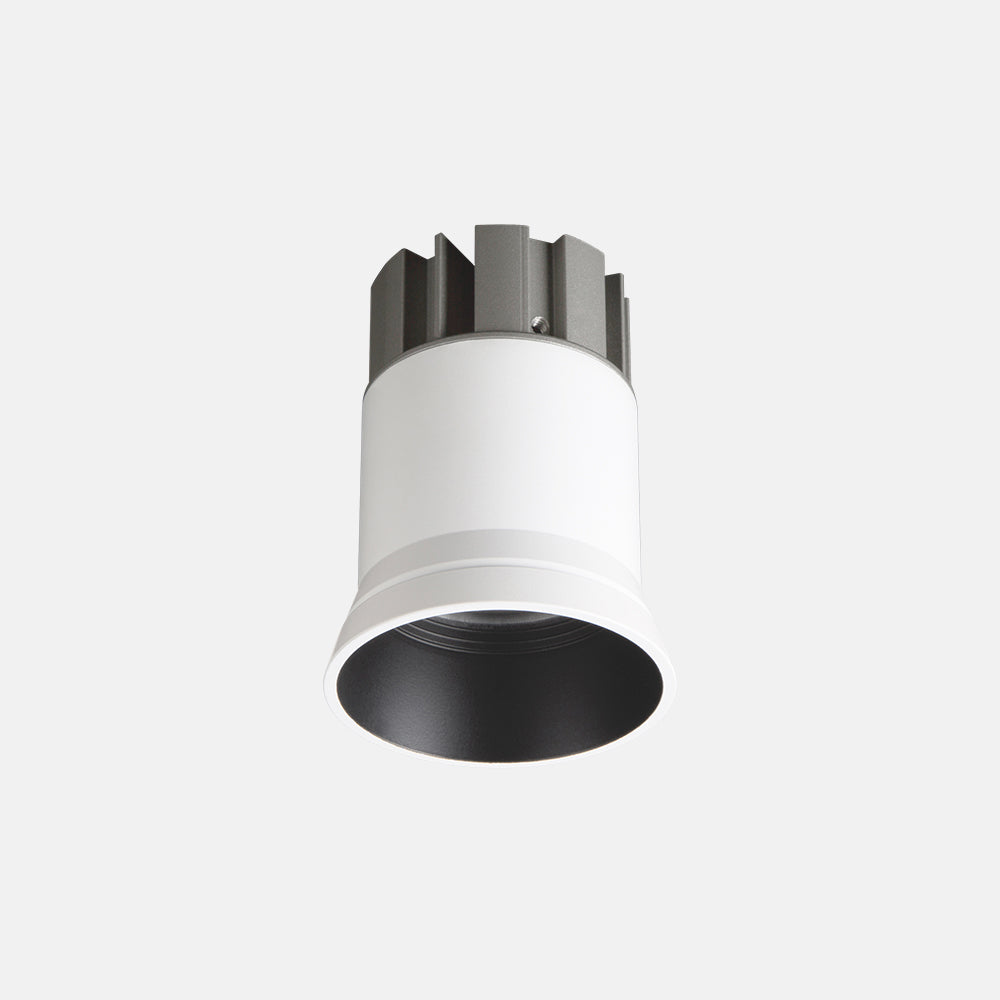

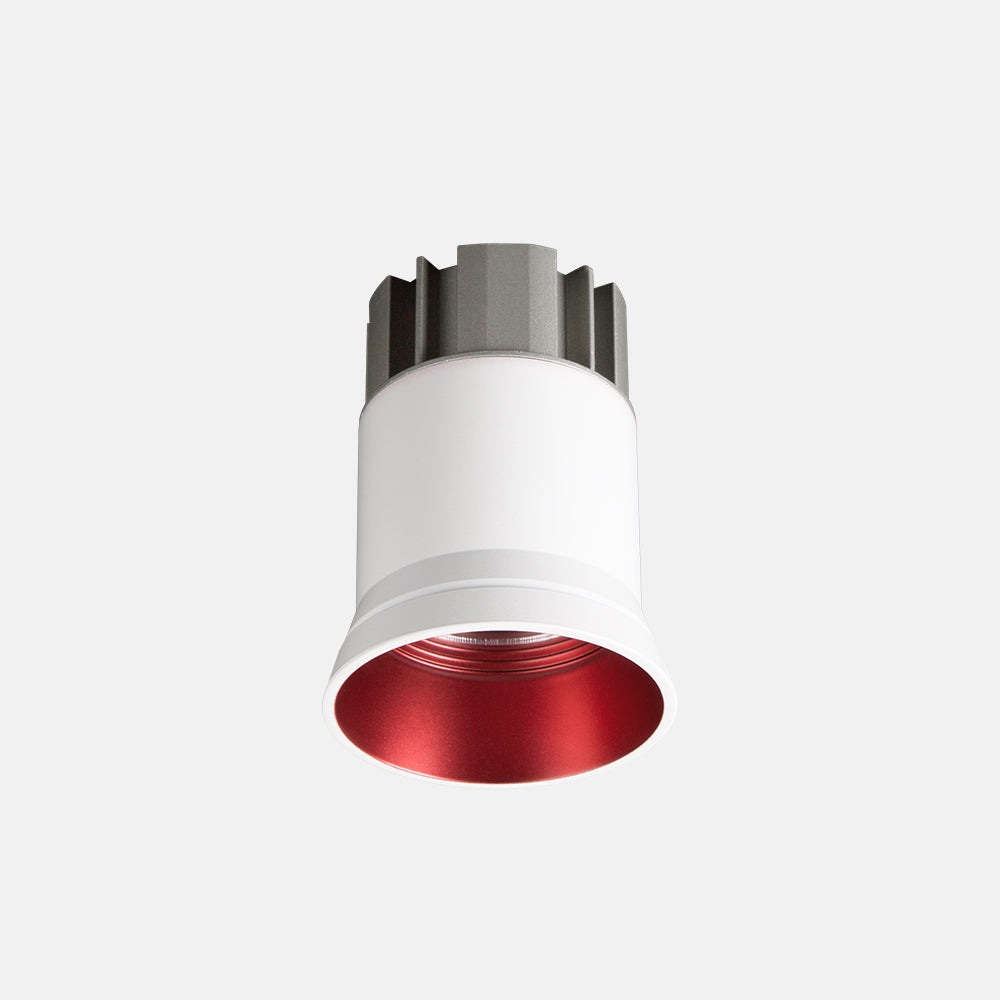

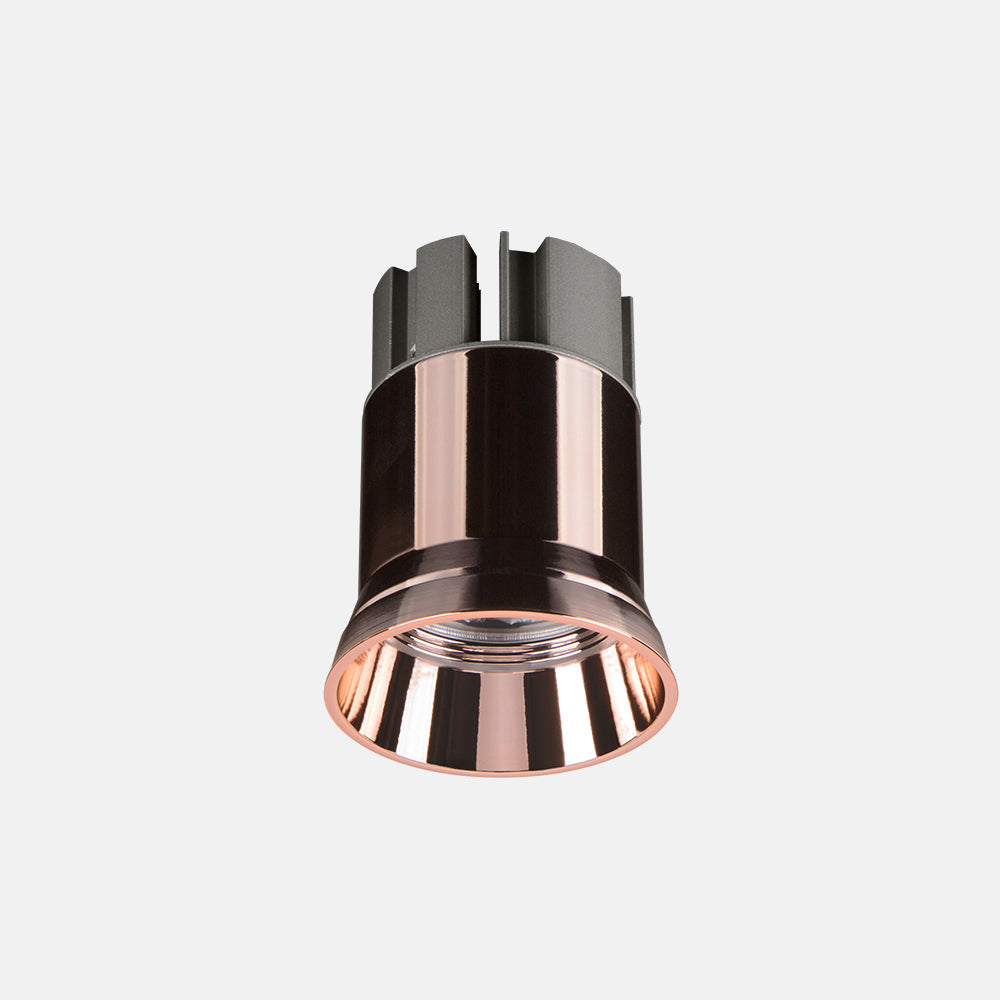

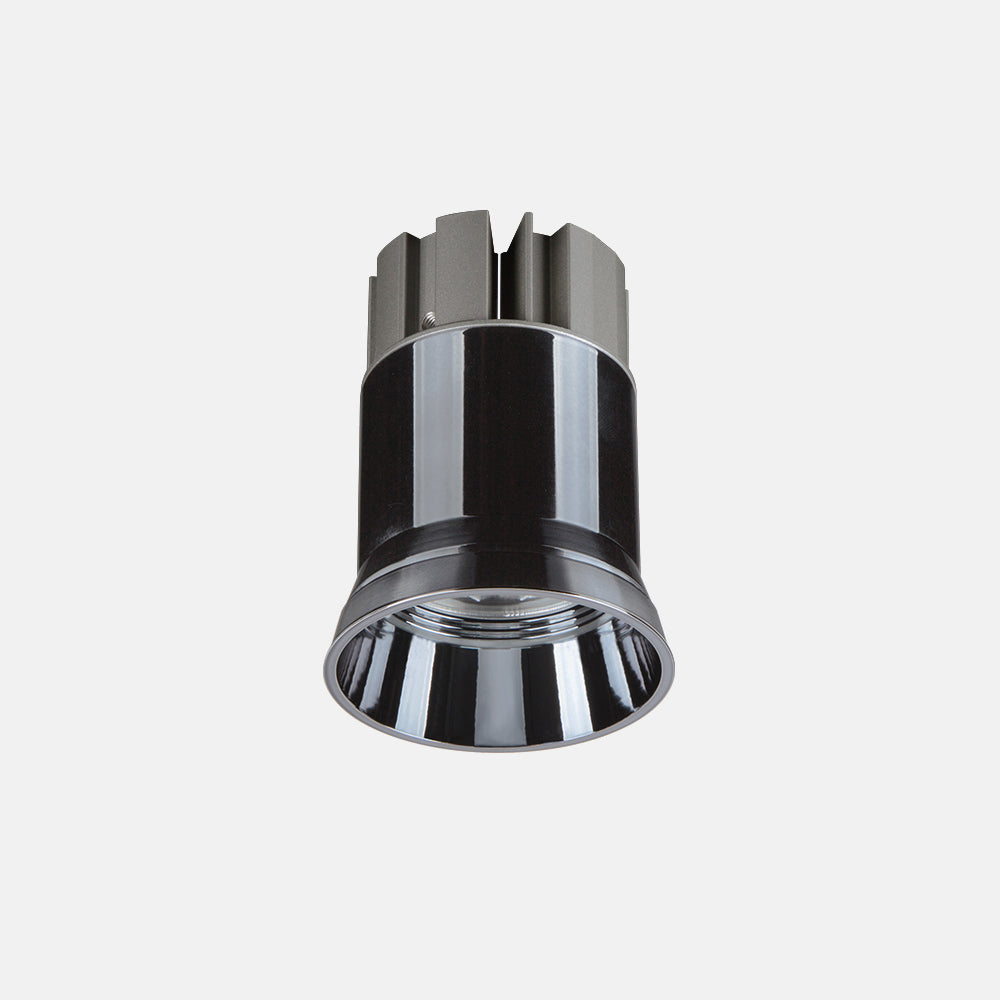

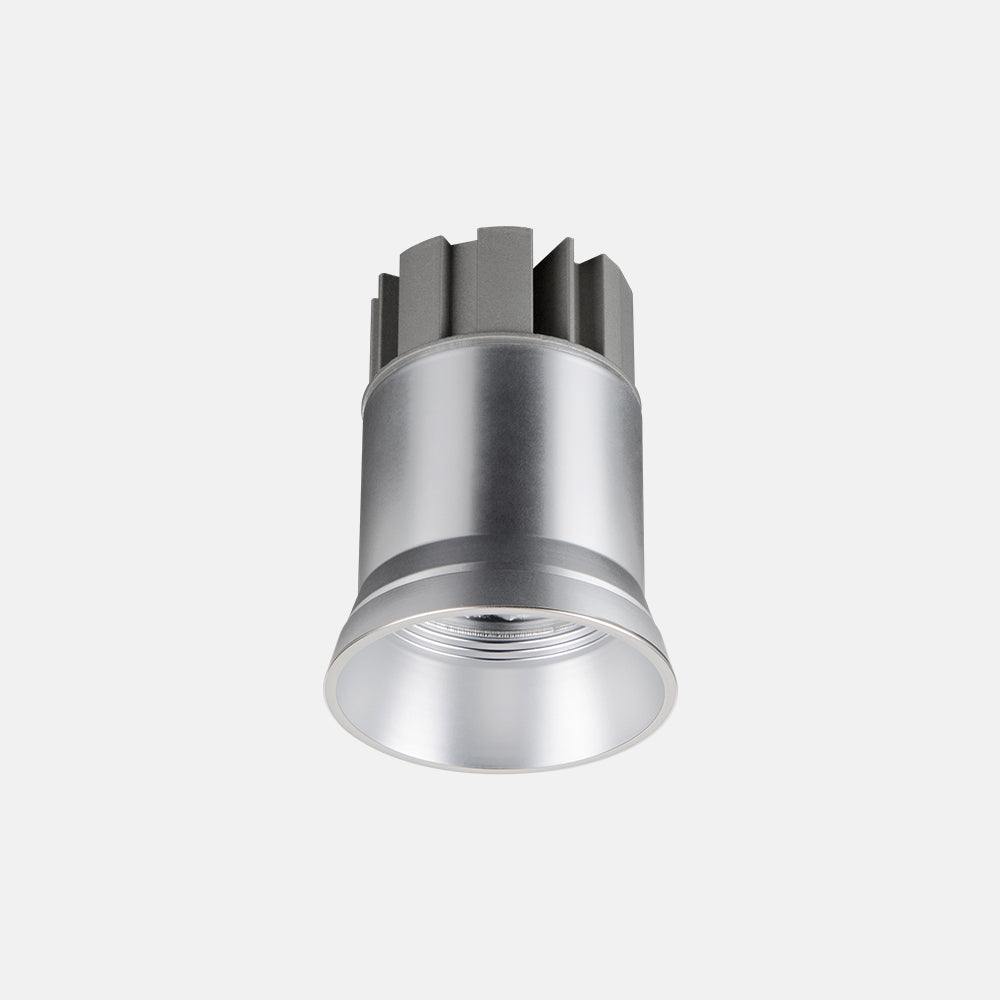

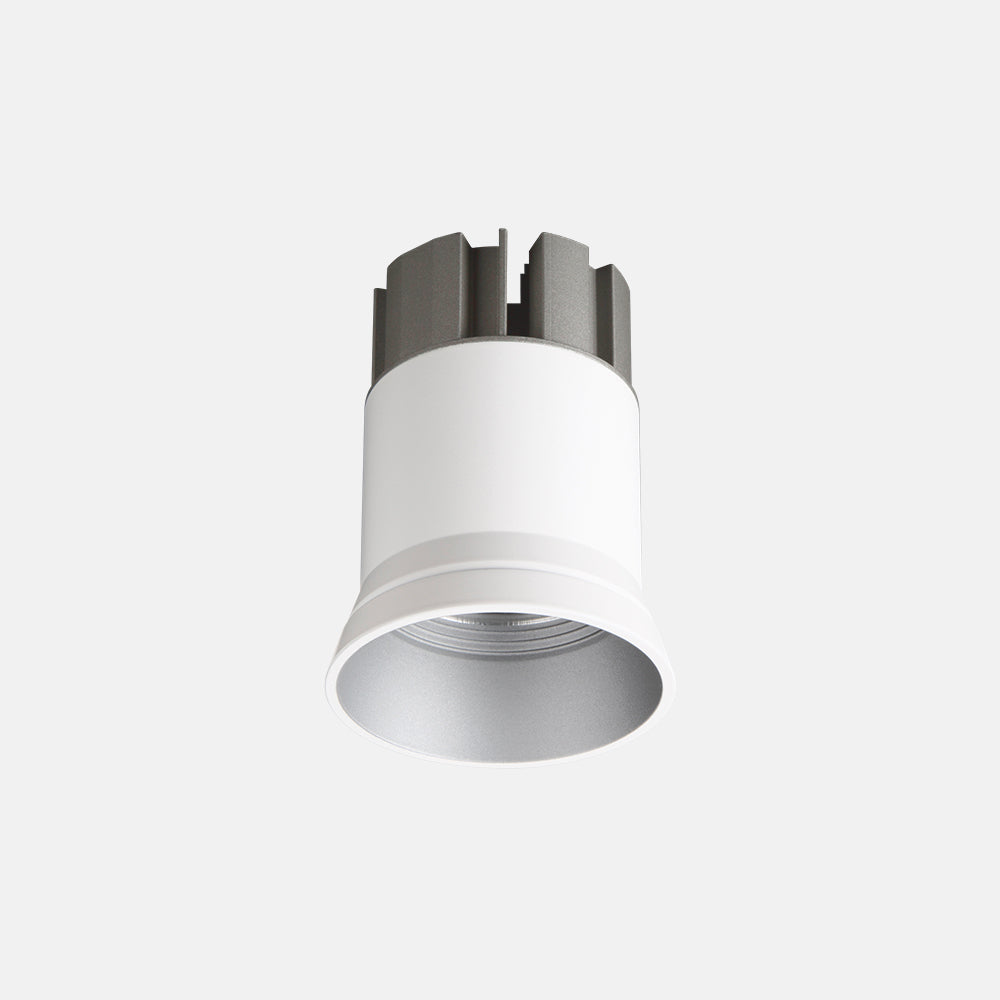

GL0008/GL0010 (01.176B01000)

Power：8W/10W

Installation method：Recessed

Cut out：φ65mm

Options：Non-dim,  Phase dim,  0/1-10V,  DALI, Bluetooth,  ZigBee

Frequency：50/60Hz

LED chip：COB

Light efficiency：80 lm/W

CCT：2700K/3000K/3500K/4000K/2700K-6000K

CRI：≥90

SDCM：＜3

Adjustibility：No

Light distribution：Direct

UGR：＜19

Beam angle：19°/26°/37°/50°

Ingress protection：IP20

Material：Aluminum

Operating temperature：-25°C~50°C

Rated life hours：35,000h~50,000h  LM80

Se komplette oplysninger

Download

Godfish
Godfish
Godfish
Godfish
Godfish
Godfish
Godfish
Godfish

BEAM ANGLE

Godfish
Godfish
Godfish
Godfish
19°
26°
37°
55°

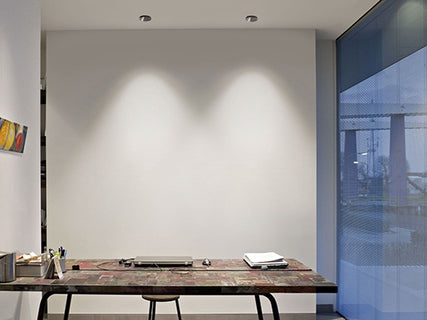

Applicable Instructions for 19° Illumination

This is an angle suitable for basic lighting， It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
