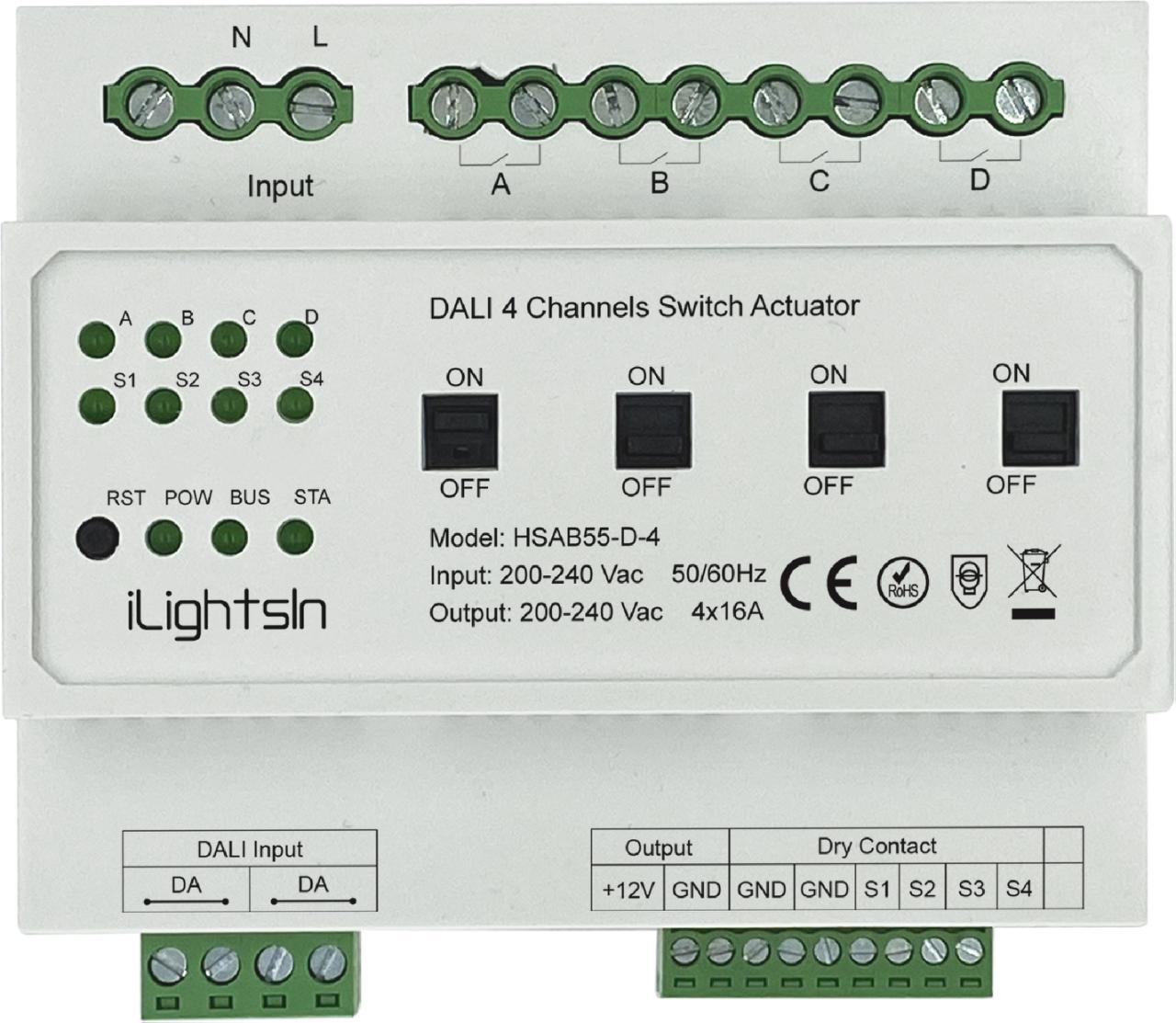

HSAB55 is an AC input and 4 channels switch actuator based on DALI protocol. The maximum control current of each circuit is 16A and applicable to on-off control for 16A and below equipment. a、Magnetic retention function. There is no relay control current on working status. b、Each relay has a mechanical manual switch for emergency operation. c、Each channel can be controlled by external dry contact. d、Support DALI standard protocol with channel/channels of device, group and scene control. e 、 Work with HOMA HGW928 dual-mode gateway for local/remote control, scene, schedule or other functions through mobile and server application. 3. Part No.
FEATURES:
Input 200-240Vac Output 200-240Vac 4 channels 16A magnetic latching relay Mechanical manual switch Support dry contact control DALI standard protocol Support APP control by DALI master LED indicator of each channel status Support schedule for each channel 35mm standard mounted rail Operating Temperature -20°C ~ 60°C
