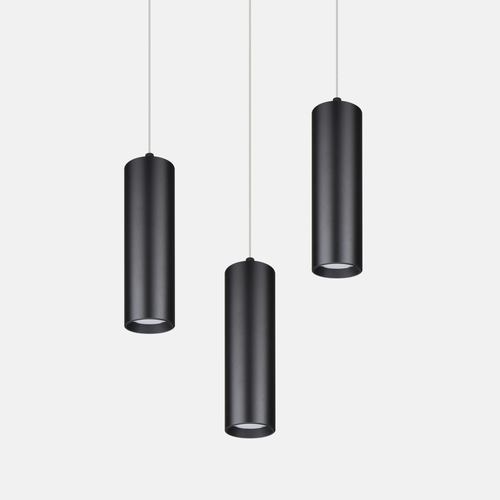

C20 MINO 3W Linear LED Light

04.007C20000

A simple pendant light,recessed and surface mounted for your choice, suitable for high-end residential, hotels, commercial stores and other applications.
1 1

Specification

  • 04.007C20000
  • Power：3W
  • Installation method：Linear surface/ Suspended
  • Cut out：Ø35mm
  • Dimming：Depending on driver
  • Frequency：50/60HZ
  • LED：SMD
  • Lumen：195LM
  • CCT：2700K/3000K/3500K/4000K
  • CRI：≥90
  • SDCM：＜3
  • Adjustibility：NO
  • Light distribution：Direct
  • Beam angle：16°/24°
  • Protection class：IP20
  • Material：Aluminum
  • Environment temperature：-20°C~40°C
  • LED life Time：  35,000h~ 50,000h – L80
Se komplette oplysninger
Product icon

Download

C20 MINO
C20 MINO
C20 MINO
C20 MINO
C20 MINO
C20 MINO
C20 MINO

BEAM ANGLE

C20 MINO
C20 MINO

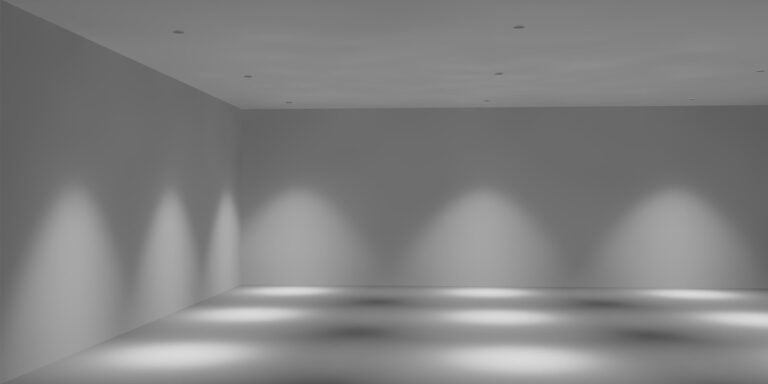

16°

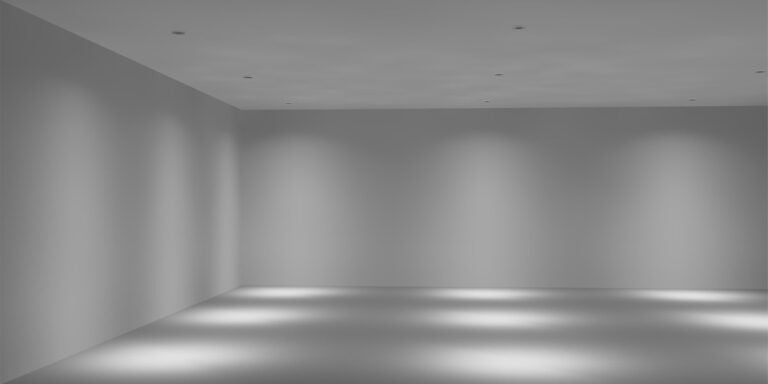

24°

Applicable Instructions for 16° Illumination

This is an angle suitable for basic lighting. It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
