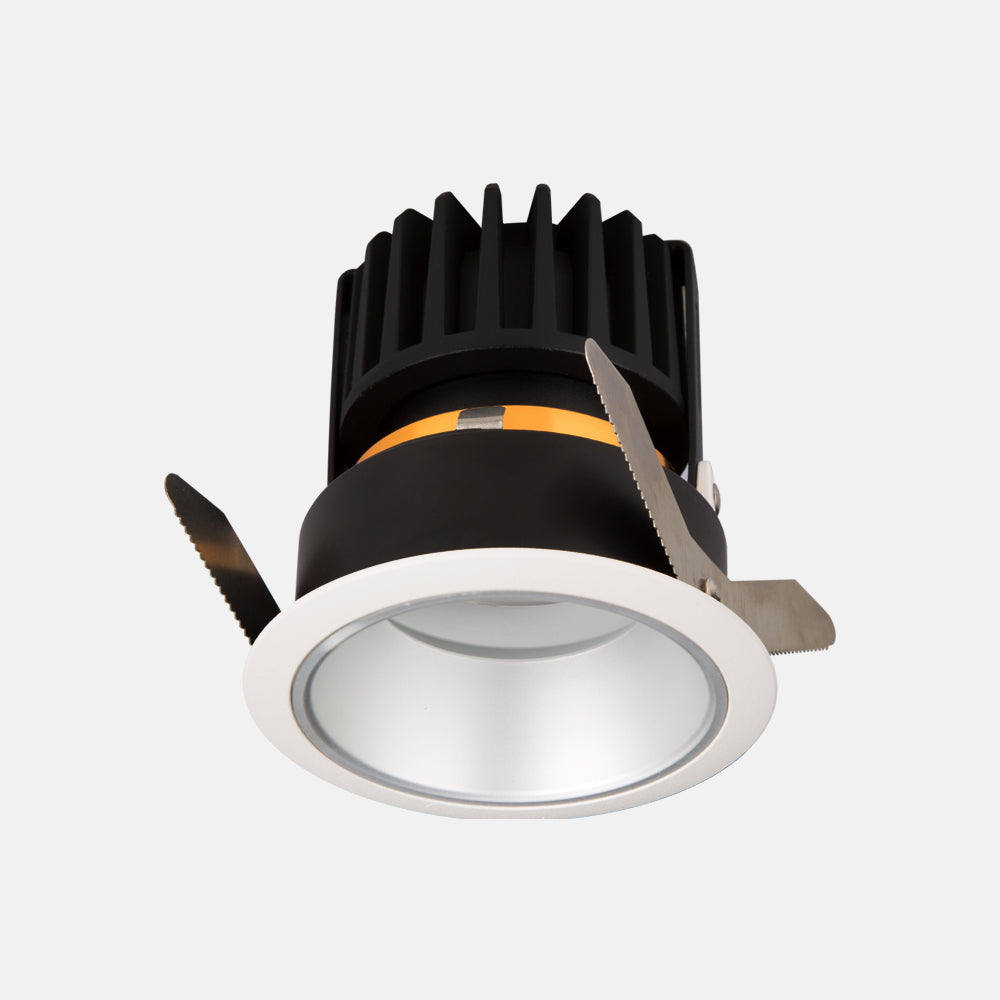

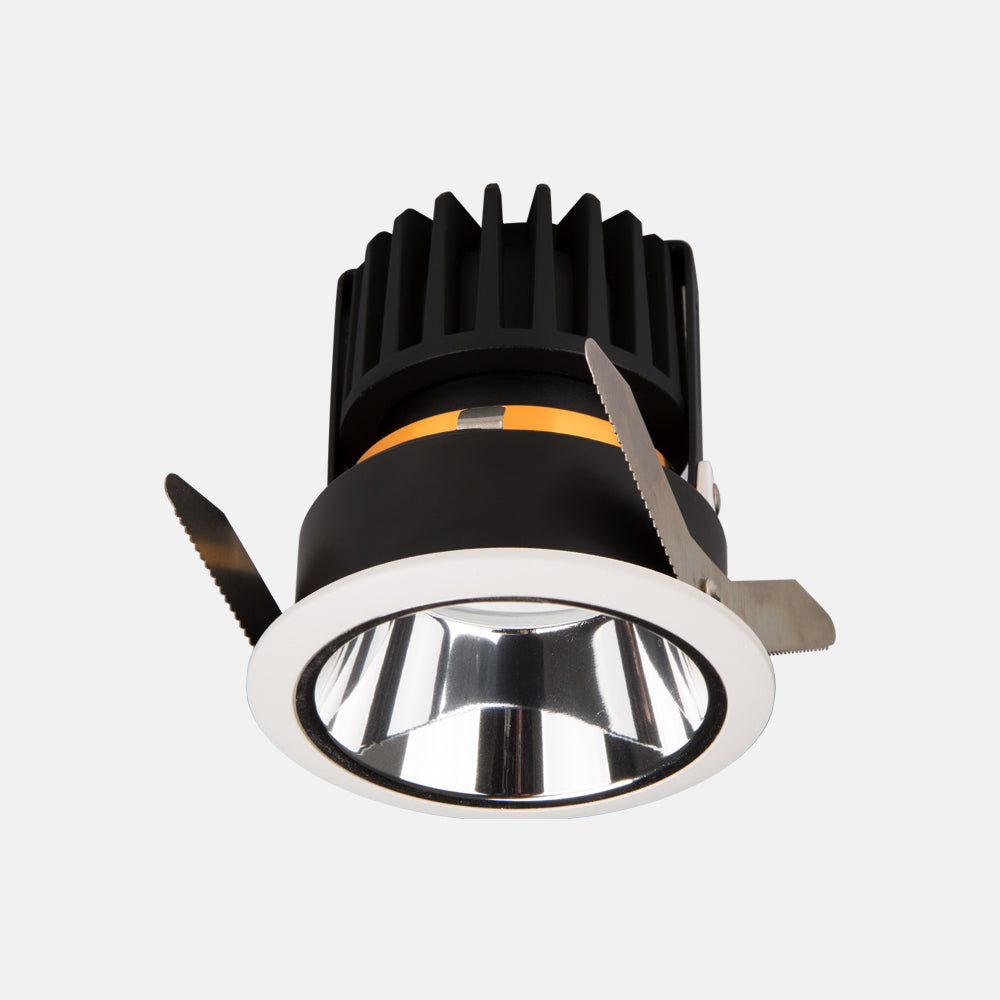

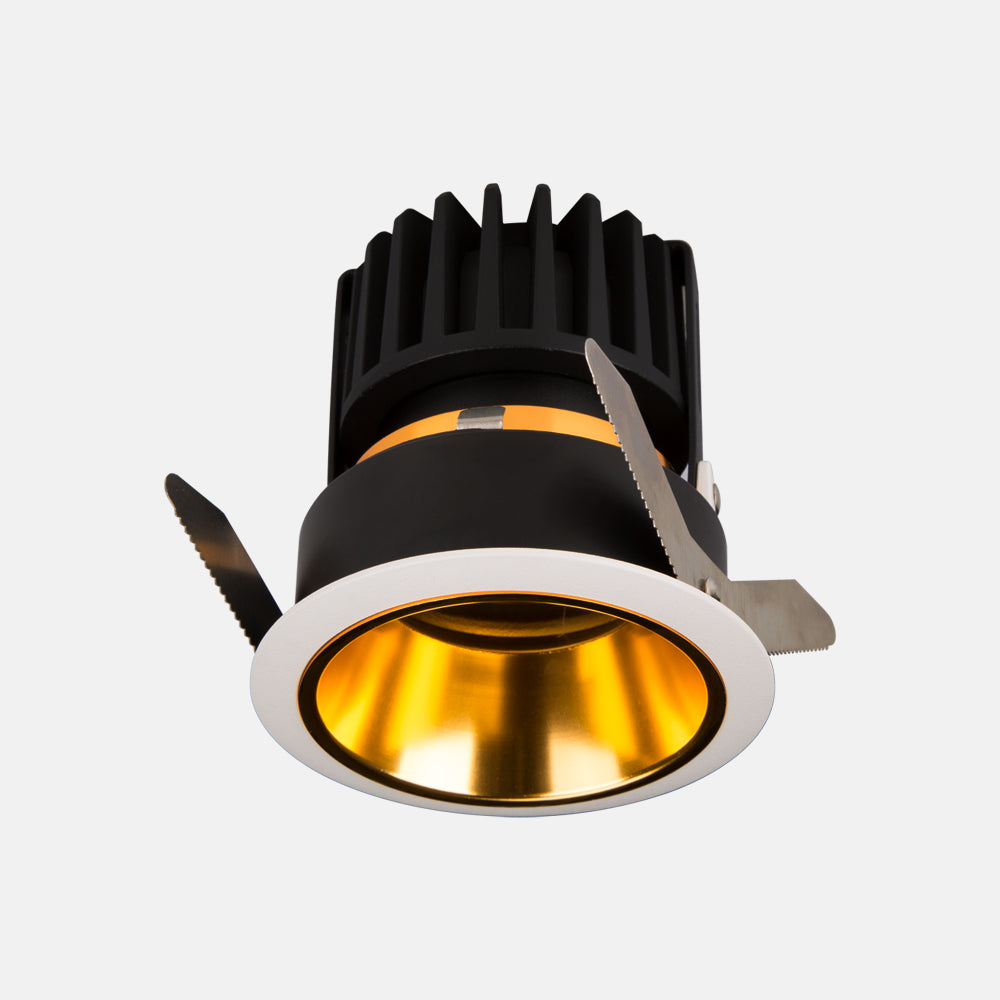

A01

Bio

01.171A01

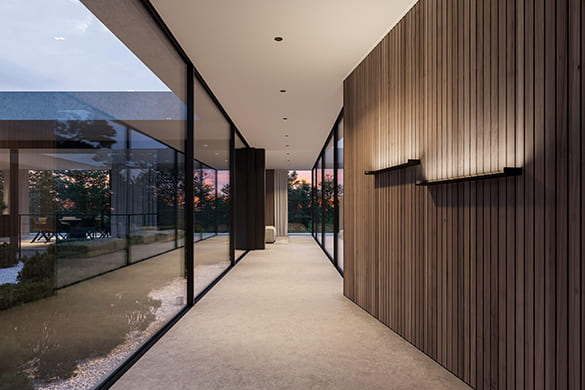

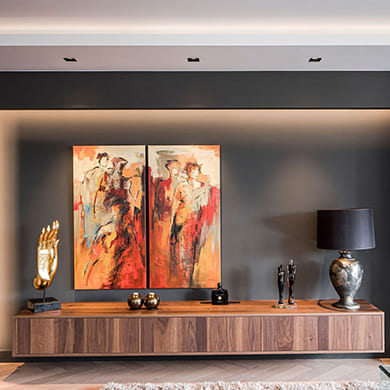

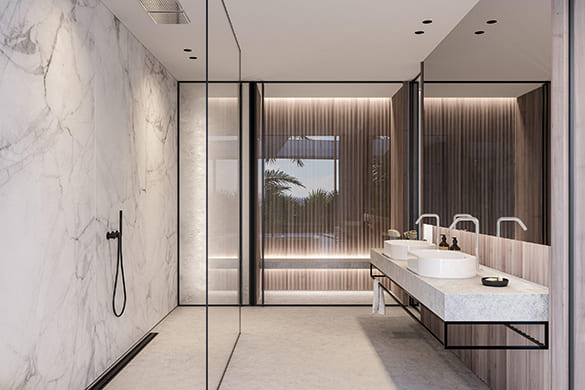

Rich appearance colors for your choice , Suitable for avariety of space lighting.

1 3

Specification

Power：8W/10W

Installation method：Recessed

Cut out：φ75mm

Options：Non-dim, Phase dim, 0/1-10V, DALI, Bluetooth, ZigBee

Frequency：50/60Hz

LED chip：COB

Light efficiency：72 lm/W

CCT：2700K/3000K/3500K/4000K

CRI：≥90

SDCM：＜3

Adjustibility：20° Tilting

Light distribution：Direct

UGR：＜19

Beam angle：27°/30°/40°

Ingress protection：IP20

Material：Aluminum

Operating temperature：-25°C~50°C

Rated life hours：35,000h~50,000h LM80

Se komplette oplysninger

Download

Bio

Bio

Bio

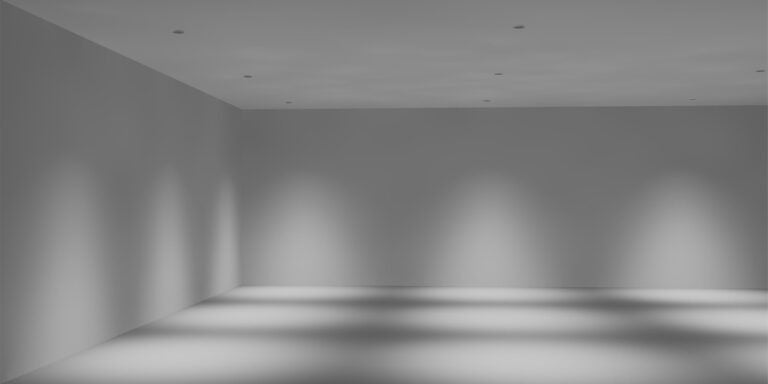

27°

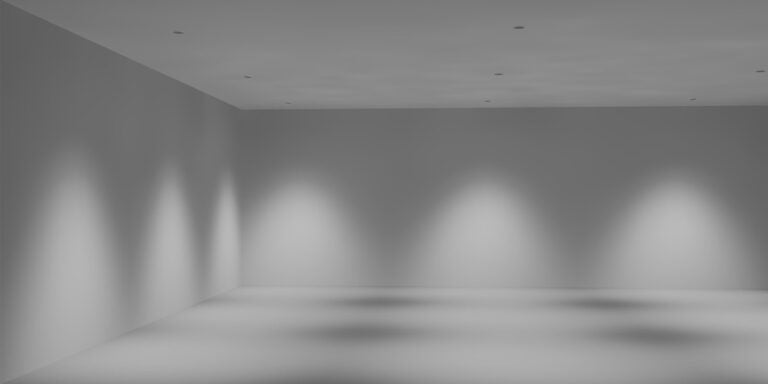

30°

40°

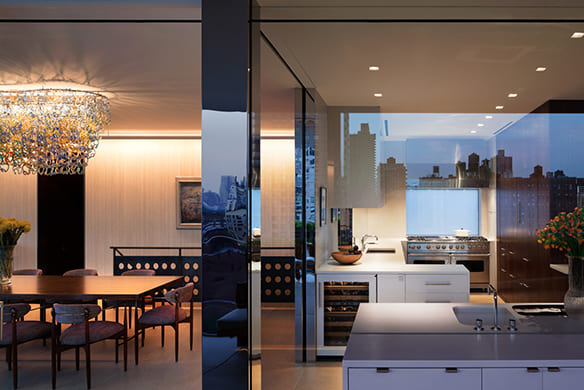

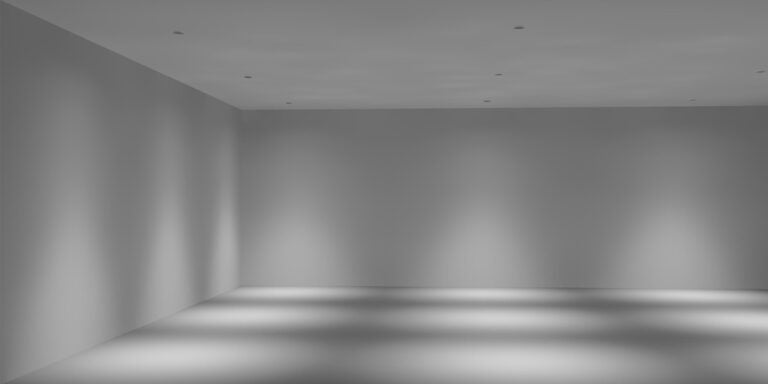

Applicable Instructions for 27° Illumination

This is an angle suitable for basic lighting， It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
