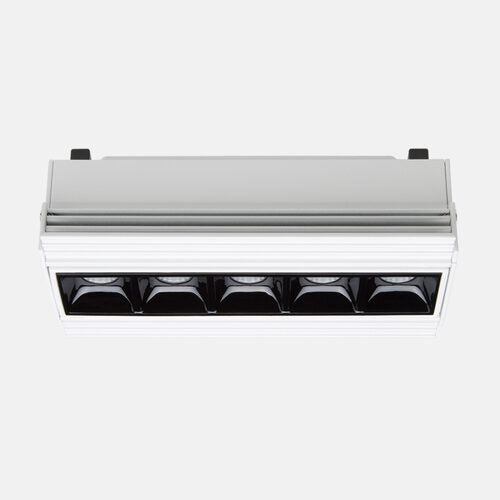

Lattice

Name: b05 lattice-trimless
Brand: LYS
Availability: InStock

01.180B05000

This LATTICE offers high performance and excellent visual comfort. Not only thanks to special anti-glare lenses, but also thanks to the product’s own low glare value UGA < 16 and color rendering RA > 90. LATTICE is usually used for basic lighting and important lighting in exhibition venues. Provides minimalistic and stylish lighting effects. It also has three beam angles and a variety of wireless adjustment methods such as BLE, TRIAC and DALI, which can meet the lighting needs of various projects.

1 1

Specification

Power：10W
Installation method：Recessed
Cut out：145*70mm
Dimming：Depending on driver
Frequency：50/60HZ
LED：SMD
Lumen：73lm/w
CCT：2700K/3000K/3500K/4000K/2700K-6000K
CRI：≥90
SDCM：＜3
Adjustibility：NO
Light distribution：Direct
UGR：＜19
Beam angle：22°/36°/45°
Protection class：IP20
Material：Aluminum
Environment temperature：-25°C~50°C
LED life Time： 35,000h~ 50,000h – L80

Se komplette oplysninger

Download

BEAM ANGLE

22°

36°

45°

Applicable Instructions for 22° Illumination

This is an angle suitable for basic lighting，It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
