Mino

01.007A12000

Mino is a suspended luminaire for accent lighting applications . Its stylish and elegant geometry and its solid body of machined aluminium define a piece of a highly decorative character and perceived high quality . Its light beam , strictly defined by a micro-reflector optimises the light beam of the LED , in order to obtain a relatively elevated illuminance at the working plane ,thanks to a remarkable utilization of the lumen gross flow.
1 1

Specification

  • 01.007A12000
  • Power：3W
  • Installation method：Recessed
  • Cut out：NO
  • Dimming：Non-DIM
  • Frequency：50/60HZ
  • LED：SMD
  • Lumen：60lm/w
  • CCT：2700K/3000K/3500K/4000K
  • CRI：≥90
  • SDCM：＜3
  • Adjustibility：355° Rotation | 90° Tilting
  • Light distribution：Direct
  • UGR：＜19
  • Beam angle：16°/24°
  • Protection class：IP20
  • Material：Aluminum
  • Environment temperature：-20°C~40°C
  • LED life Time：  35,000h~ 50,000h – L80
Se komplette oplysninger
Product icon

Download

A12 Mino
A12 Mino
A12 Mino
A12 Mino
A12 Mino
A12 Mino
A12 Mino

BEAM ANGLE

A12 Mino
A12 Mino
16°
24°

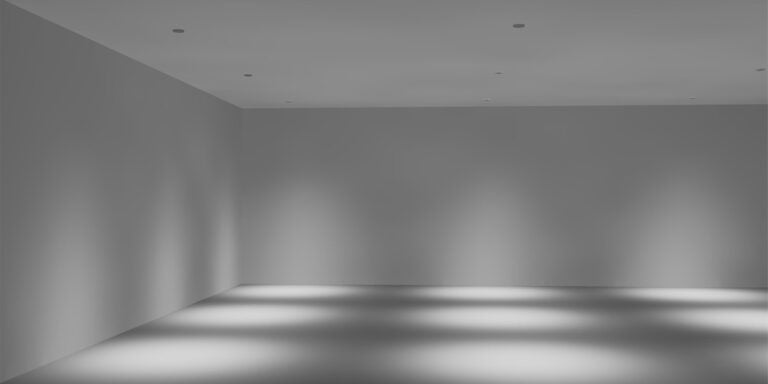

Applicable Instructions for 16° Illumination

This is an angle suitable for basic lighting，It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
