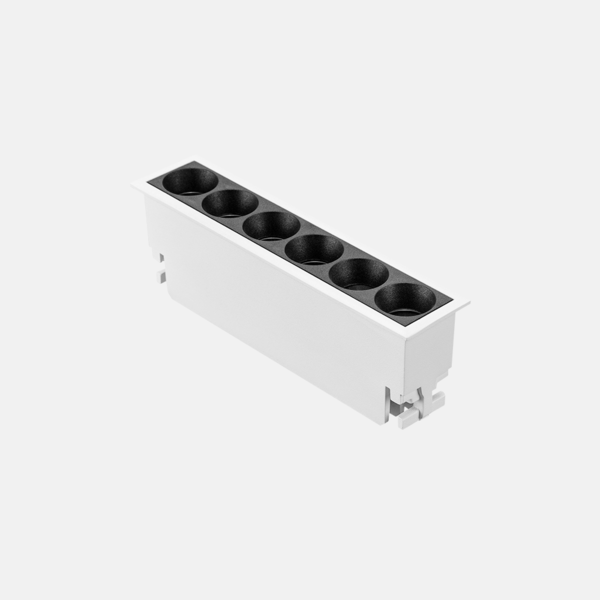

lattice mini
01.216A06000

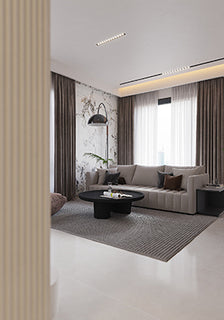

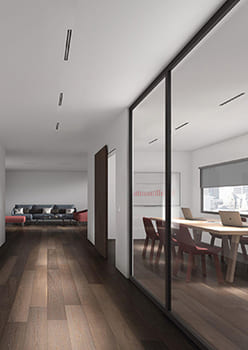

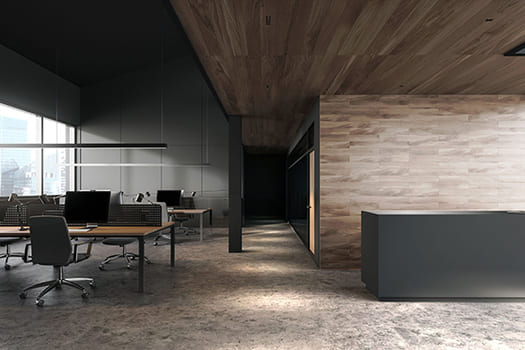

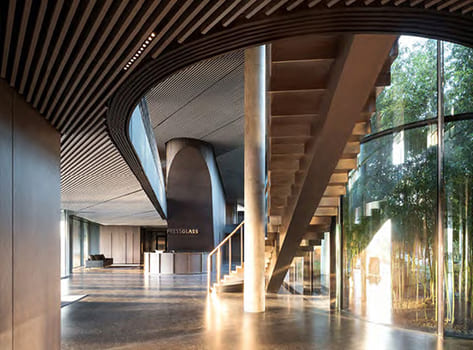

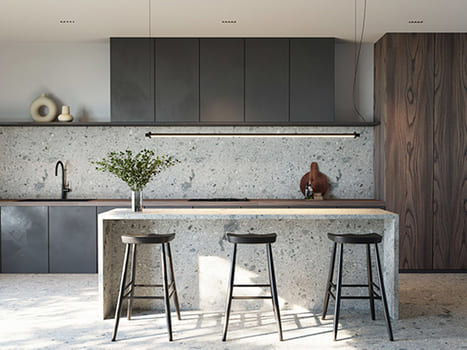

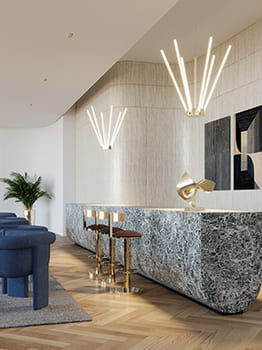

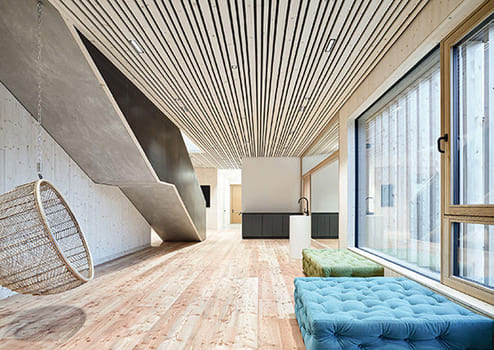

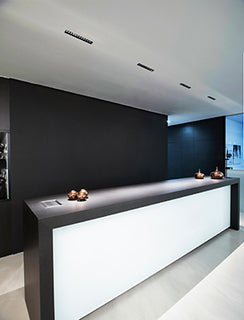

This LATTICE offers high performance and excellent visual comfort. Not only thanks to special anti-glare lenses, but also thanks to the product’s own low glare value UGA < 16 and color rendering RA > 90. LATTICE is usually used for basic lighting and important lighting in exhibition venues. Provides minimalistic and stylish lighting effects. It also has three beam angles and a variety of wireless adjustment methods such as BLE, TRIAC and DALI, which can meet the lighting needs of various projects.
1
/
af
1
Specification
- Power:10W
- Installation method:Recessed
- Cut out:117*23mm
- Dimming:Depending on driver
- Frequency:50/60HZ
- LED:SMD
- Lumen:71lm/w
- CCT:2700K/3000K/3500K/4000K/2700K-6000K
- CRI:≥90
- SDCM:<3
- Adjustibility:NO
- Light distribution:Direct
- UGR:<19
- Beam angle:19°/23°/28°/31°
- Protection class:IP20
- Material:Aluminum
- Environment temperature:-20°C~40°C
- LED life Time: 35,000h~ 50,000h – L80
