A03 Roul 10W COB Ceiling LED Light

03.183A03000

Excellent anti-glare design, high-quality constant current driver, high light efficiency performance, ingenious quality, create a good atmosphere and light.
1 2

Specification

  • 03.183A01000
  • Power：10W
  • Installation method：Ceiling
  • Cut out：NO
  • Dimming：Non-DIM / TRIAC
  • Frequency：50/60HZ
  • LED：COB
  • Lumen：79lm/w
  • CCT：2700K/3000K/3500K/4000K
  • CRI：≥90
  • SDCM：＜3
  • Adjustibility：NO
  • Light distribution：Direct
  • UGR：＜19
  • Beam angle：18°/20°/30°
  • Protection class：IP20
  • Material：Aluminum
  • Environment temperature：-20°C~40°C
  • LED life Time：  35,000h~ 50,000h – L80
Se komplette oplysninger
Product icon

Download

A03 Roul
A03 Roul
A03 Roul
A03 Roul
A03 Roul
A03 Roul

BEAM ANGLE

A03 Roul
A03 Roul
A03 Roul
18°
20°
30°

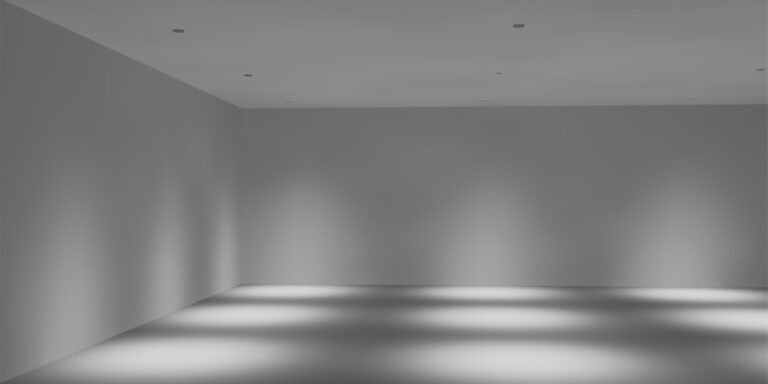

Applicable Instructions for 18° Illumination

This is an angle suitable for basic lighting，It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
