Reflex III

01.222A03000

anti-glare spotlights , 5 sizes , soft and even light , bright contrast between light and dark. Applicableto : high-end hotels , clubs , villas , etc.

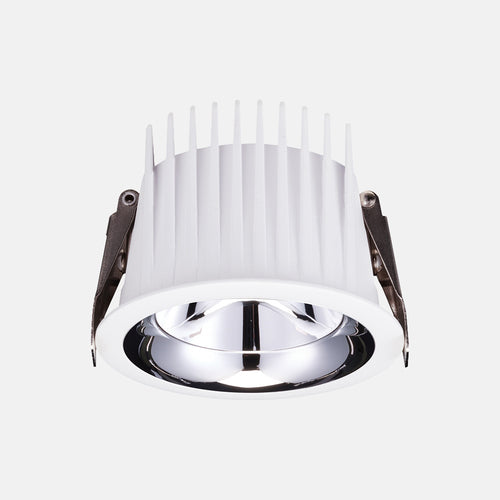

  • A04 Reflex III
1 1

Specification

  • 01.222A03000
  • Power：15W/20W
  • Installation method：Recessed
  • Cut out：φ115mm
  • Dimming：Non-DIM / TRIAC / 0/1-10V /DALI / BLE /ZIGBEE
  • Frequency：50/60HZ
  • LED：COB
  • Lumen：86lm/w
  • CCT：2700K/3000K/3500K/4000K/2700K-6000K
  • CRI：≥90
  • SDCM：＜3
  • Adjustibility：NO
  • Light distribution：Direct
  • Beam angle：18°/25°/39°/50°
  • Protection class：IP65
  • Material：Aluminum
  • Environment temperature：-20°C~40°C
  • LED life Time：  35,000h~ 50,000h – L80
Se komplette oplysninger
Product icon

Download

A03 Reflex III
A03 Reflex III
A03 Reflex III
A03 Reflex III
A03 Reflex III
A03 Reflex III
A03 Reflex III

BEAM ANGLE

A03 Reflex III
A03 Reflex III
A03 Reflex III
A03 Reflex III
16°
25°
39°
50°

Applicable Instructions for 16° Illumination

This is an angle suitable for basic lighting， It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
