A02 Hera LED ceiling light with 10W/12W COB LED, CRI ≥90, 355° rotation, 82.5° tilt, UGR<19, non-dim/TRIAC options, IP20 aluminum body.
1 1

Specification

  • 03.005A01000
  • Power：10W / 12W
  • Installation method：Ceiling
  • Cut out：NO
  • Dimming：Non-DIM / TRIAC
  • Frequency：50/60HZ
  • LED：COB
  • Lumen：79lm/w
  • CCT：2700K/3000K/3500K/4000K
  • CRI：≥90S
  • SDCM：＜3
  • Adjustibility：355° Rotation | 82.5° Tilting
  • Light distribution：Direct
  • UGR：＜19
  • Beam angle：26°
  • Protection class：IP20
  • Material：Aluminum
  • Environment temperature：-20°C~40°C
  • LED life Time：  35,000h~ 50,000h – L80
Se komplette oplysninger
Product icon

Download

A02 Hera
A02 Hera
A02 Hera
A02 Hera
A02 Hera
A02 Hera
A02 Hera
A02 Hera
A02 Hera

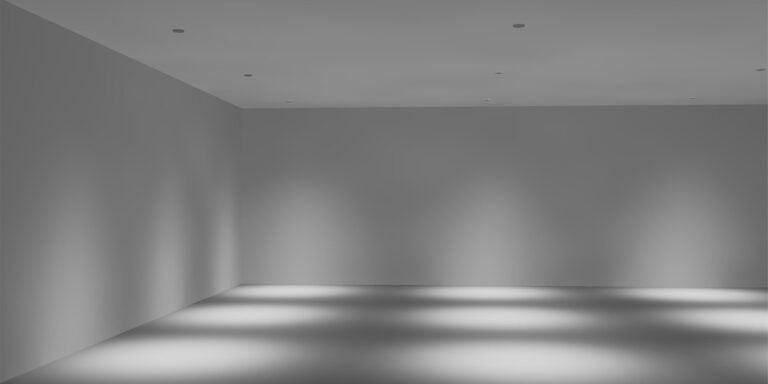

BEAM ANGLE

A02 Hera
26°

Applicable Instructions for 26° Illumination

This is an angle suitable for basic lighting. It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
