D05 Lattice 10W Ceiling LED Light

03.199A02000

Swing angle of 0-30° , horizontal rotation of 355° . Honeycomb and spread lens for different lighting effects . Different specifications optional . Classic black and white housing colors , simple high-end and fasionable.
1 1

Specification

  • 03.199A02000
  • Power：15W/20W
  • Installation method：Ceiling
  • Cut out：NO
  • Dimming：Non-DIM / TRIAC / 0/1-10V / DALI
  • Frequency：50/60HZ
  • LED：COB
  • Lumen：88lm/w
  • CCT：2700K/3000K/3500K/4000K
  • CRI：≥90
  • SDCM：＜3
  • Adjustibility：355° Rotation | 30° Tilting
  • Light distribution：Direct
  • UGR：＜19
  • Beam angle：15°/24°/36°/50°
  • Protection class：IP20
  • Material：Aluminum
  • Environment temperature：-25°C~50°C
  • LED life Time：  35,000h~ 50,000h – L80
Se komplette oplysninger
Product icon

Download

D05 Lattice 10W Ceiling LED Light
D05 Lattice 10W Ceiling LED Light
D05 Lattice 10W Ceiling LED Light
D05 Lattice 10W Ceiling LED Light
D05 Lattice 10W Ceiling LED Light
D05 Lattice 10W Ceiling LED Light

BEAM ANGLE

D05 Lattice 10W Ceiling LED Light
D05 Lattice 10W Ceiling LED Light
D05 Lattice 10W Ceiling LED Light
D05 Lattice 10W Ceiling LED Light
15°
24°
36°
50°

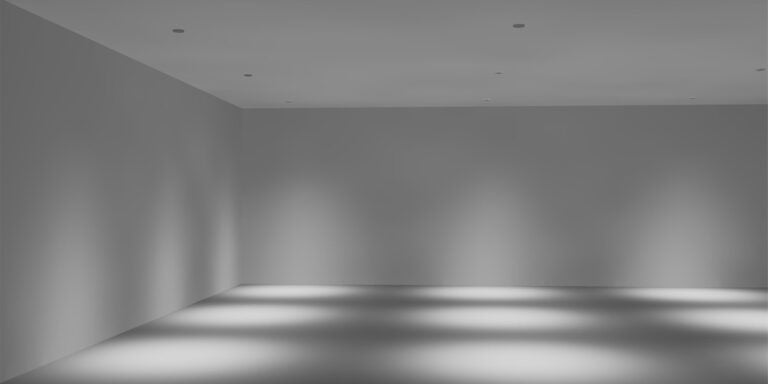

Applicable Instructions for 15° Illumination

This is an angle suitable for basic lighting，It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
