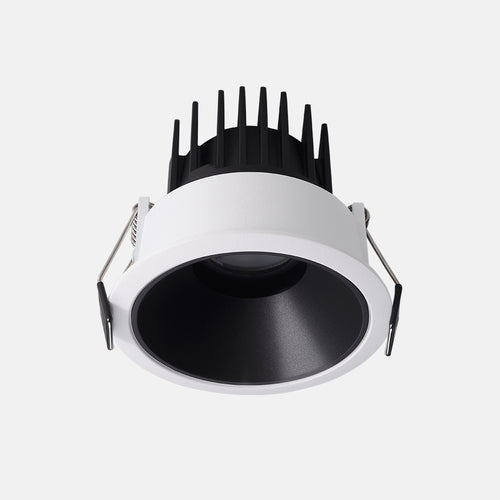

Thea

01.223A01000

It is characterized by a unique internal geometry allowing it to completely eliminate visual glare and providing beautiful diffuse lighting at the same time.
1 1

Specification

  • 01.223A01000
  • Power：8W/10W/12W
  • Installation method：Recessed
  • Cut out：φ75mm
  • Dimming：Non-DIM 、TRIAC、0/1-10V、DALI、 BLE 、ZIGBEE
  • Frequency：50/60HZ
  • LED：COB
  • Lumen：80lm/w
  • CCT：2700K/3000K/3500K/4000K/2700K-6000K
  • CRI：≥90
  • SDCM：＜3
  • Adjustibility： 24° Tilting
  • Light distribution：Direct
  • UGR：＜19
  • Beam angle：18°/24°/36°/50°
  • Protection class：IP20
  • Material：Aluminum
  • Environment temperature：-25°C~50°C
  • LED life Time：  35,000h~ 50,000h – L80
Se komplette oplysninger
Product icon

Download

A01 Thea
A01 Thea
A01 Thea
A01 Thea
A01 Thea
A01 Thea

BEAM ANGLE

A01 Thea
A01 Thea
A01 Thea
A01 Thea
A01 Thea
A01 Thea
A01 Thea
A01 Thea
18°
24°
36°
50°

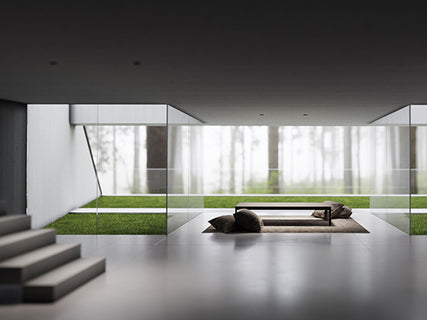

Applicable Instructions for 18° Illumination

This is an angle suitable for basic lighting， It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
