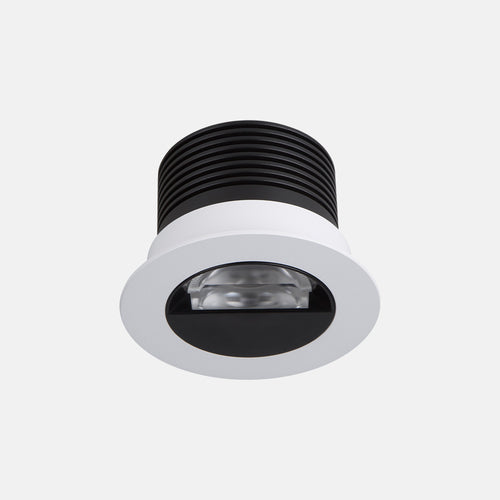

Smile

01.188A01000

Precise focusing , uniform lighting , no light spot , beautiful large light arc , depth anti dazzle, adjustable angle , creating high-quality lamps.
1 1

Specification

  • 01.188A01000
  • Power：8W/10W/12W/15W
  • Installation method：Recessed
  • Cut out：φ75mm
  • Dimming：Non-DIM 、TRIAC、0/1-10V、DALI、 BLE 、ZIGBEE
  • Frequency：50/60HZ
  • LED：COB
  • Lumen：59lm/w
  • CCT：2700K/3000K/3500K/4000K
  • CRI：≥90
  • SDCM：＜3
  • Adjustibility： NO
  • Light distribution：Direct
  • UGR：＜19
  • Beam angle：wallwasher
  • Protection class：IP20
  • Material：Aluminum
  • Environment temperature：-25°C~50°C
  • LED life Time：  35,000h~ 50,000h – L80
Se komplette oplysninger
Product icon

Download

A01 Smile
A01 Smile
A01 Smile
A01 Smile
A01 Smile
A01 Smile

BEAM ANGLE

A01 Smile
Wallwasher

Applicable Instructions for Wallwasher Illumination

This is an angle suitable for basic lighting. It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
