01.189A01000

he product is suitable for relatively humid environments such as kitchens , bathrooms bathing rooms , swimming pools , etc . It has good waterproof performance and the protection level is IP65.
1 1

Specification

  • 01.189A01000
  • Power：8W/10W
  • Installation method：Recessed
  • Cut out：φ75mm
  • Dimming：Non-DIM / TRIAC / 0/1-10V /DALI / BLE /ZIGBEE
  • Frequency：50/60HZ
  • LED：COB
  • Lumen：78lm/w
  • CCT：2700K/3000K/3500K/4000K
  • CRI：≥90
  • SDCM：＜3
  • Adjustibility：NO
  • Light distribution：Direct
  • Beam angle：17°/19°/33°/56°/60°
  • Protection class：IP65
  • Material：Aluminum
  • Environment temperature：-20°C~40°C
  • LED life Time：  35,000h~ 50,000h – L80
Se komplette oplysninger
Product icon

Download

A01 RO
A01 RO
A01 RO
A01 RO
A01 RO
A01 RO

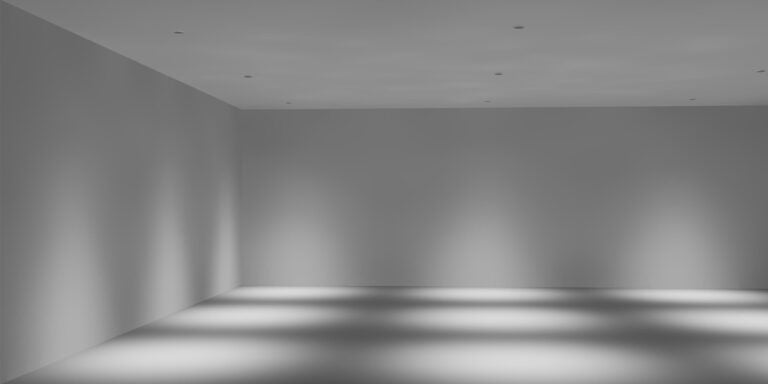

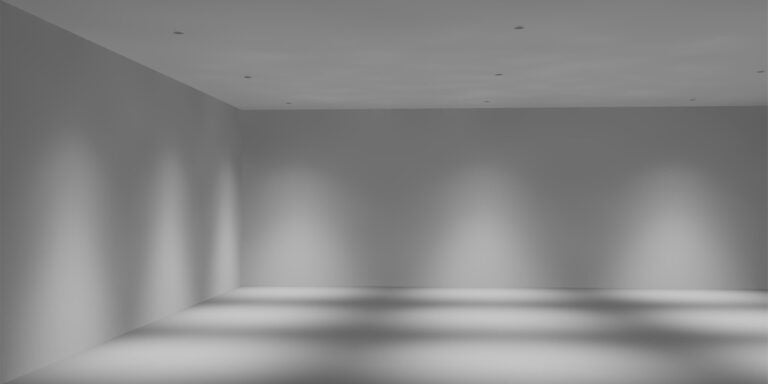

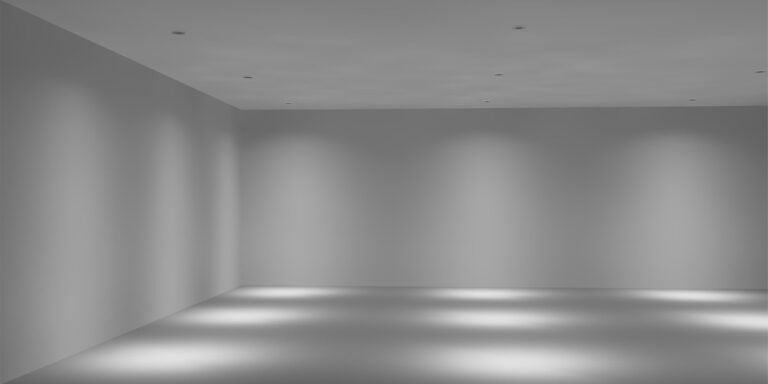

BEAM ANGLE

A01 RO
A01 RO
A01 RO
A01 RO
17°
19°
33°
56°
60°

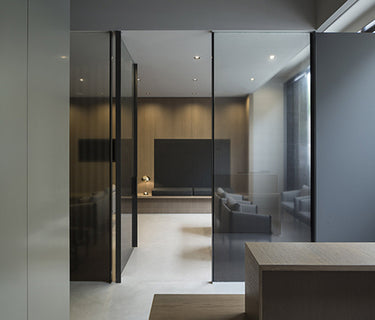

Applicable Instructions for 17° Illumination

This is an angle suitable for basic lighting， It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
