Bio

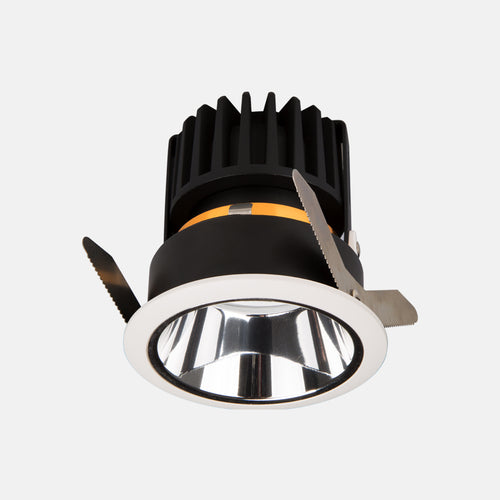

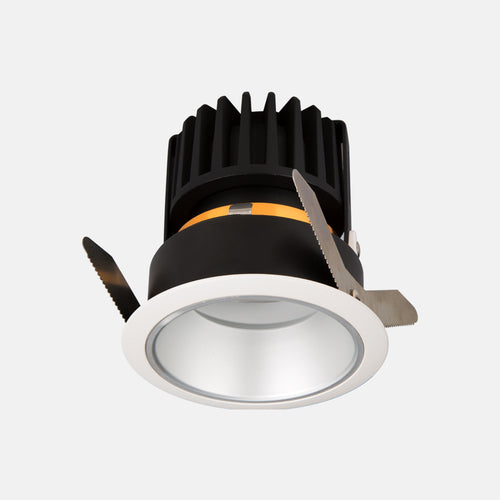

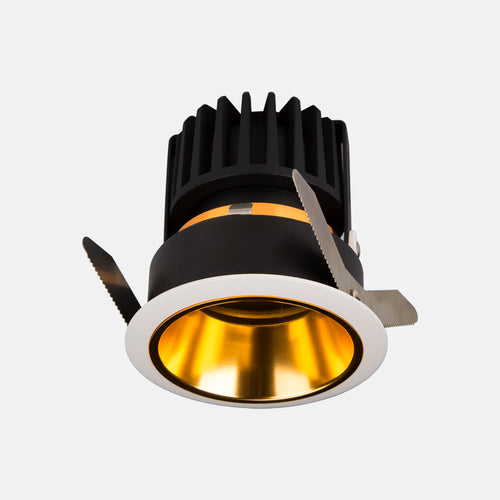

01.171A01

Rich appearance colors for your choice , Suitable for avariety of space lighting.
1 3

Specification

  • Power：8W/10W
  • Installation method：Recessed
  • Cut out：φ75mm
  • Dimming：Non-DIM 、TRIAC、0/1-10V、DALI、 BLE 、ZIGBEE
  • Frequency：50/60HZ
  • LED：COB
  • Lumen：72lm/w
  • CCT：2700K/3000K/3500K/4000K
  • CRI：≥90
  • SDCM：＜3
  • Adjustibility：20° Tilting
  • Light distribution：Direct
  • UGR：＜19
  • Beam angle：27°/30°/40°
  • Protection class：IP20
  • Material：Aluminum
  • Environment temperature：-25°C~50°C
  • LED life Time：  35,000h~ 50,000h – L80
Se komplette oplysninger
Product icon

Download

A01
A01
A01
A01
A01
A01
A01
A01
A01
A01
A01
A01
A01
A01

BEAM ANGLE

A01
A01
A01
27°
30°
40°

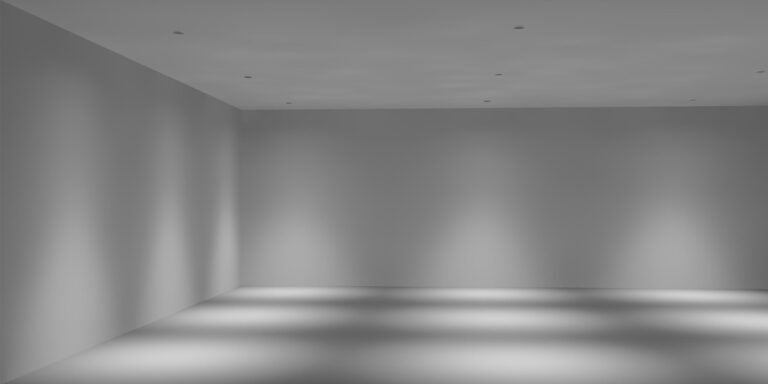

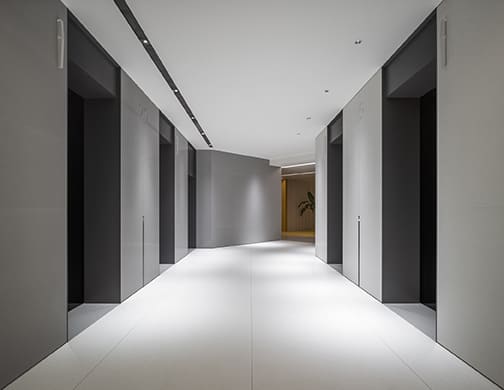

Applicable Instructions for 27° Illumination

This is an angle suitable for basic lighting， It is used in general lighting scenarios, and the application scenarios are: office area, store, villa, residence, etc., the same type of life scene.
